Product Details

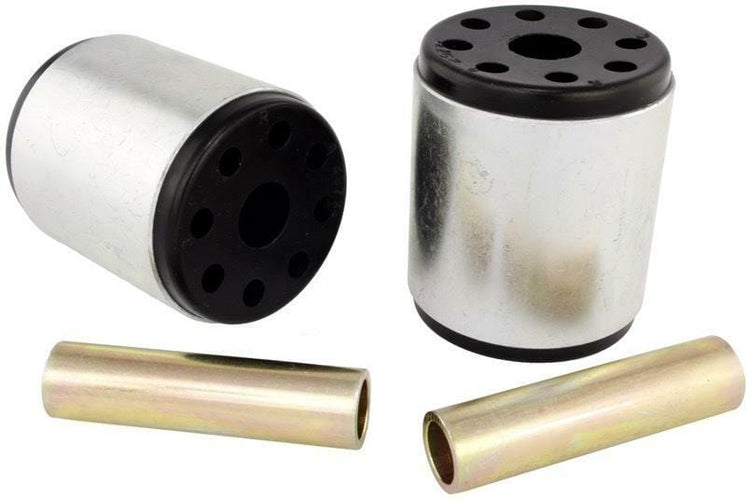

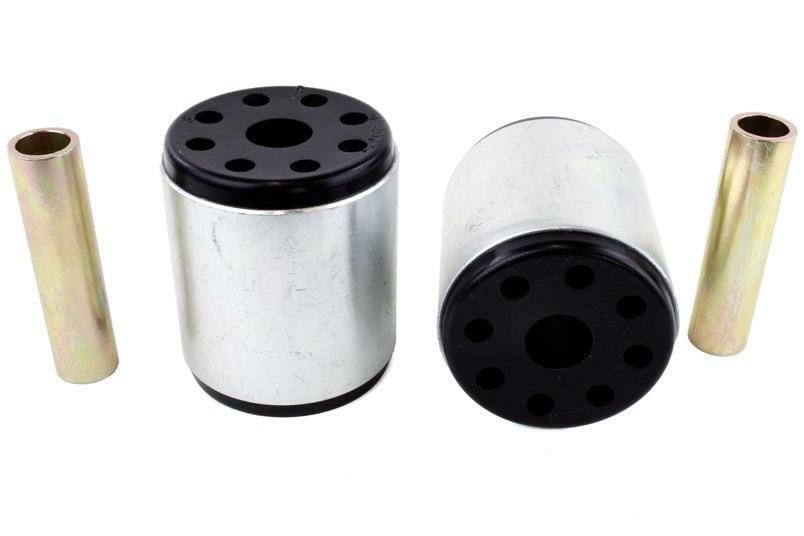

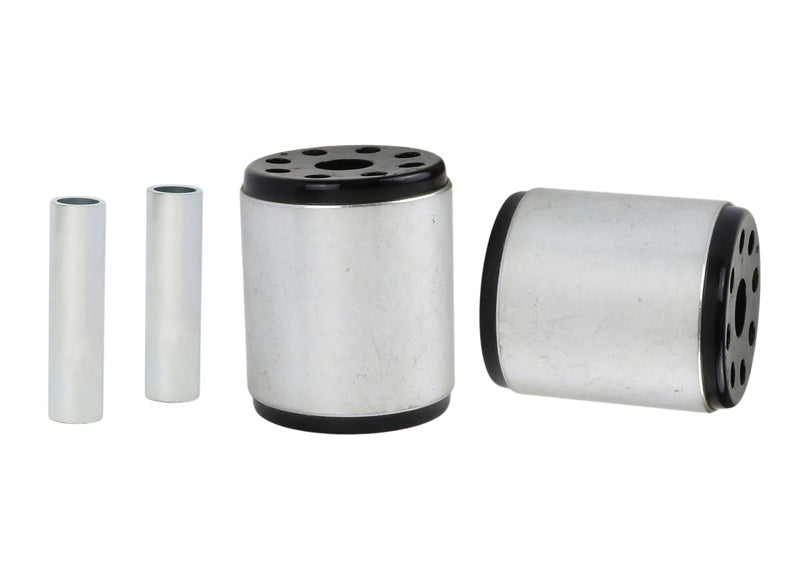

This Whiteline Front Lower Radius Arm Bushing fits the 2000-2006 BMW X5 4.4i (E53). Position: front. Whiteline part number: W82977. Included: 2 shell bushings and 2 tubes.

Every time the wheel moves, the radius arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a moderate job of about 2 hours. An alignment is required after installation. To go with it on the BMW X5, see 16mm Adjustable Front Camber Bolts.

Features

  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Material: Polyurethane construction.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number W82977
Part Name Radius Arm Bushing
Vehicle 2000-2006 BMW X5 4.4i
Drivetrain AWD
Chassis Code E53
Bushing Color Black
Bushing Inside Diameter 19 mm
Bushing Length 76 mm
Bushing Material Polyurethane
Bushing Outside Diameter 66.2 mm
Bushing Quantity 2
Durometer 85
Grade Type Regular
Hardware Included No
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2000BMWX5AWD
2001BMWX5AWD
2002BMWX5AWD
2003BMWX5AWD
2004BMWX5AWD
2005BMWX5AWD
2006BMWX5AWD
