Product Details

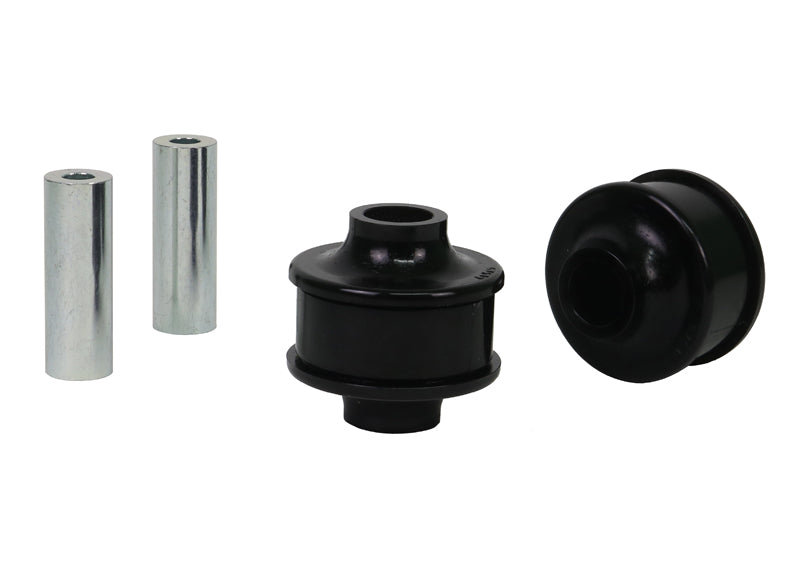

This Whiteline Front Lower Radius Arm Bushing (Standard Repl.) fits the 2008-2013 BMW 135i 1 Series. It is listed for the E82/E88 chassis. Included: 2 bushings, 2 tubes, an install guide, and grease. It goes on the front of the vehicle. Part number W83391.
When a radius arm bushing fails, the wheel is no longer held where it should be under braking and over bumps. This is a like-for-like replacement: it restores the original pivot behavior and ride comfort rather than changing them.
Expect a moderate job of about 1.5 hours. Get the car aligned once it is back on the ground. To go with it on the 135i 1 Series, see Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Rear Subframe Mount Bushing.
Features
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Finish: A powder coated finish resists corrosion and wear.
- Material: The part is made of polyurethane.
- Install guide: Instructions for fitting are packed in the box.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
| Part Number | W83391 |
| Part Name | Radius Arm Bushing |
| Vehicle | 2008-2013 BMW 135i 1 Series |
| Chassis Code | E82/E88 |
| Bushing Color | Black |
| Bushing Inside Diameter | 25.2 mm |
| Bushing Length | 76.4 mm |
| Bushing Material | Polyurethane |
| Bushing Outside Diameter | 70.7 mm |
| Bushing Quantity | 2 |
| Durometer | 85 |
| Grade Type | Regular |
| Hardware Included | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1.5 |
| Kit Contents | 2 Bushings, 2 Tubes, Install Guide, Grease |
| Material | Polyurethane |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
