Product Details

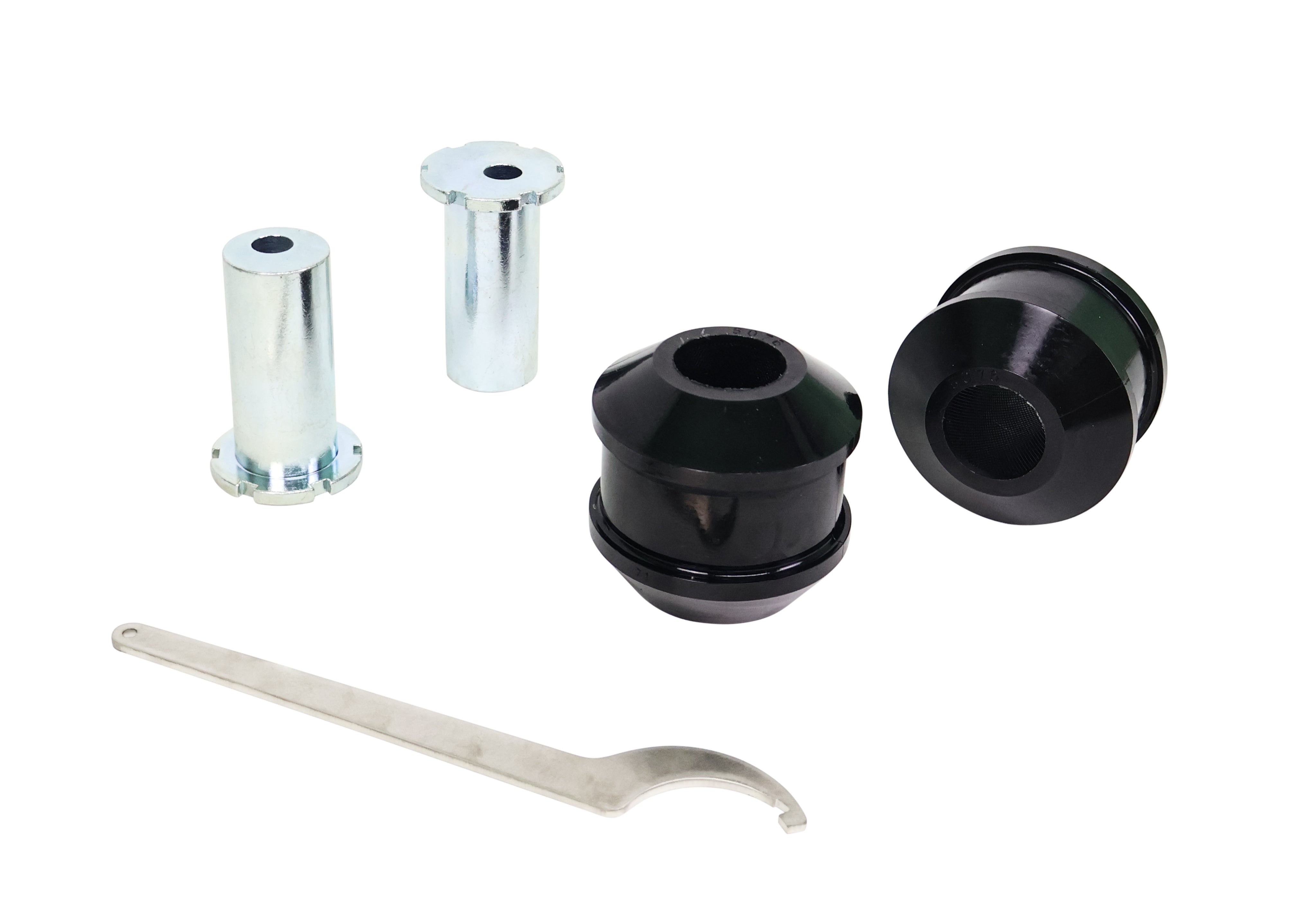

This Whiteline Front Lower Radius Arm Bushing fits the 2014-2020 BMW 220i 2 Series. Part number KCA430. It is listed for the F22/F23 chassis. This part is for the front of the vehicle. Application note: Adds +/- 0.5 degrees Caster. Included: 2 bushings and 2 tubes.
This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.
Expect a moderate job of about 3 hours. Plan on a wheel alignment afterward. Working on the same car? We also list Adjustable Rear Sway Bar Link and Front Sway Bar Link Assembly for the 220i 2 Series.
Features
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Install guide: Instructions for fitting are packed in the box.
- Material: The part is made of polyurethane.
- Finish: The metal parts are powder coated for durability.
- Caster: Adds caster for steadier steering and better tire contact in roll.
Specifications
| Part Number | KCA430 |
| Part Name | Radius Arm Bushing |
| Vehicle | 2014-2020 BMW 220i 2 Series |
| Chassis Code | F22/F23 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 70.7 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Performance |
| Inside Diameter | 12.2 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 70.7 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.5 Deg Caster |
Fitment for 220i radius arm bushings
Fits the 2014-2020 BMW 220i 2 Series. Each model year is listed below.
