Product Details

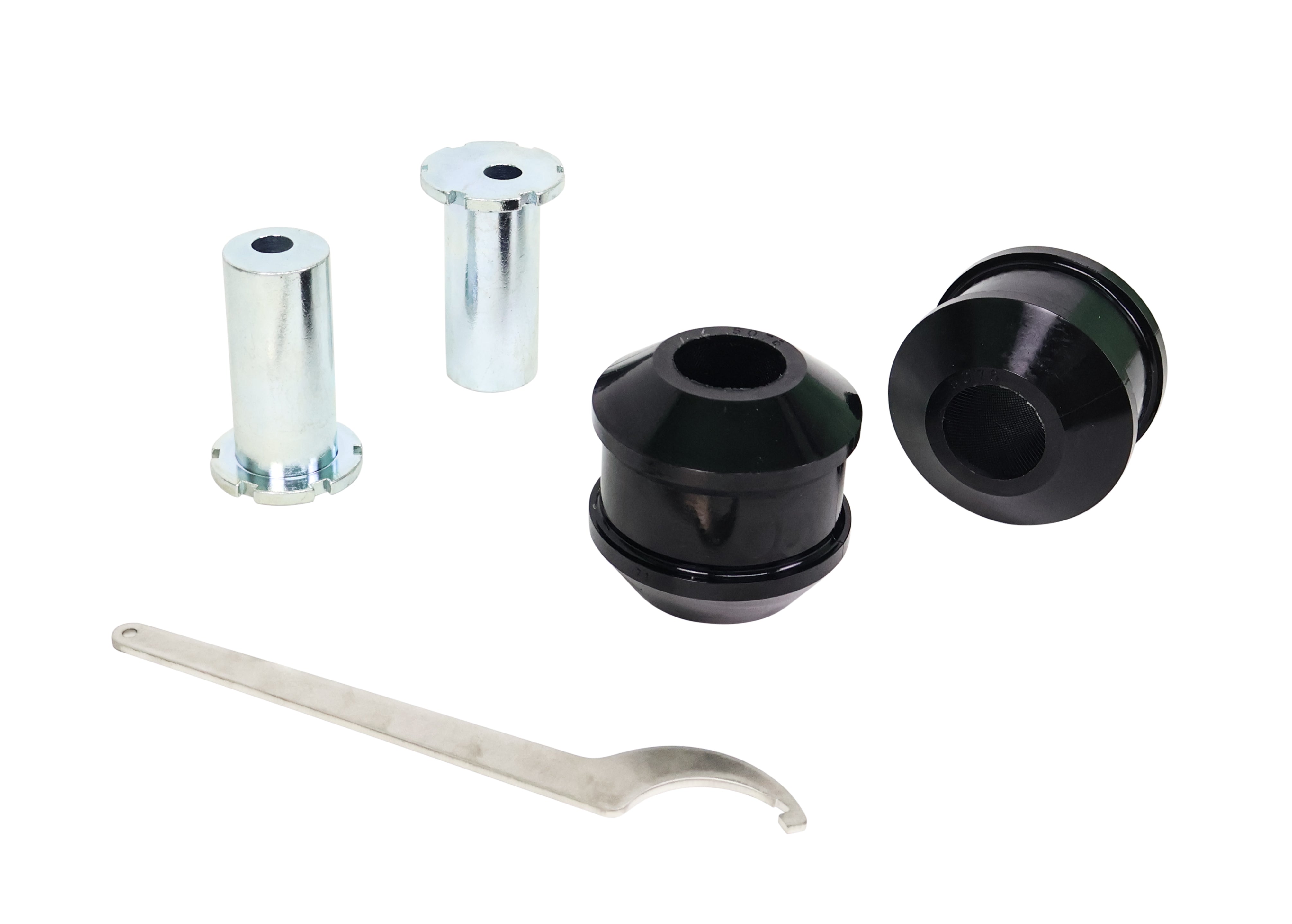

This Whiteline Front Lower Radius Arm Bushing fits the 2008-2013 BMW 135i 1 Series (E82/E88). Application note: Adds +/- 0.5 degrees Caster. It goes on the front of the vehicle. The kit contains 2 bushings and 2 tubes. Chassis code: E82/E88. Order it as part number KCA430.

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. Other Whiteline parts we list for the 135i 1 Series: Adjustable Front Sway Bar Link, Rear Subframe Mount Bushing, and Heavy Duty 20mm Rear Sway Bar.

Features

  • Material: Polyurethane construction.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Install guide: Whiteline packs an install guide with it.
  • Caster: Adds caster for steadier steering and better tire contact in roll.
Specifications
Part Number KCA430
Part Name Radius Arm Bushing
Vehicle 2008-2013 BMW 135i 1 Series
Chassis Code E82/E88
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 70.7 mm
Bushing Quantity 2 Bushings
Grade Type Performance
Inside Diameter 12.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 70.7 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +/- 0.5 Deg Caster

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008BMW135iRWDAdds +/- 0.5 Deg Caster
2009BMW135iRWDAdds +/- 0.5 Deg Caster
2010BMW135iRWDAdds +/- 0.5 Deg Caster
2011BMW135iRWDAdds +/- 0.5 Deg Caster
2012BMW135iRWDAdds +/- 0.5 Deg Caster
2013BMW135iRWDAdds +/- 0.5 Deg Caster
