Product Details

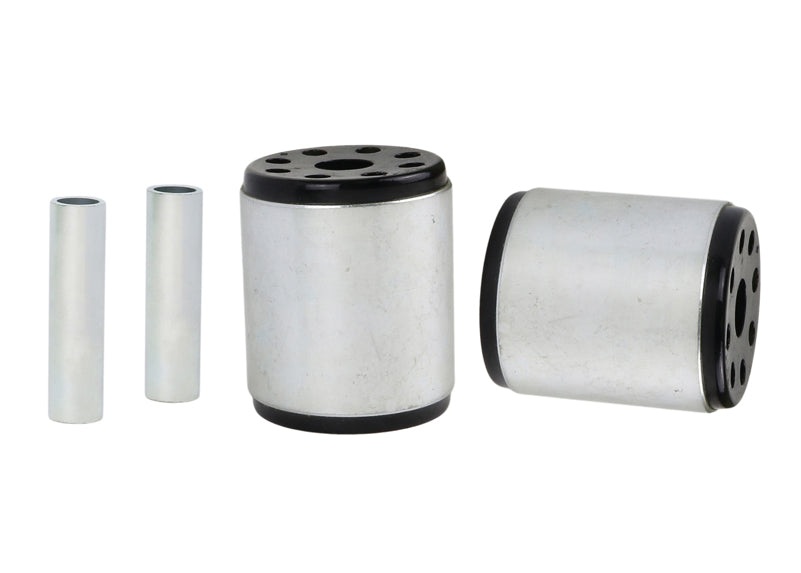

This Whiteline Front Lower Radius Arm Bushing fits the 2001-2002 BMW 525i 5 Series (E39). Included: 2 shell bushings and 2 tubes. Position: front. Order it as part number W82977.

A radius arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as moderate and lists about 2 hours. Get the car aligned once it is back on the ground. To go with it on the 525i 5 Series, see Rear Sway Bar Mount Bushing Kit and Front Sway Bar Mount Bushing.

Features

  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
Part Number W82977
Part Name Radius Arm Bushing
Vehicle 2001-2002 BMW 525i 5 Series
Chassis Code E39
Bushing Color Black
Bushing Inside Diameter 19 mm
Bushing Length 76 mm
Bushing Material Polyurethane
Bushing Outside Diameter 66.2 mm
Bushing Quantity 2
Durometer 85
Grade Type Regular
Hardware Included No
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001BMW525iRWD
2002BMW525iRWD
