Product Details

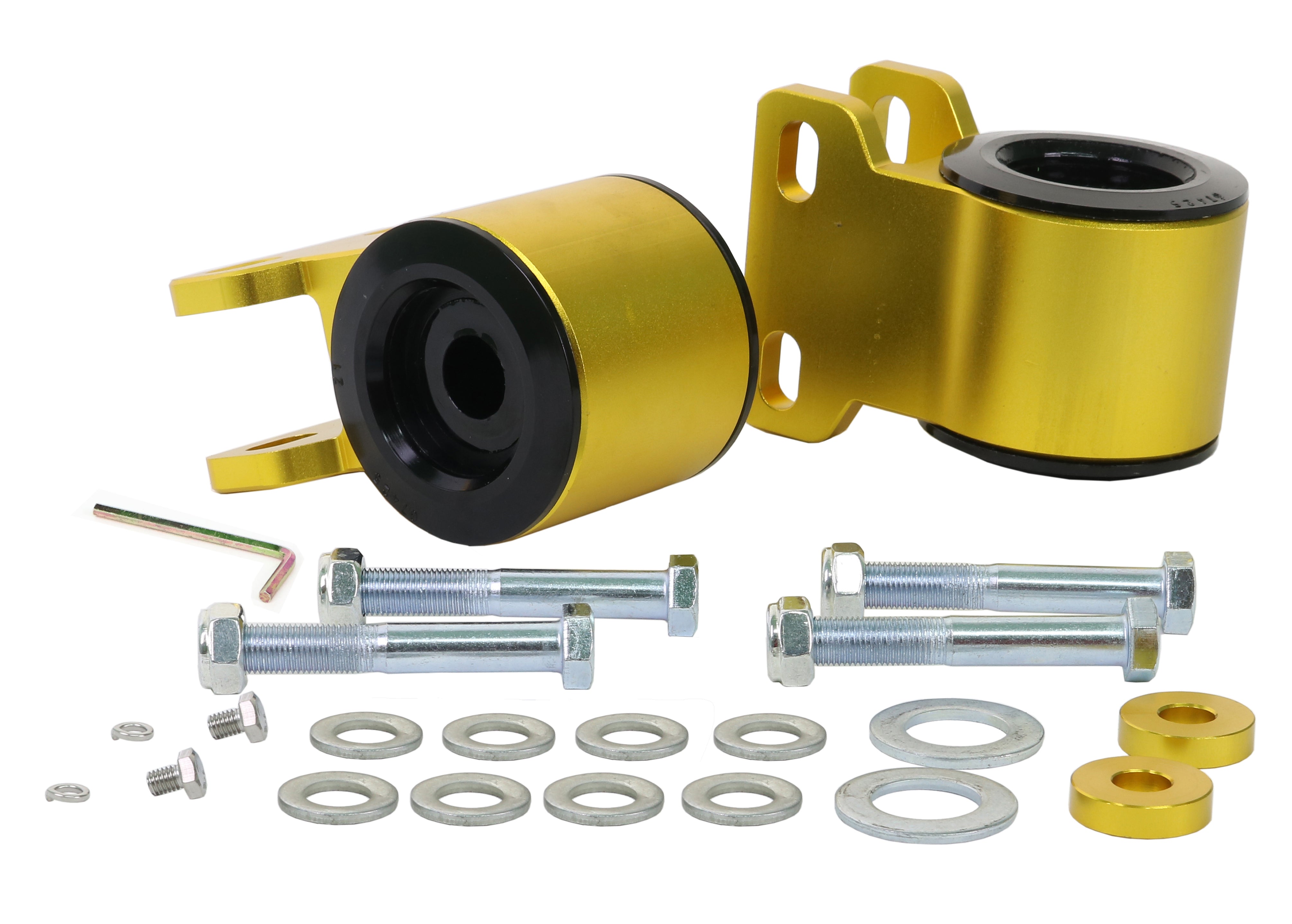

This Whiteline Front Lower Inner Rear Control Arm Bushing Kit - Double Offset fits the 2005-2011 Volvo V50 (P1). Part number KCA428. Whiteline's note for this fit: Adds .5 degrees caster anti-lift. This part is for the front of the vehicle. In the box: 2 housings, 2 bushings, 4 bolts, 2 spacers, 10 washers, and 2 screws.
Caster is the forward or backward lean of the steering axis, and more positive caster generally helps stability and steering return. This control arm bushing is made to add positive caster and alter anti-dive geometry, using a bushing swap rather than a major rebuild.
Installation is rated difficult, with about 3 hours of work listed. Get the car aligned once it is back on the ground. Working on the same car? We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link for the Volvo V50.
Features
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Material: Polyurethane construction.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Hardware: Also in the box: mounting hardware.
- Install guide: Whiteline packs an install guide with it.
Specifications
| Part Number | KCA428 |
| Part Name | Control Arm Bushings |
| Vehicle | 2005-2011 Volvo V50 |
| Chassis Code | P1 |
| Drivetrain | AWD/FWD |
| Bushing 1 Inner Diameter | 21.5 mm |
| Bushing 1 Length | 51 mm |
| Bushing 1 Outer Diameter | 32 mm |
| Bushing 2 Inner Diameter | 32.3 mm |
| Bushing 2 Length | 80.5 mm |
| Bushing 2 Outer Diameter | 65.3 mm |
| Bushing Quantity | 2 |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Housings, 2 Bushings, 4 Bolts, 2 Spacers, 10 Washers, 2 Screws |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Outside Diameter | 32 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds .5deg caster anti-lift |
