Product Details

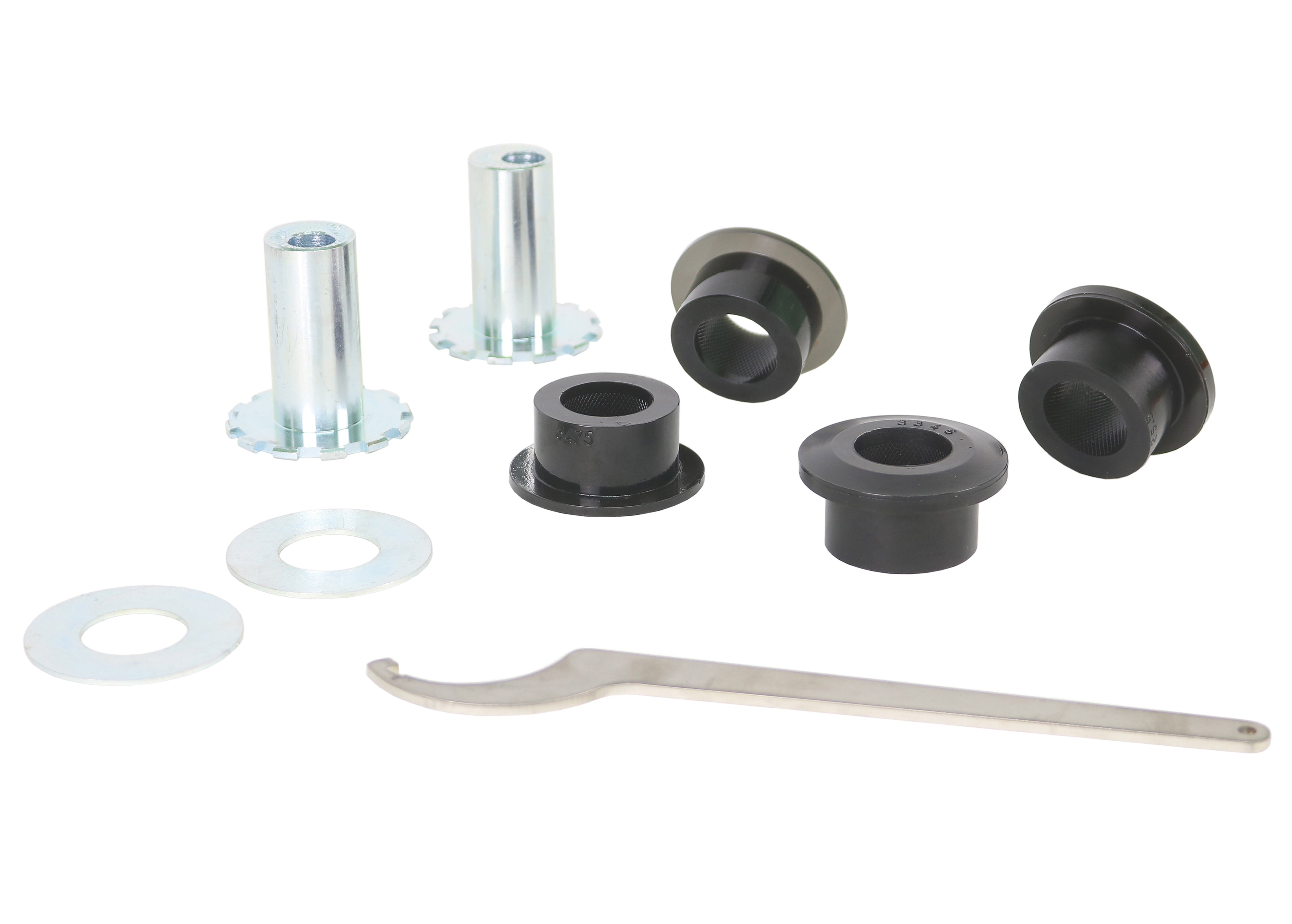

This Whiteline Front Lower Inner Front Control Arm Bushing Kit - Double Offset fits the 2006-2014 Volkswagen Golf/GTI. It goes on the front of the vehicle. The kit contains 4 bushings, 2 washers, 2 tubes, 1 spanner, and 1 grease. It is listed for the PQ35 chassis. Part number KCA538. Whiteline's note for this fit: On car adjustable +/- 0.5 degrees camber.
Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.
Whiteline rates the install as difficult and lists about 2 hours. Plan on a wheel alignment afterward. To go with it on the Golf/GTI, see Adjustable Rear Upper Control Arm Set, Adjustable Sway Bar Vehicle Link Kit, and Rear Upper Outer Control Arm Bushing Kit.
Features
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Install guide: Whiteline packs an install guide with it.
- Material: The part is made of polyurethane.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
| Part Number | KCA538 |
| Part Name | Control Arm Bushings |
| Vehicle | 2006-2014 Volkswagen Golf/GTI |
| Chassis Code | PQ35 |
| Drivetrain | FWD |
| Bushing 1 Inner Diameter | 23.8 mm |
| Bushing 1 Outer Diameter | 37 mm |
| Bushing 2 Inner Diameter | 23.8 mm |
| Bushing 2 Outer Diameter | 37 mm |
| Bushing Quantity | 4 |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Bushings, 2 Washers, 2 Tubes, 1 Spanner, 1 Grease |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | On car adjustable +/- 0.5 degree camber |
