Product Details

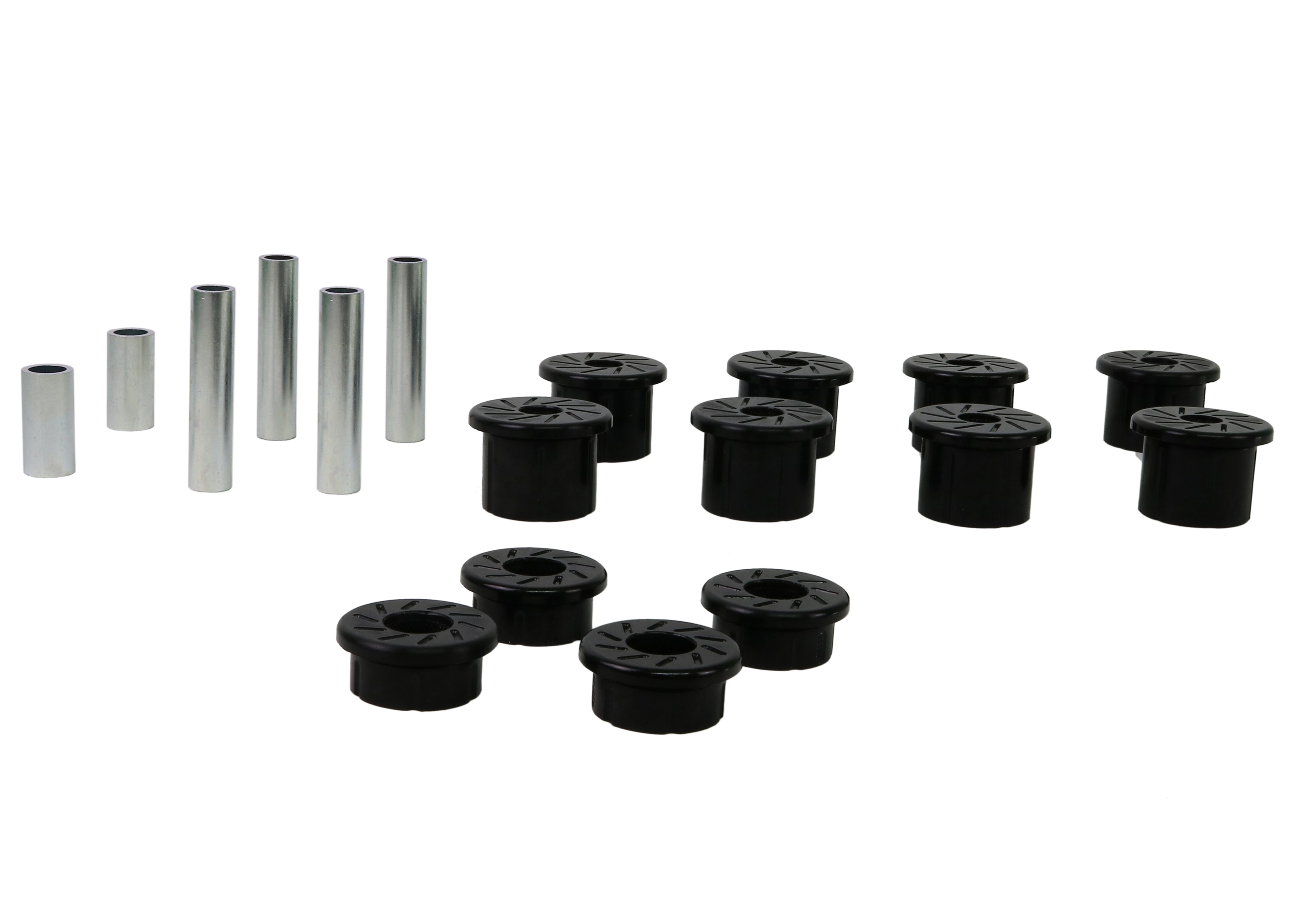

This Whiteline Front Leaf Spring and Shackle Bushing Kit fits the 1980-1997 Ford F-250. Position: front. You receive 12 bushings, 6 tubes, and grease. Chassis code: F-Series. Part number W73815.
On a leaf-sprung vehicle the spring eyes and shackles pivot on bushings, and they take the movement every time the axle moves. Worn rubber lets the axle shift and clunk, and heavy loads speed that up.
Whiteline rates the install as moderate and lists about 2 hours. No alignment is needed afterward. To go with it on the F-250, see Front Sway Bar Washer Kit, Body Mount Bushing Kit, and Front Shock Absorber Upper Bushing (Koni Shocks Only).
Features
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Install guide: Written install instructions are included with the part.
Specifications
| Part Number | W73815 |
| Part Name | Leaf Spring Bushings |
| Vehicle | 1980-1997 Ford F-250 |
| Chassis Code | F-Series |
| Bushing Color | Black |
| Bushing Outside Diameter | 50.5 mm |
| Bushing Outside Diameter | 43 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 12 Bushings, 6 Tubes, Grease |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | - |
