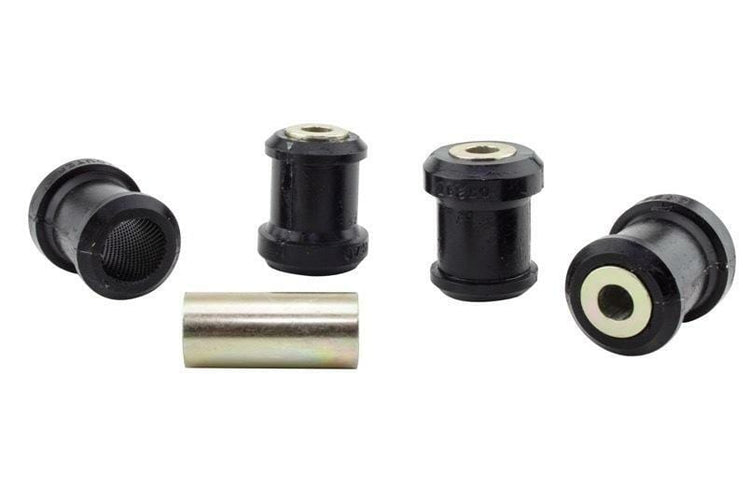

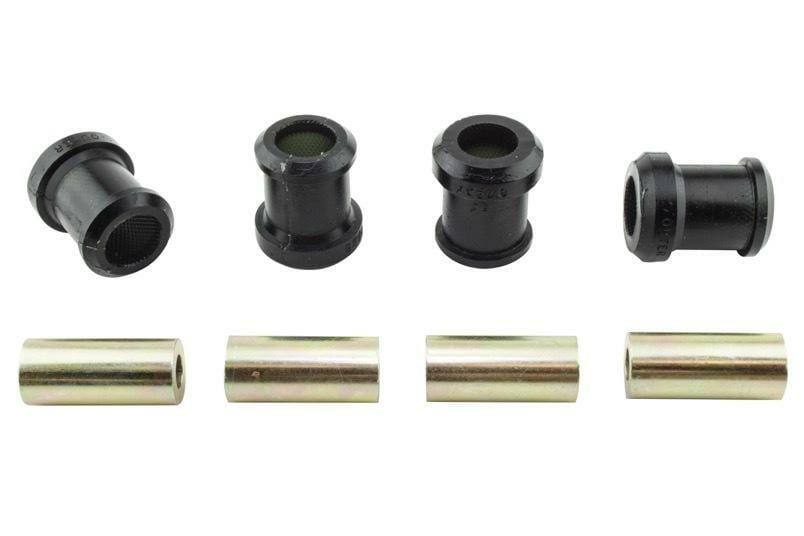

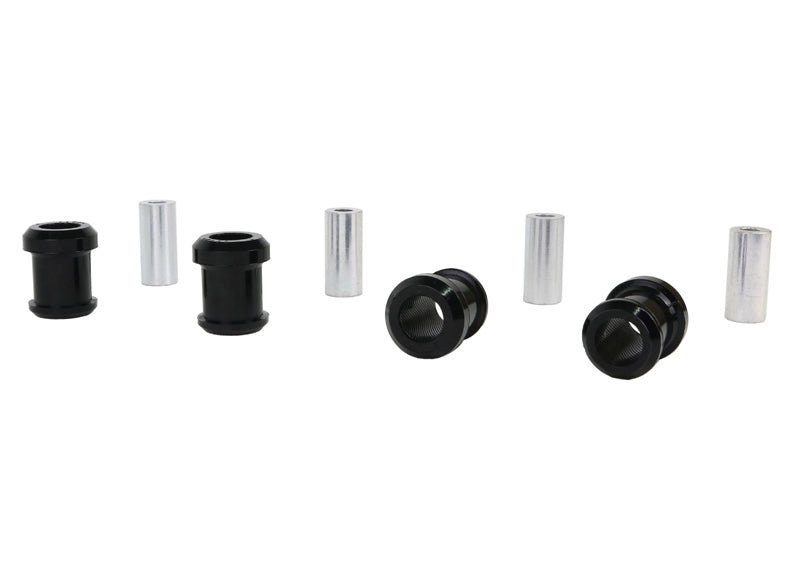

This Whiteline Front Upper Control Arm Bushing Kit (Standard Repl.) fits the 2009-2011 Mazda RX-8 R3 (SE3P). Order it as part number W53415. You receive 4 bushings and 4 tubes. This part is for the front of the vehicle. Application note: Standard Replacement.

When a control arm bushing fails, the wheel is no longer held where it should be under braking and over bumps. This is a like-for-like replacement: it restores the original pivot behavior and ride comfort rather than changing them.

Expect a moderate job of about 3 hours. Plan on a wheel alignment afterward. To go with it on the RX-8, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Material: Made from polyurethane.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Finish: A powder coated finish resists corrosion and wear.
Specifications
Part Number W53415
Part Name Control Arm Bushing
Vehicle 2009-2011 Mazda RX-8 R3
Chassis Code SE3P
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.1 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009MazdaRX-8RWDStandard Replacement
2010MazdaRX-8RWDStandard Replacement
2011MazdaRX-8RWDStandard Replacement
