Product Details

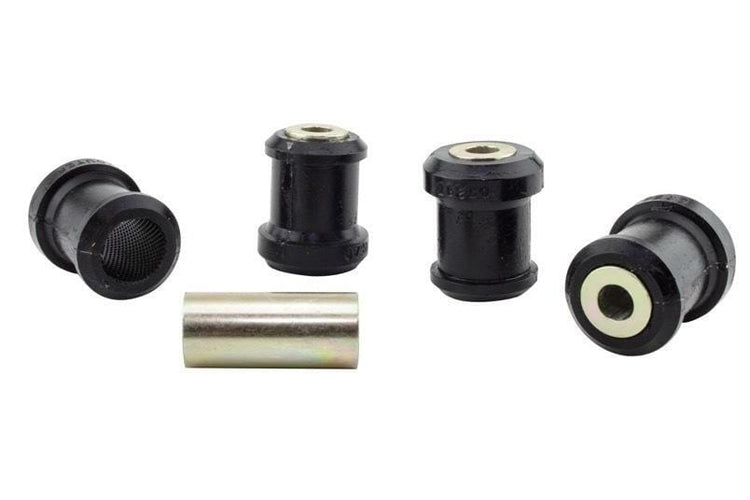

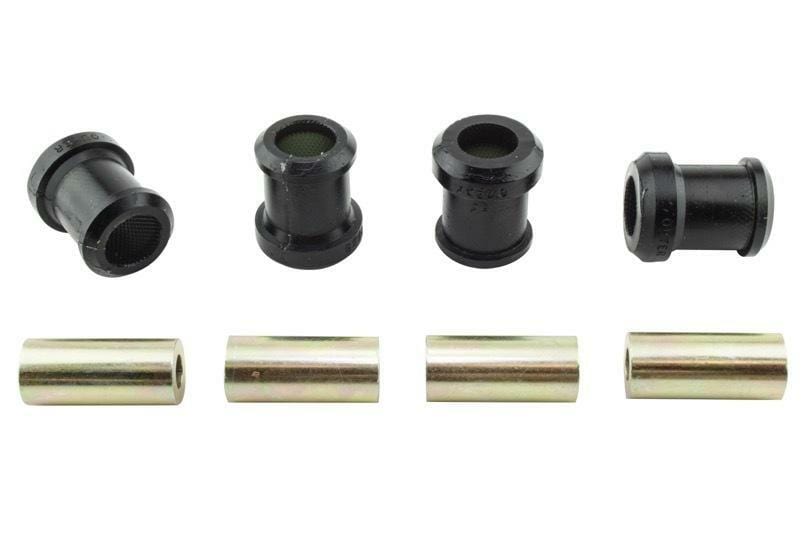

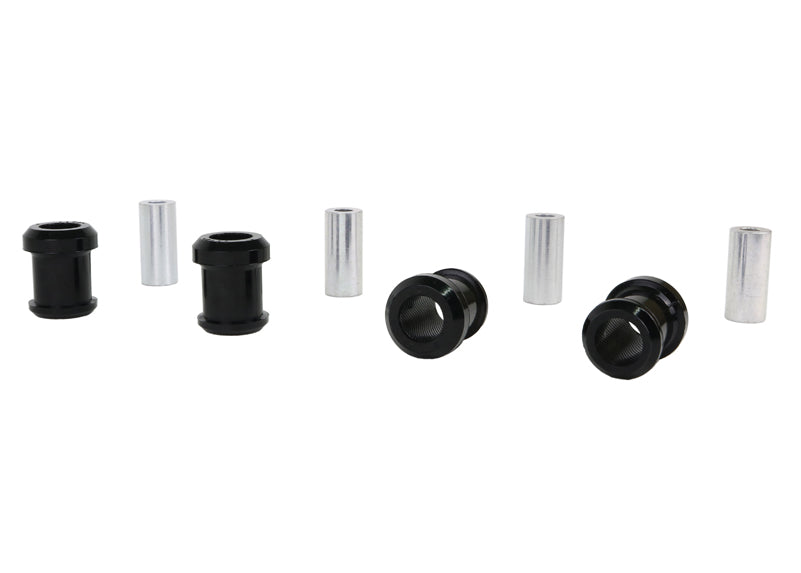

This Whiteline Front Upper Control Arm Bushing Kit (Standard Repl.) fits the 2008-2011 Mazda RX-8 Grand Touring, Sport (SE3P). In the box: 4 bushings and 4 tubes. It goes on the front of the vehicle. Order it as part number W53415. Application note: Standard Replacement.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit for the RX-8.

Features

  • Material: Polyurethane construction.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
Part Number W53415
Part Name Control Arm Bushing
Vehicle 2008-2011 Mazda RX-8 Grand Touring, Sport
Chassis Code SE3P
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.1 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008MazdaRX-8RWDStandard Replacement
2009MazdaRX-8RWDStandard Replacement
2010MazdaRX-8RWDStandard Replacement
2011MazdaRX-8RWDStandard Replacement
