Product Details

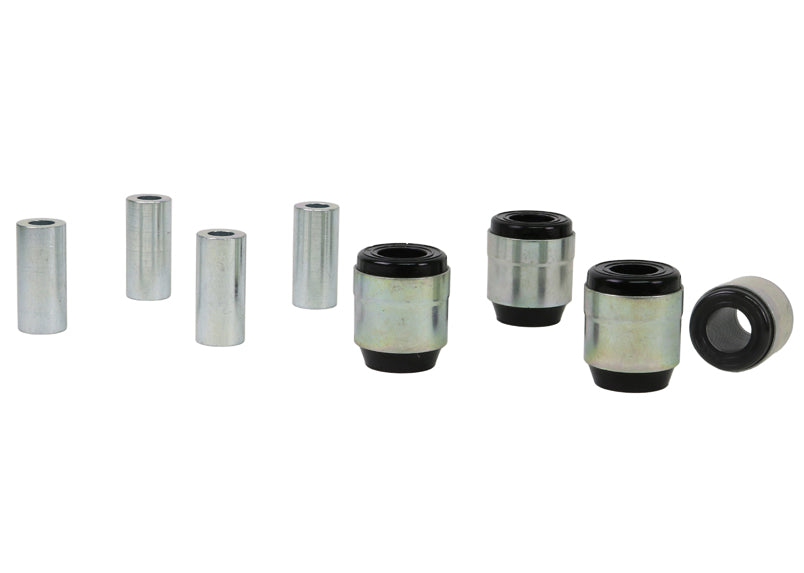

This Whiteline Front Upper Control Arm Bushing (Standard Repl.) fits the 2006-2007 Dodge Charger Base (LX). Position: front. Whiteline's note for this fit: Standard Replacement. The kit contains 4 shell bushings and 4 tubes. Order it as part number W53337.
Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.
Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. We also list Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Rear Subframe Mount Bushing for the Charger.
Features
- Install guide: Whiteline packs an install guide with it.
- Material: Polyurethane construction.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Finish: Powder coating covers the metal for protection against chips and rust.
Specifications
| Part Number | W53337 |
| Part Name | Control Arm Bushing |
| Vehicle | 2006-2007 Dodge Charger Base |
| Drivetrain | RWD/AWD |
| Chassis Code | LX |
| Bushing 1 Inner Diameter | 14.2 mm |
| Bushing 1 Outer Diameter | 51.5 mm |
| Bushing 2 Outer Diameter | 50 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
