Product Details

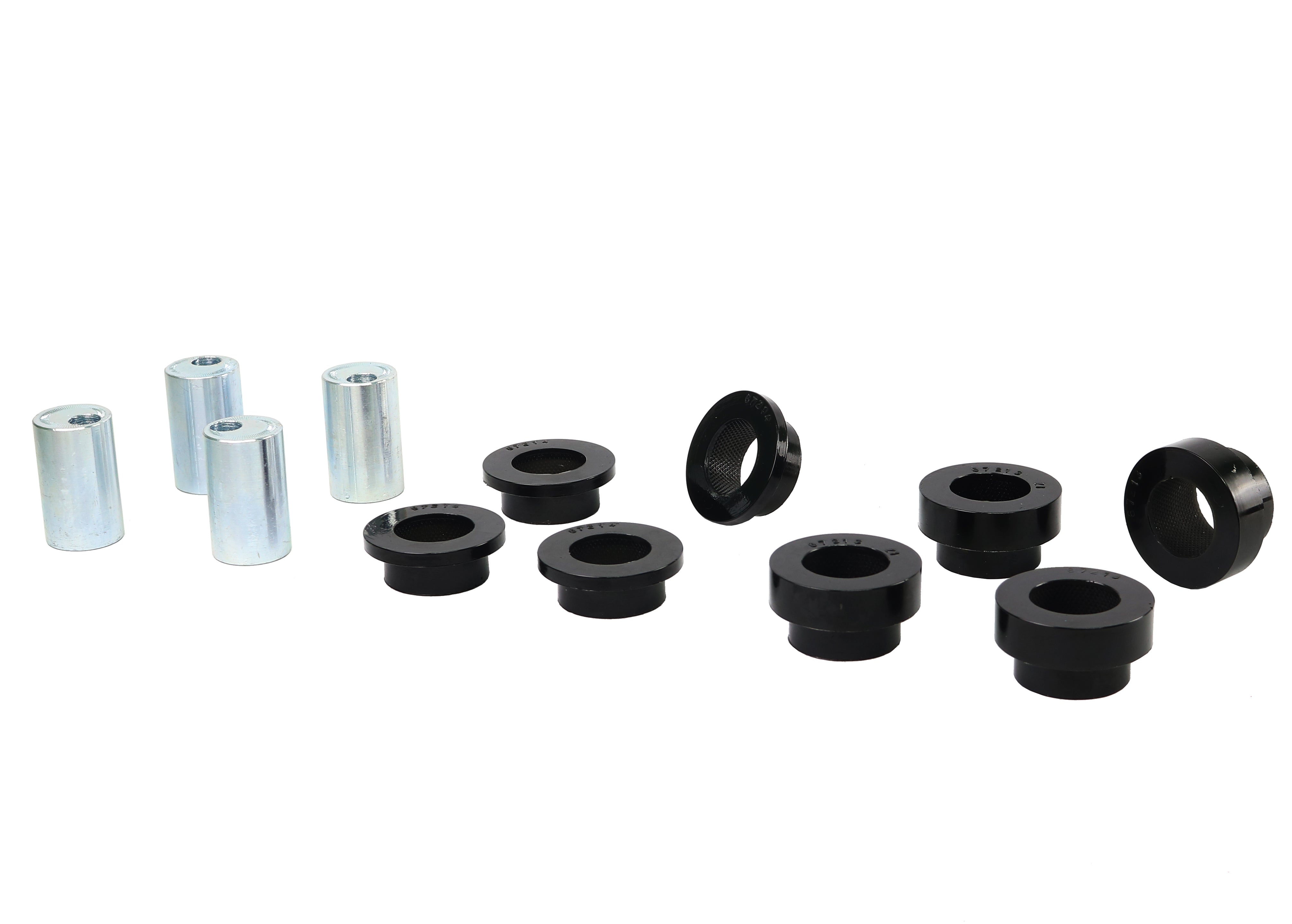

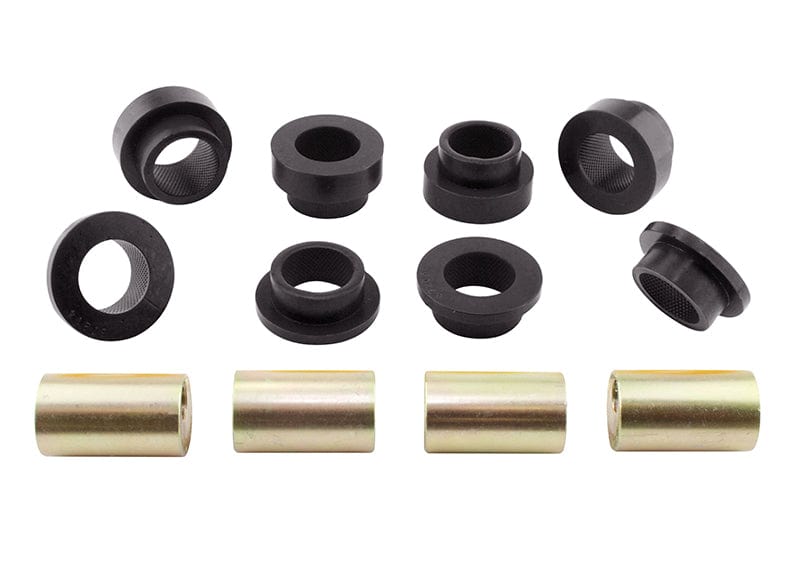

This Whiteline Front Upper Control Arm Bushing Kit fits the 2015-2017 Nissan GT-R Nismo (R35). Whiteline's note for this fit: Adds +/- 0.5 degrees camber. Placement: front. Whiteline part number: KCA403. In the box: 8 bushings and 4 tubes.

Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.

Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. We also list Front Sway Bar Link Kit, Front and Rear Sway Bar Kit, and Heavy Duty Blade Adjustable 20mm Rear Sway Bar for the GT-R.

Features

  • Material: Built from polyurethane.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Install guide: Step-by-step installation instructions come with it.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
Part Number KCA403
Part Name Control Arm Bushing
Vehicle 2015-2017 Nissan GT-R Nismo
Chassis Code R35
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38.4 mm
Bushing Quantity 8 Bushings
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 8 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +/- 0.5 Degrees camber

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015NissanGT-RAWDAdds +/- 0.5 Degrees camber
2016NissanGT-RAWDAdds +/- 0.5 Degrees camber
2017NissanGT-RAWDAdds +/- 0.5 Degrees camber
