Product Details

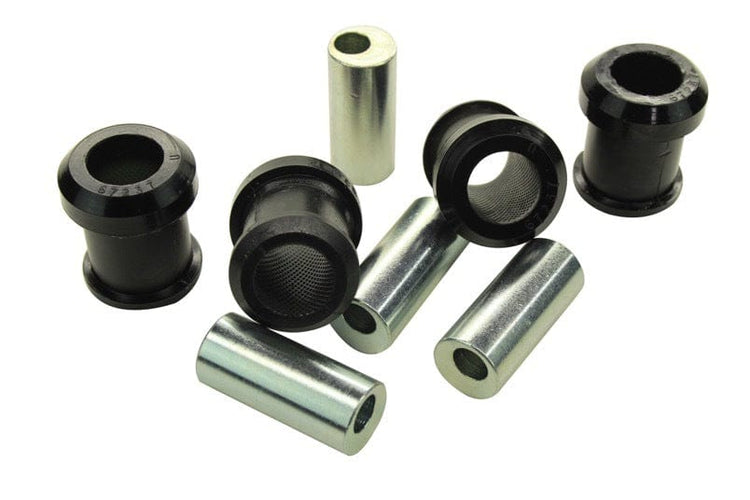

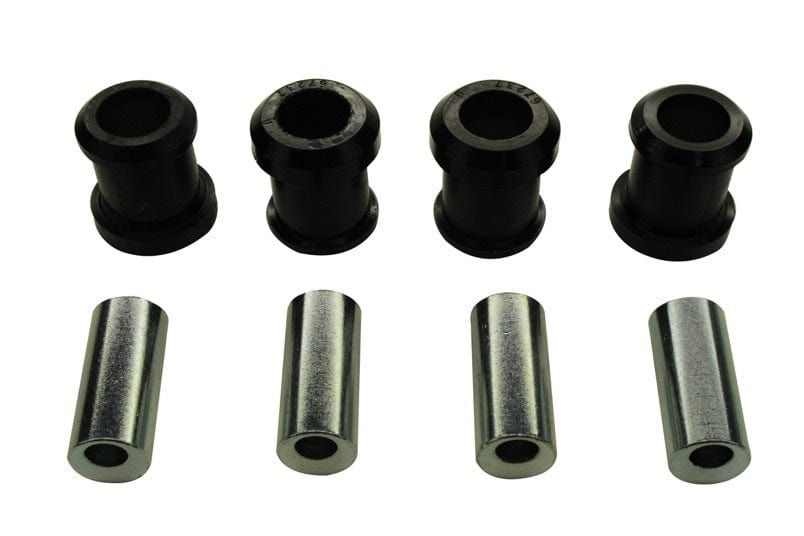

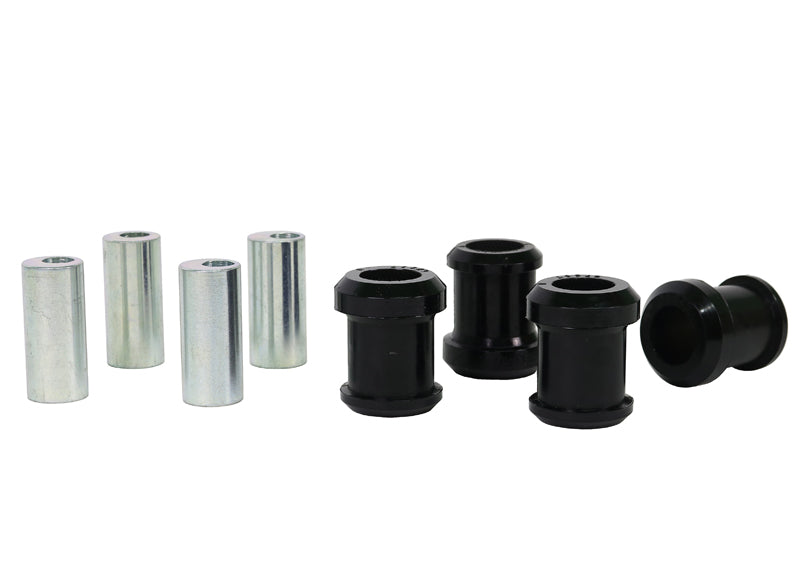

This Whiteline Front Upper Control Arm Bushing Kit fits the 2009-2011 Mazda RX-8 R3 (SE3P). You receive 4 bushings and 4 tubes. Whiteline's note for this fit: Adds 0.5 degrees Camber. This part is for the front of the vehicle. Order it as part number KCA421.

Lowering a car or fitting wider tires can push camber out of the range an alignment shop can correct with factory parts. This offset bushing moves the arm's pivot point to give the technician more to work with, while also replacing the soft rubber that was there.

Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. To go with it on the RX-8, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Material: The part is made of polyurethane.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Finish: The metal parts are powder coated for durability.
  • Camber adjustment: Designed to optimize camber alignment and offset the effect of body roll and tire roll in corners.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number KCA421
Part Name Control Arm Bushing
Vehicle 2009-2011 Mazda RX-8 R3
Chassis Code SE3P
Bushing 1 Inner Diameter 12.5 mm
Bushing 1 Outer Diameter 33.1 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Inside Diameter 10.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 33.1 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5Degree Camber

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009MazdaRX-8RWDAdds 0.5Degree Camber
2010MazdaRX-8RWDAdds 0.5Degree Camber
2011MazdaRX-8RWDAdds 0.5Degree Camber
