Product Details

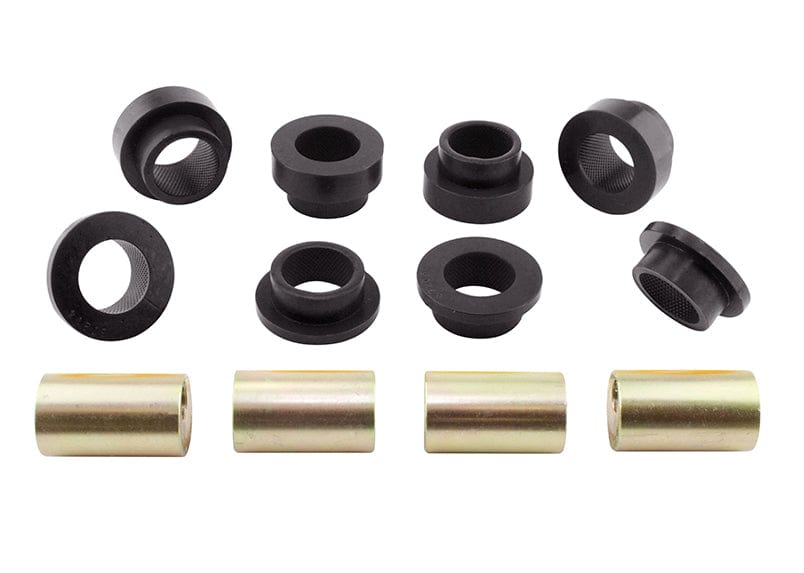

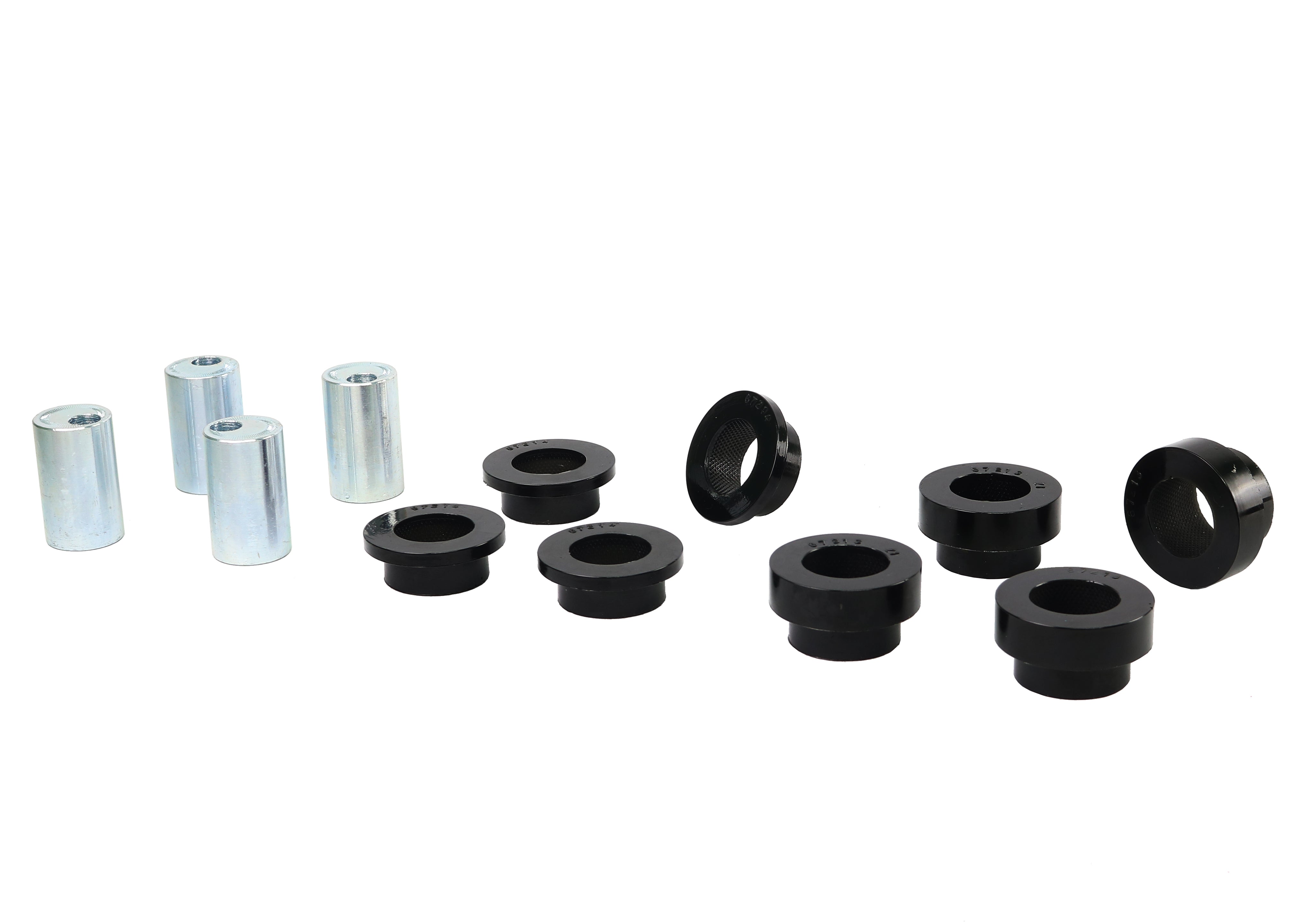

This Whiteline Front Upper Control Arm Bushing Kit fits the 2009-2010 Nissan GT-R Base (R35). The kit contains 8 bushings and 4 tubes. Application note: Adds +/- 0.5 degrees camber. Position: front. Order it as part number KCA403.

Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.

Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the GT-R: Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Material: The part is made of polyurethane.
  • Install guide: Whiteline packs an install guide with it.
  • Camber adjustment: Designed to optimize camber alignment and offset the effect of body roll and tire roll in corners.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number KCA403
Part Name Control Arm Bushing
Vehicle 2009-2010 Nissan GT-R Base
Drivetrain AWD
Chassis Code R35
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38.4 mm
Bushing Quantity 8 Bushings
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 8 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +/- 0.5 Degrees camber

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009NissanGT-RAWDAdds +/- 0.5 Degrees camber
2010NissanGT-RAWDAdds +/- 0.5 Degrees camber
