Product Details

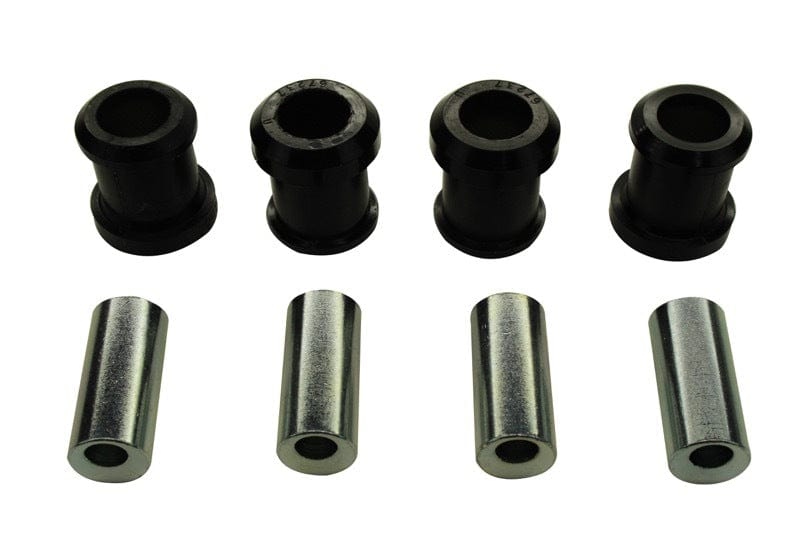

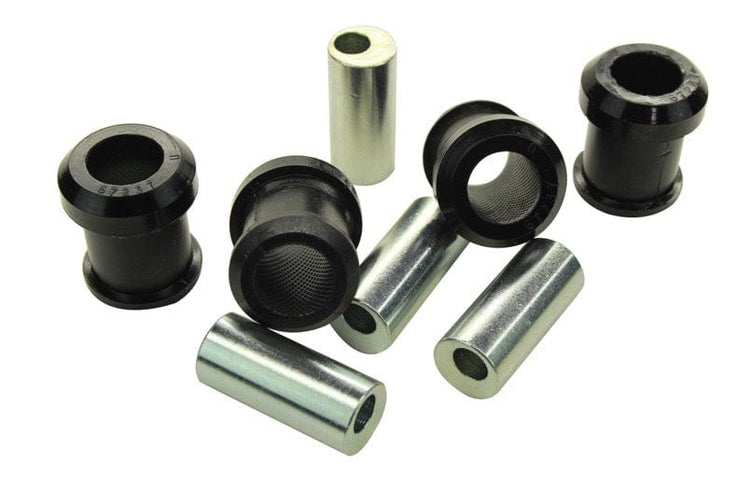

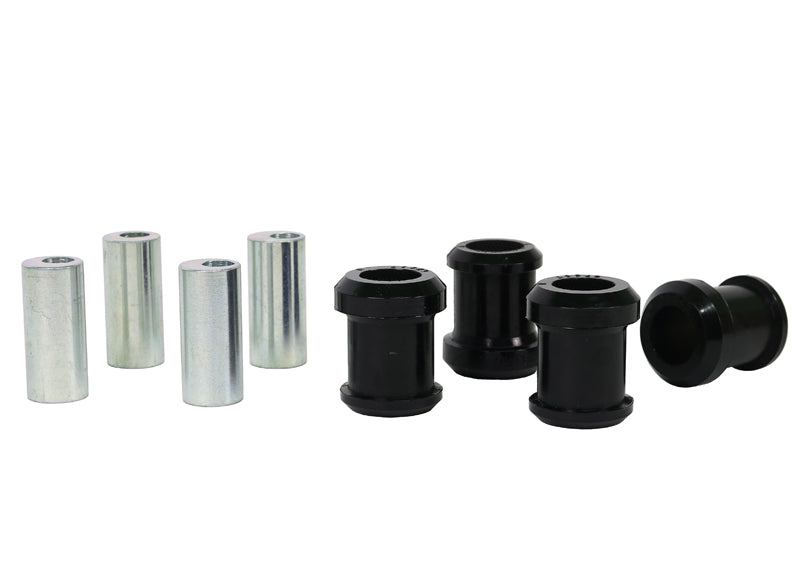

This Whiteline Front Upper Control Arm Bushing Kit fits the 2008-2011 Mazda RX-8 Grand Touring, Sport (SE3P). It goes on the front of the vehicle. Included: 4 bushings and 4 tubes. The part number is KCA421. Whiteline's note for this fit: Adds 0.5 degrees Camber.

Lowering a car or fitting wider tires can push camber out of the range an alignment shop can correct with factory parts. This offset bushing moves the arm's pivot point to give the technician more to work with, while also replacing the soft rubber that was there.

Expect a moderate job of about 3 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the RX-8: Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Camber adjustment: Aims to keep camber in an effective range as the body rolls.
  • Material: Polyurethane construction.
Specifications
Part Number KCA421
Part Name Control Arm Bushing
Vehicle 2008-2011 Mazda RX-8 Grand Touring, Sport
Chassis Code SE3P
Bushing 1 Inner Diameter 12.5 mm
Bushing 1 Outer Diameter 33.1 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Inside Diameter 10.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 33.1 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5Degree Camber

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008MazdaRX-8RWDAdds 0.5Degree Camber
2009MazdaRX-8RWDAdds 0.5Degree Camber
2010MazdaRX-8RWDAdds 0.5Degree Camber
2011MazdaRX-8RWDAdds 0.5Degree Camber
