Product Details

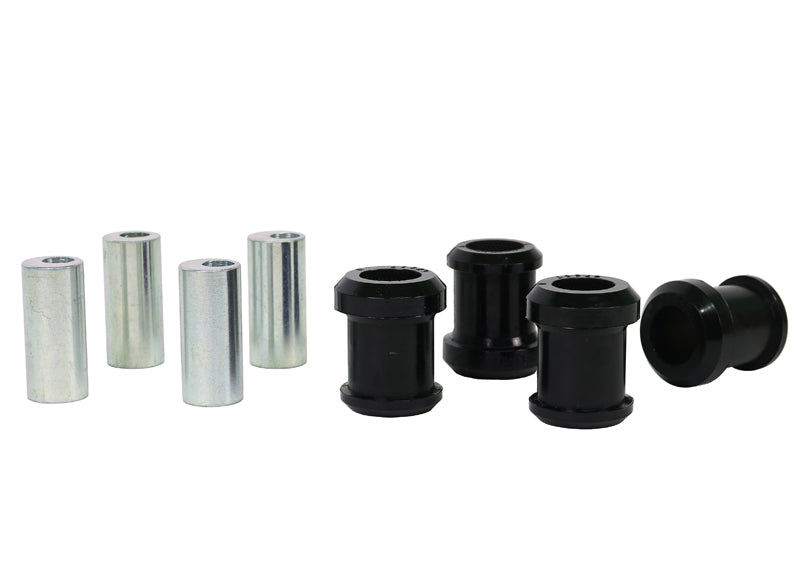

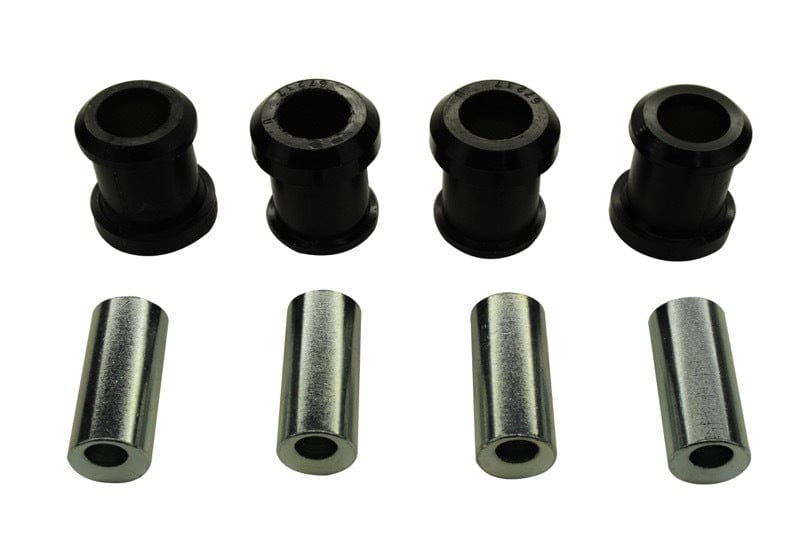

This Whiteline Front Upper Control Arm Bushing Kit fits the 2008-2009 Mazda RX-8 Touring (SE3P). Included: 4 bushings and 4 tubes. Application note: Adds 0.5 degrees Camber. Order it as part number KCA421. This part is for the front of the vehicle.

Lowering a car or fitting wider tires can push camber out of the range an alignment shop can correct with factory parts. This offset bushing moves the arm's pivot point to give the technician more to work with, while also replacing the soft rubber that was there.

Expect a moderate job of about 3 hours. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit for the RX-8.

Features

  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Material: Polyurethane construction.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Camber adjustment: Designed to optimize camber alignment and offset the effect of body roll and tire roll in corners.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
Part Number KCA421
Part Name Control Arm Bushing
Vehicle 2008-2009 Mazda RX-8 Touring
Chassis Code SE3P
Bushing 1 Inner Diameter 12.5 mm
Bushing 1 Outer Diameter 33.1 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Inside Diameter 10.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 33.1 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5Degree Camber

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008MazdaRX-8RWDAdds 0.5Degree Camber
2009MazdaRX-8RWDAdds 0.5Degree Camber
