Product Details

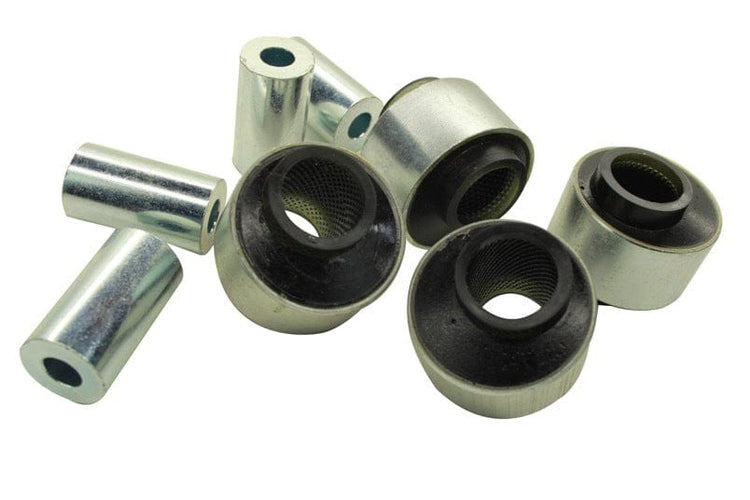

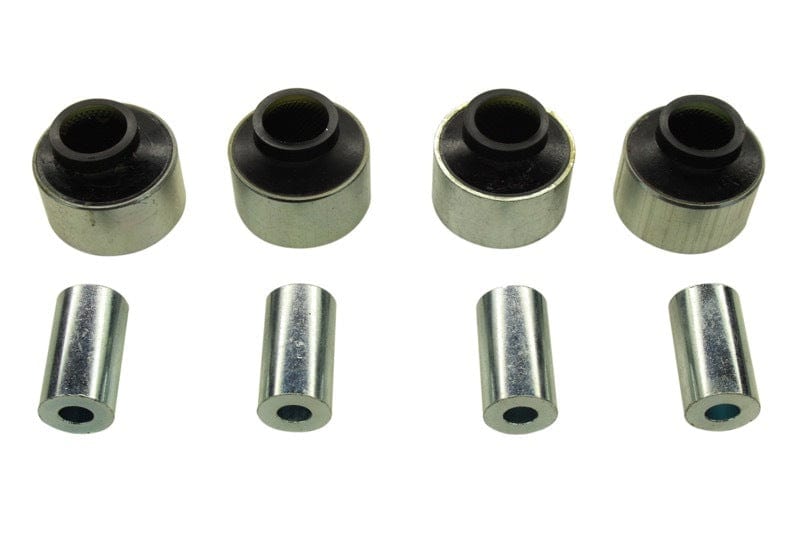

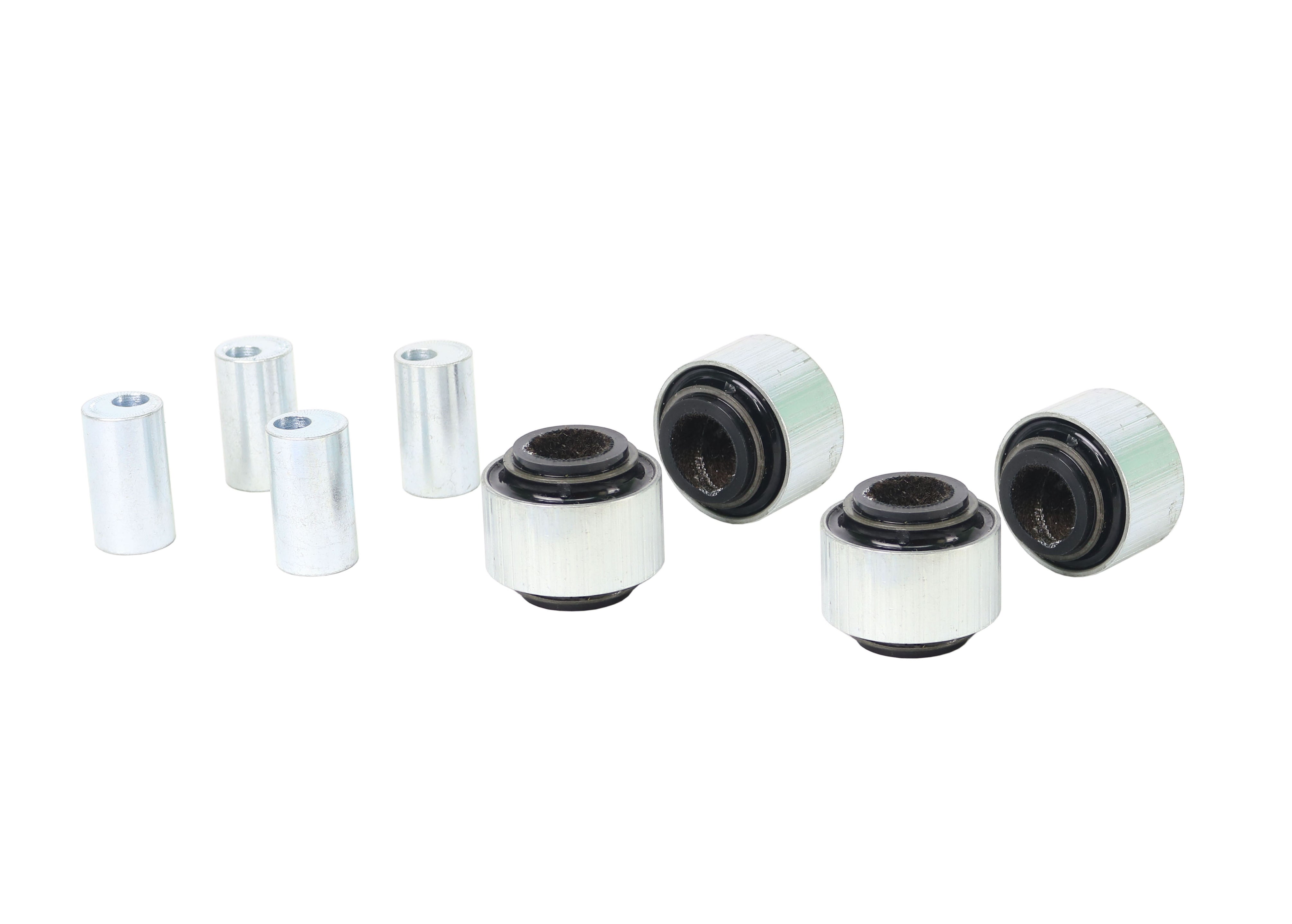

This Whiteline Front Upper Control Arm Bushing Kit fits the 2007-2011 Audi S6 Base (C6). It goes on the front of the vehicle. Application note: Adds 0.5 degrees Camber. Whiteline part number: KCA420. Included: 4 shell bushings and 4 tubes.
Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.
Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground.
Features
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Bonded design: A bonded design adds strength for high load applications.
- Finish: The metal is powder coated, which resists corrosion and wear.
- Camber adjustment: Helps keep camber in range so the tire holds its footprint through a corner.
Specifications
| Part Number | KCA420 |
| Part Name | Control Arm Bushing |
| Vehicle | 2007-2011 Audi S6 Base |
| Chassis Code | C6 |
| Bushing 1 Inner Diameter | 10.2 mm |
| Bushing 1 Outer Diameter | 46.2 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Performance |
| Inside Diameter | 12.2 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 46.2 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5Degree Camber |
