Product Details

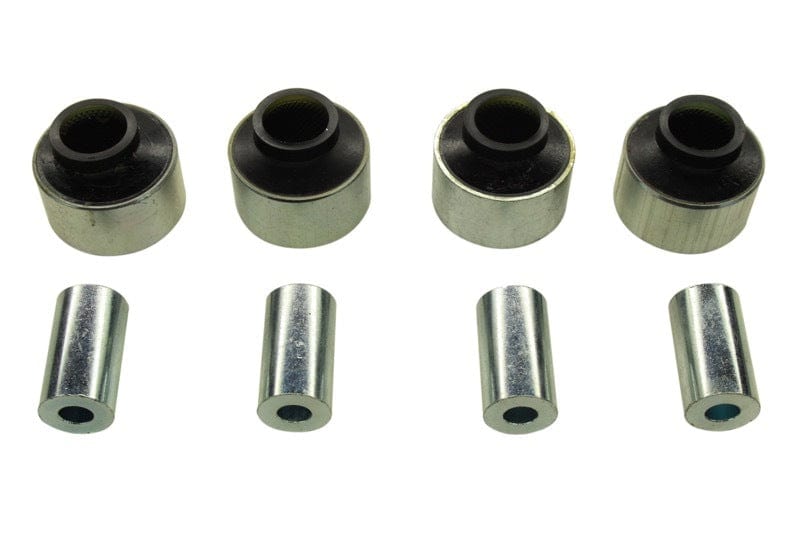

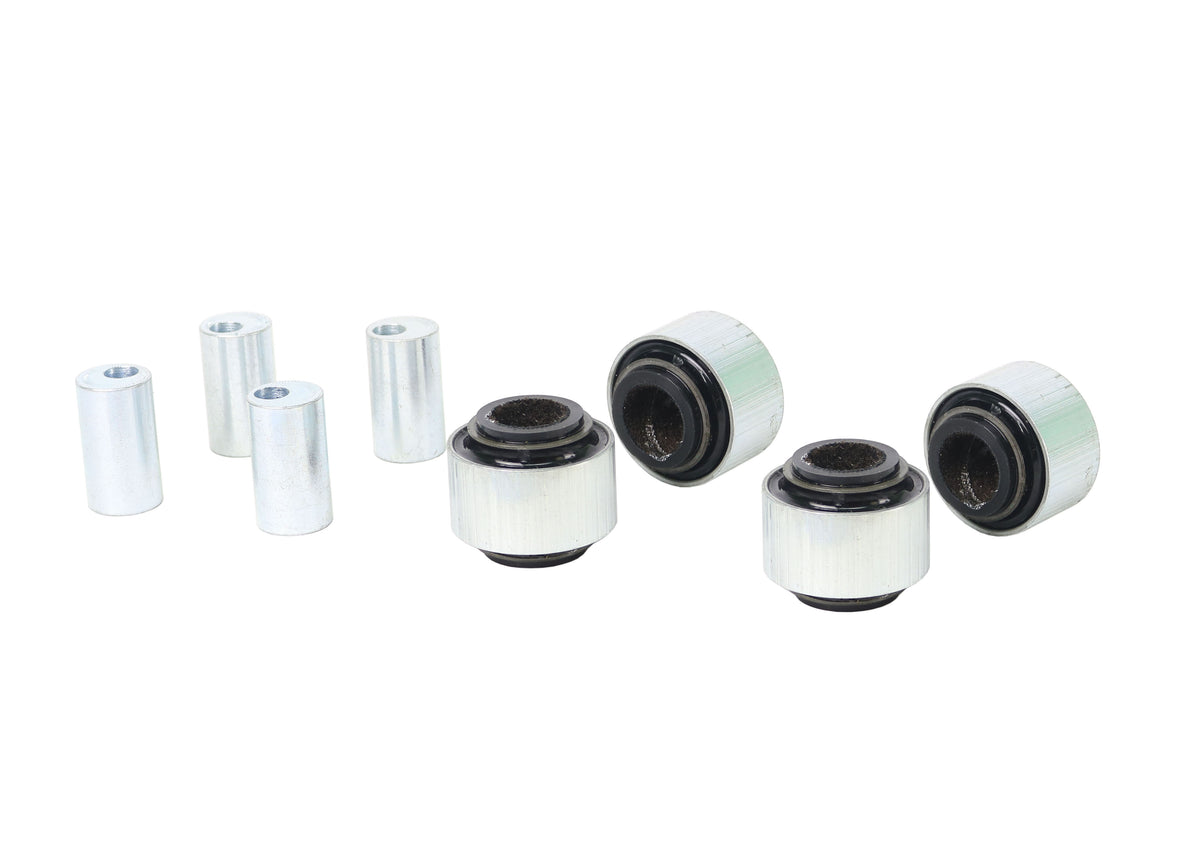

This Whiteline Front Upper Control Arm Bushing Kit fits the 2004-2009 Audi S4 Cabriolet (B6/B7). Chassis code: B6/B7. It goes on the front of the vehicle. Whiteline part number: KCA420. The kit contains 4 shell bushings and 4 tubes. Whiteline's note for this fit: Adds 0.5 degrees Camber.

Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.

Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. We also list 16mm Rear Sway Bar Bushing Kit for the Audi S4.

Features

  • Camber adjustment: Designed to optimize camber alignment and offset the effect of body roll and tire roll in corners.
  • Material: Built from polyurethane.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Bonded design: The bushing is bonded for strength where loads are highest.
Specifications
Part Number KCA420
Part Name Control Arm Bushing
Vehicle 2004-2009 Audi S4 Cabriolet
Chassis Code B6/B7
Bushing 1 Inner Diameter 10.2 mm
Bushing 1 Outer Diameter 46.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Performance
Inside Diameter 12.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 46.2 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5Degree Camber

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004AudiS44WDAdds 0.5Degree Camber
2005AudiS44WDAdds 0.5Degree Camber
2006AudiS44WDAdds 0.5Degree Camber
2007AudiS44WDAdds 0.5Degree Camber
2008AudiS44WDAdds 0.5Degree Camber
2009AudiS44WDAdds 0.5Degree Camber
