Product Details

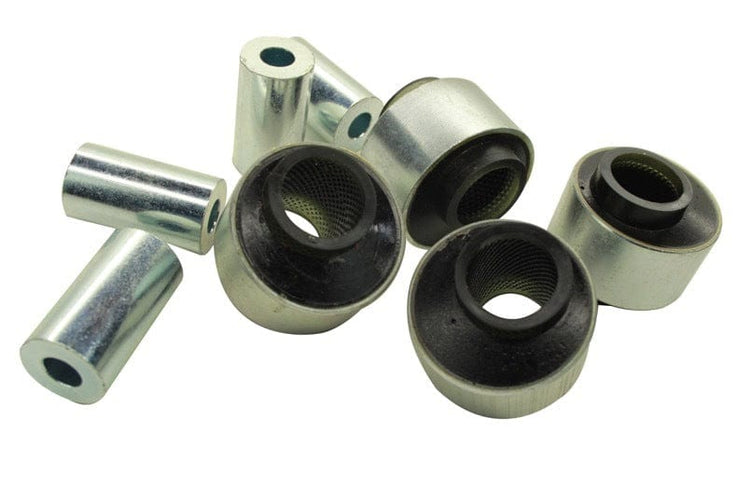

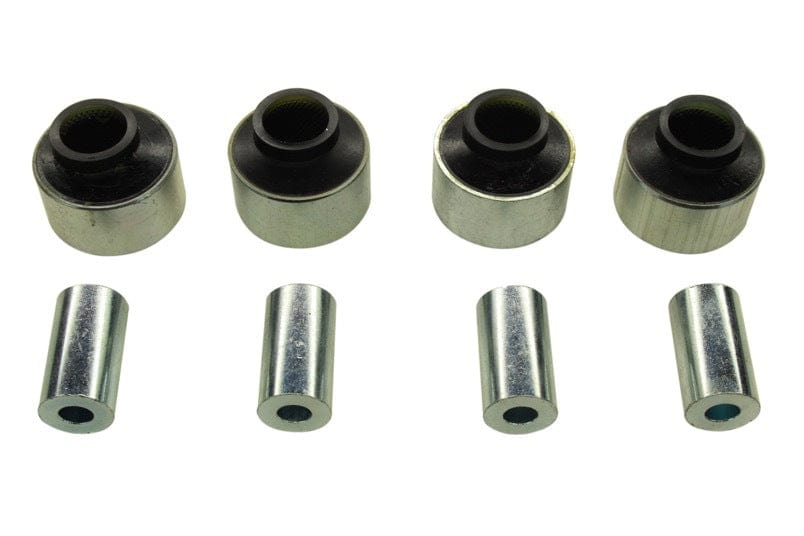

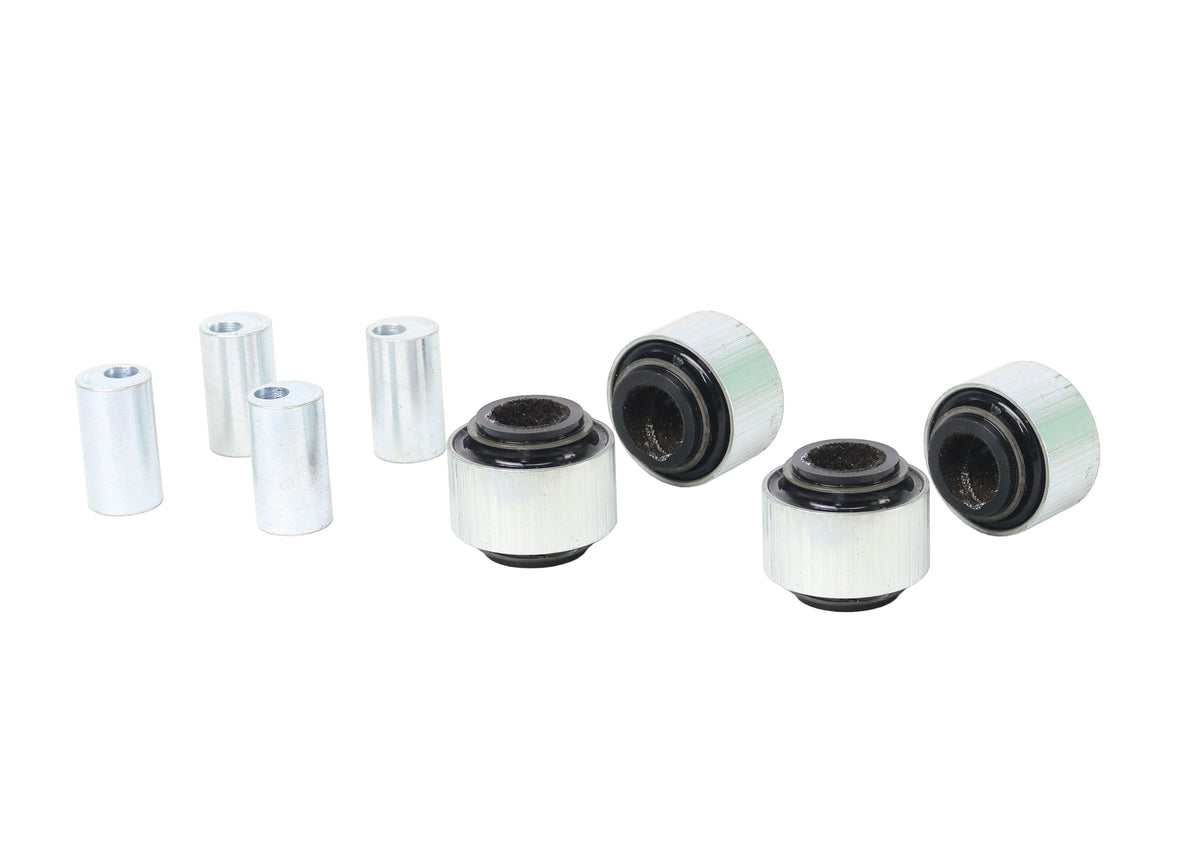

This Whiteline Front Upper Control Arm Bushing Kit fits the 2002-2004 Volkswagen Passat W8 (B5). You receive 4 shell bushings and 4 tubes. Whiteline's note for this fit: Adds 0.5 degrees Camber. Placement: front. Order it as part number KCA420.

Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.

Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground.

Features

  • Finish: A powder coated finish resists corrosion and wear.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Material: The part is made of polyurethane.
  • Camber adjustment: Helps keep camber in range so the tire holds its footprint through a corner.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
Part Number KCA420
Part Name Control Arm Bushing
Vehicle 2002-2004 Volkswagen Passat W8
Chassis Code B5
Drivetrain FWD
Bushing 1 Inner Diameter 10.2 mm
Bushing 1 Outer Diameter 46.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Performance
Inside Diameter 12.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 46.2 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5Degree Camber

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002VolkswagenPassatFWDAdds 0.5Degree Camber
2003VolkswagenPassatFWDAdds 0.5Degree Camber
2004VolkswagenPassatFWDAdds 0.5Degree Camber
