Product Details

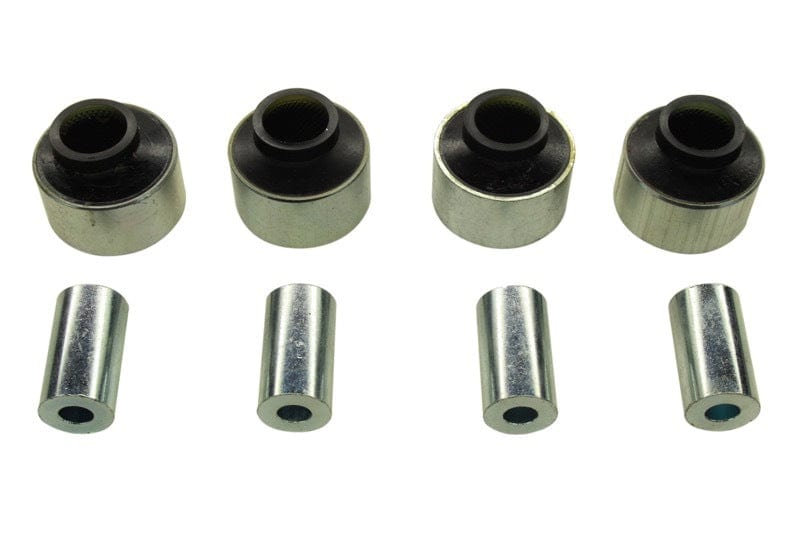

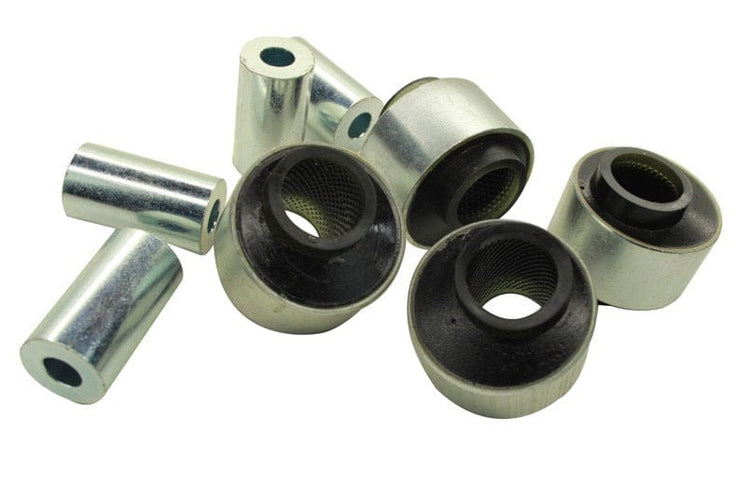

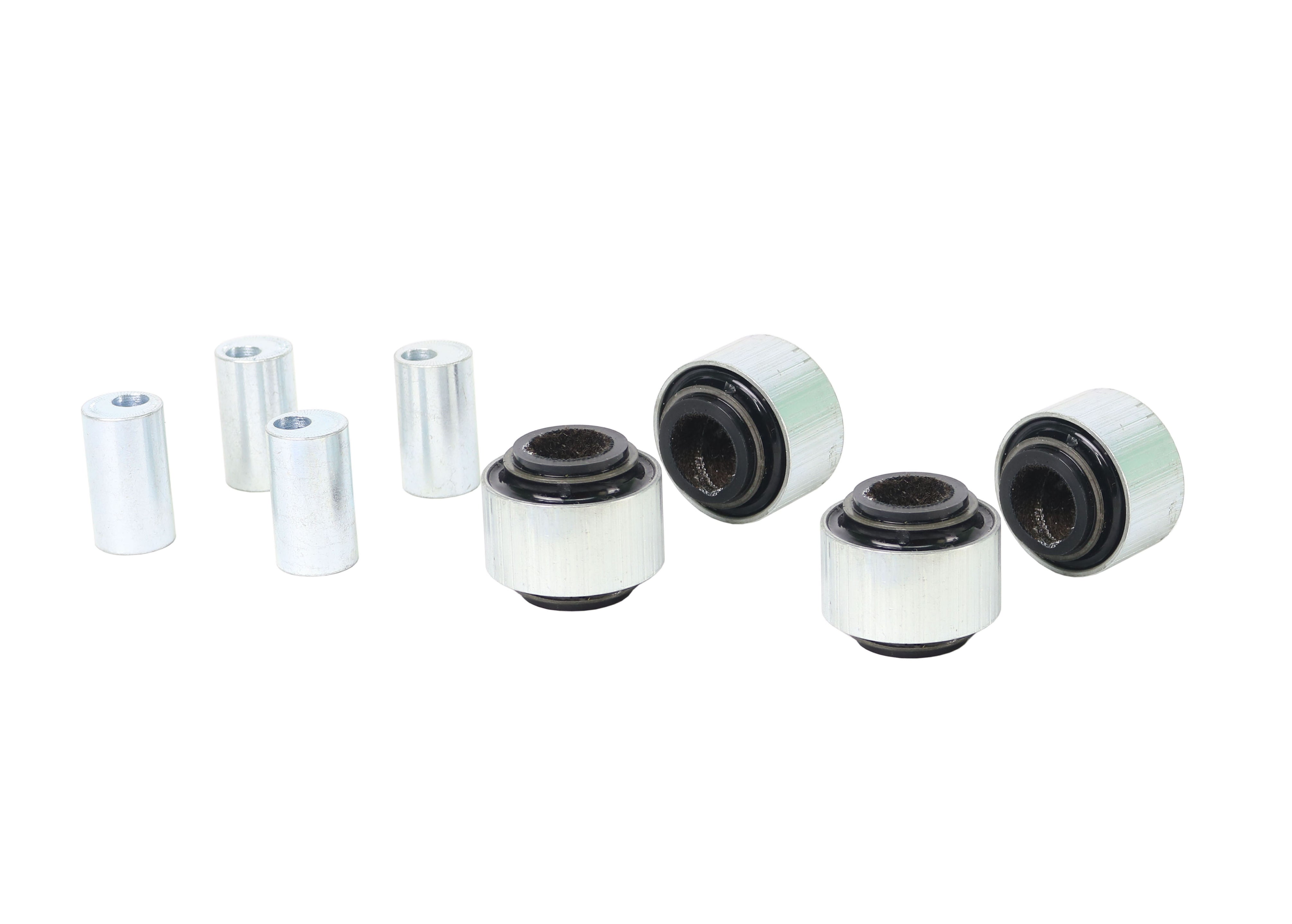

This Whiteline Front Upper Control Arm Bushing Kit fits the 2002-2003 Audi S6 Avant (C5). Whiteline part number: KCA420. The kit contains 4 shell bushings and 4 tubes. Application note: Adds 0.5 degrees Camber. Position: front.

Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.

Whiteline rates the install as moderate and lists about 3 hours. Get the car aligned once it is back on the ground.

Features

  • Finish: The metal parts are powder coated for durability.
  • Camber adjustment: Aims to keep camber in an effective range as the body rolls.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
Part Number KCA420
Part Name Control Arm Bushing
Vehicle 2002-2003 Audi S6 Avant
Chassis Code C5
Bushing 1 Inner Diameter 10.2 mm
Bushing 1 Outer Diameter 46.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Performance
Inside Diameter 12.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 46.2 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5Degree Camber

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002AudiS64WDAdds 0.5Degree Camber
2003AudiS64WDAdds 0.5Degree Camber
