Product Details

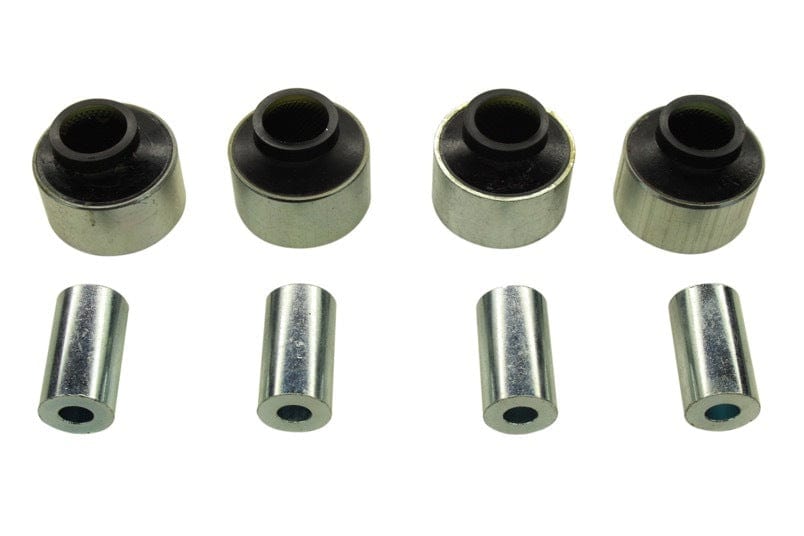

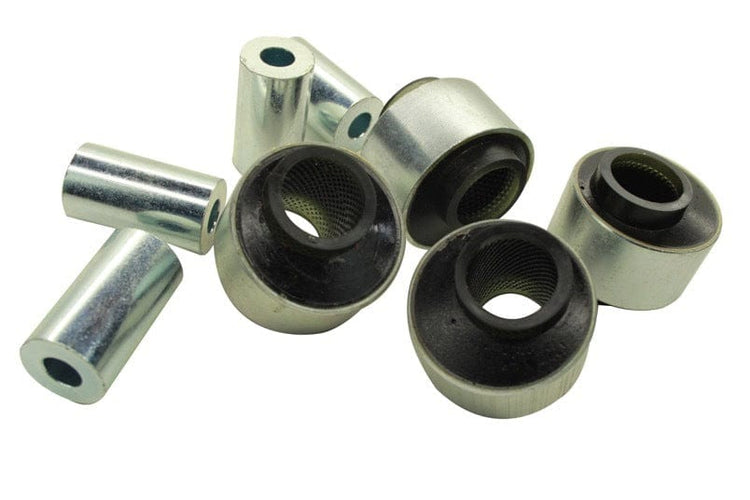

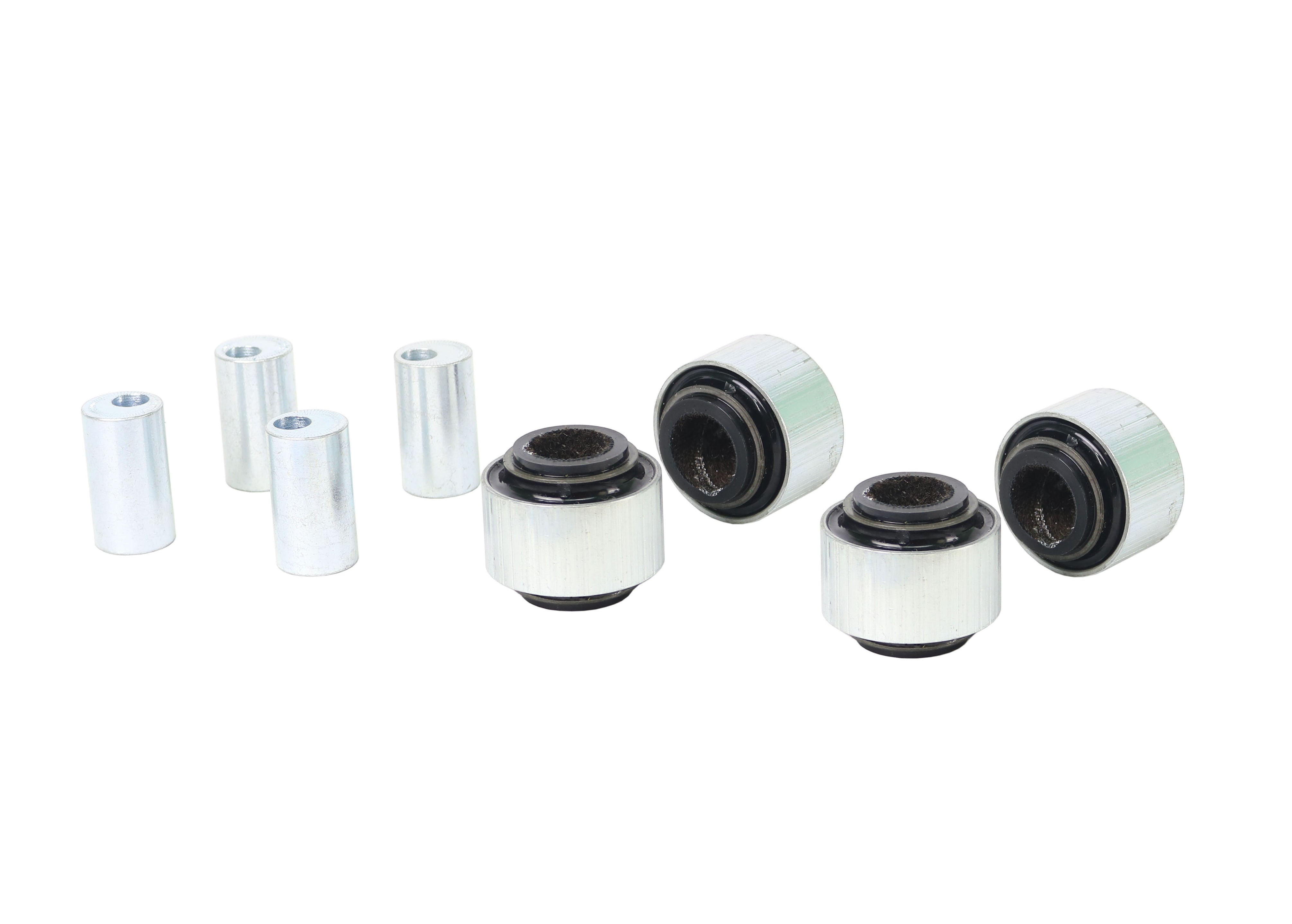

This Whiteline Front Upper Control Arm Bushing Kit fits the 1996-2016 Audi A4 Base, Quattro Base (B5/B6/B7/B8). Application note: Adds 0.5 degrees Camber. Whiteline part number: KCA420. The kit contains 4 shell bushings and 4 tubes. It goes on the front of the vehicle.
Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.
Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. To go with it on the Audi A4, see 16mm Rear Sway Bar Bushing Kit.
Features
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Finish: A powder coated finish resists corrosion and wear.
- Corrosion protection: Plated finish keeps rust off the hardware.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Camber adjustment: Helps hold the tire flatter on the road by correcting camber changes through roll.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
Specifications
| Part Number | KCA420 |
| Part Name | Control Arm Bushing |
| Vehicle | 1996-2016 Audi A4 Base, Quattro Base |
| Chassis Code | B5/B6/B7/B8 |
| Bushing 1 Inner Diameter | 10.2 mm |
| Bushing 1 Outer Diameter | 46.2 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Performance |
| Inside Diameter | 12.2 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 46.2 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5Degree Camber |
