Product Details

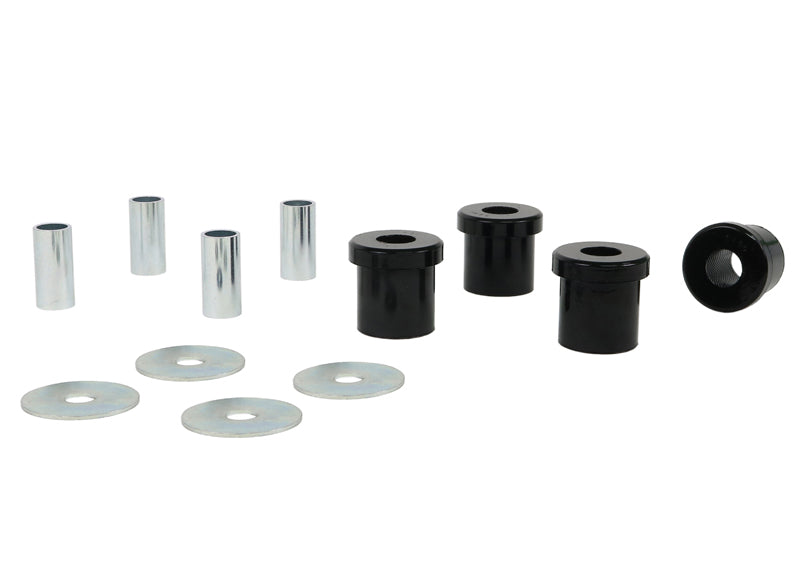

This Whiteline Front Upper Control Arm Bushing Kit fits the 1991-1997 Mitsubishi Montero LS (V20). Whiteline part number: W52969. Placement: front. The kit contains 4 bushings, 4 tubes, and 4 washers.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. We also list Front Shock Absorber Upper Bushing for the Montero.
Features
- Grease: Moly grease is supplied to prolong the life of the parts.
- Material: Built from polyurethane.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
| Part Number | W52969 |
| Part Name | Control Arm Bushing |
| Vehicle | 1991-1997 Mitsubishi Montero LS |
| Chassis Code | V20 |
| Drivetrain | 4WD |
| Bushing 1 Inner Diameter | 18.2 mm |
| Bushing 1 Outer Diameter | 43 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Bushings, 4 Tubes, 4 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
