Product Details

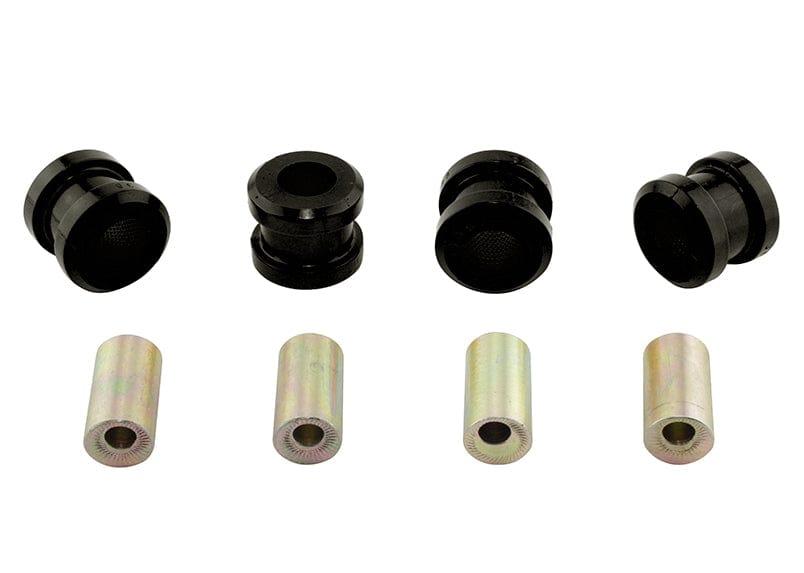

This Whiteline Front Upper Control Arm Bushing Kit fits the 1989-1991 Honda CR-X Base (EF). Whiteline part number: KCA378. You receive 4 bushings and 4 tubes. Placement: front.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the CR-X: Adjustable Rear Upper Control Arm Set, Front Sway Bar Link Kit, and Front Sway Bar Link Bushing (28.5mm OD).

Features

  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Camber adjustment: Helps keep camber in range so the tire holds its footprint through a corner.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Material: Polyurethane construction.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
Part Number KCA378
Part Name Control Arm Bushing
Vehicle 1989-1991 Honda CR-X Base
Chassis Code EF
Bushing 1 Inner Diameter 10.2 mm
Bushing 1 Outer Diameter 34.4 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Inside Diameter 12.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 34.4 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes 34mm OD bushing adds 1.0 Degrees

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1989HondaCR-XFWD34mm OD bushing adds 1.0 Degrees
1990HondaCR-XFWD34mm OD bushing adds 1.0 Degrees
1991HondaCR-XFWD34mm OD bushing adds 1.0 Degrees
