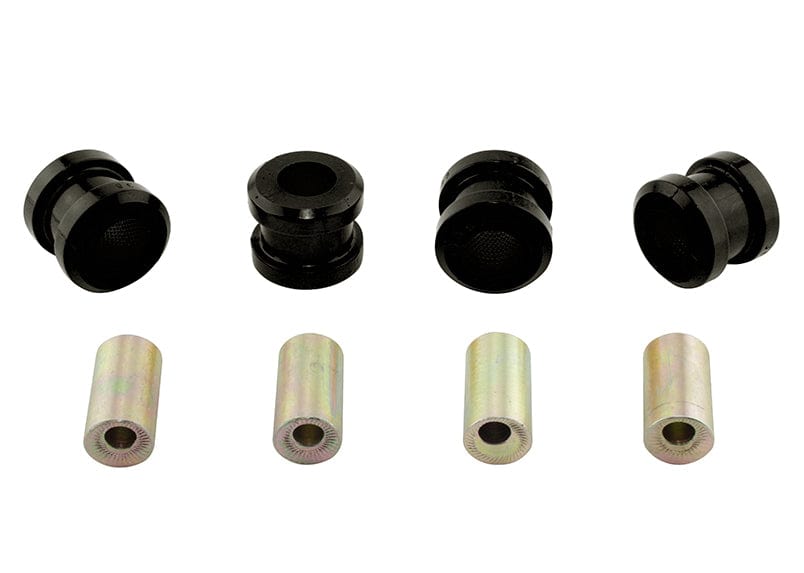

This Whiteline Front Upper Control Arm Bushing Kit fits the 1988-1991 Honda CR-X HF, Si (EF). You receive 4 bushings and 4 tubes. Position: front. Part number KCA378.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 3 hours. An alignment is required after installation. We also list Adjustable Rear Upper Control Arm Set, Front Sway Bar Link Kit, and Front Sway Bar Link Bushing (28.5mm OD) for the CR-X.

Features

  • Camber adjustment: Helps keep camber in range so the tire holds its footprint through a corner.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Finish: The metal is powder coated, which resists corrosion and wear.
Specifications
Part Number KCA378
Part Name Control Arm Bushing
Vehicle 1988-1991 Honda CR-X HF, Si
Chassis Code EF
Bushing 1 Inner Diameter 10.2 mm
Bushing 1 Outer Diameter 34.4 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Inside Diameter 12.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 34.4 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes 34mm OD bushing adds 1.0 Degrees

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1988HondaCR-XFWD34mm OD bushing adds 1.0 Degrees
1989HondaCR-XFWD34mm OD bushing adds 1.0 Degrees
1990HondaCR-XFWD34mm OD bushing adds 1.0 Degrees
1991HondaCR-XFWD34mm OD bushing adds 1.0 Degrees
