Product Details

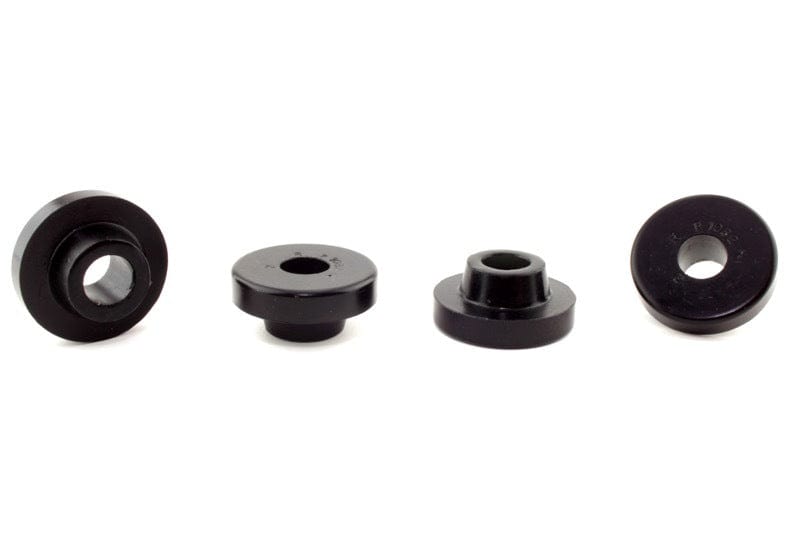

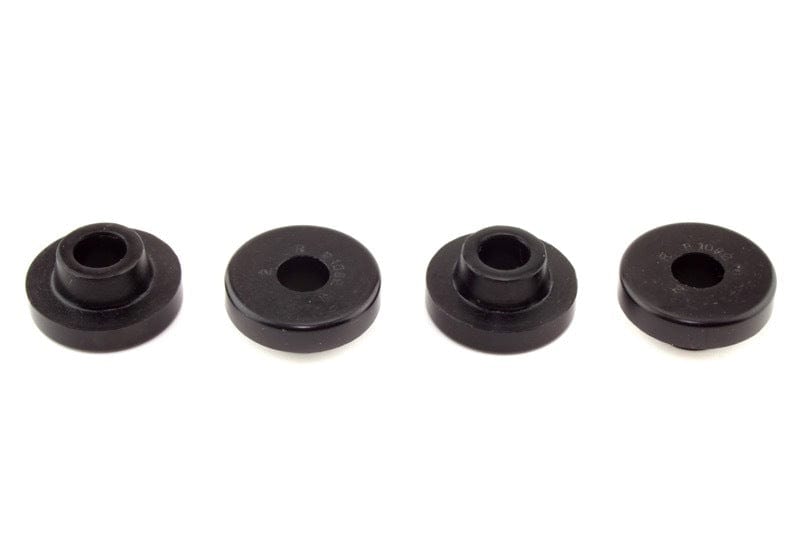

This Whiteline Front Control Arm Lower Outer Bushing fits the 1977-1978 Mazda RX-3 SP (S102A). Included: 4 bushings. Order it as part number W21082. This part is for the front of the vehicle.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect an easy job of about 1.5 hours. Get the car aligned once it is back on the ground.

Features

  • Material: Built from polyurethane.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
Specifications
Part Number W21082
Part Name Control Arm Bushing
Vehicle 1977-1978 Mazda RX-3 SP
Chassis Code S102A
Bushing 1 Inner Diameter 17 mm
Bushing 1 Length 23 mm
Bushing 1 Outer Diameter 27.5 mm
Bushing 2 Inner Diameter 17 mm
Bushing 2 Length 23 mm
Bushing 2 Outer Diameter 27.5 mm
Bushing Quantity 4
Grade Type Regular
Grease Fitting Included No
Inside Diameter 17 mm
Installation Difficulty Easy
Installation Time (hrs) 1.5
Kit Contents 4 Bushings
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 27.5 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
1977MazdaRX-3
1978MazdaRX-3
