Product Details

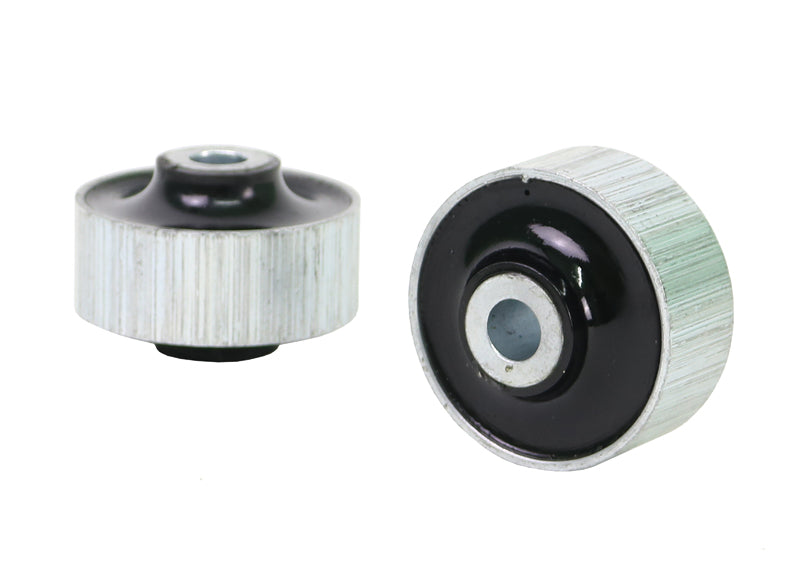

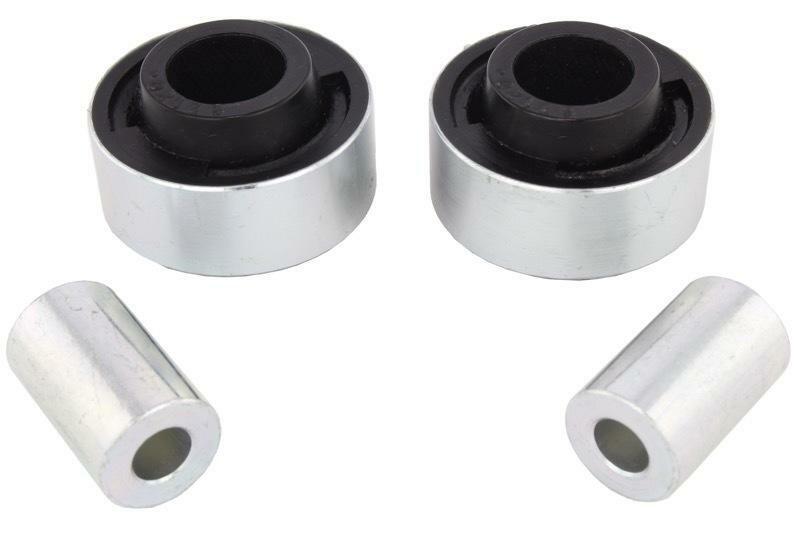

This Whiteline Front Control Arm Lower Inner Rear Bushing (Standard Repl.) fits the 2009-2012 Volkswagen Beetle (A5). Application note: Standard Replacement. Placement: front. Order it as part number W53188. The kit contains 2 shell bushings and 2 tubes.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Whiteline rates the install as difficult and lists about 2.5 hours. Get the car aligned once it is back on the ground. To go with it on the Beetle, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Bonded design: Bonding adds durability in high-load use.
  • Material: Polyurethane construction.
  • Finish: The metal parts are powder coated for durability.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number W53188
Part Name Control Arm Bushing
Vehicle 2009-2012 Volkswagen Beetle
Chassis Code A5
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 59.8 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009VolkswagenBeetleFWDStandard Replacement
2010VolkswagenBeetleFWDStandard Replacement
2011VolkswagenBeetleFWDStandard Replacement
2012VolkswagenBeetleFWDStandard Replacement
