Product Details

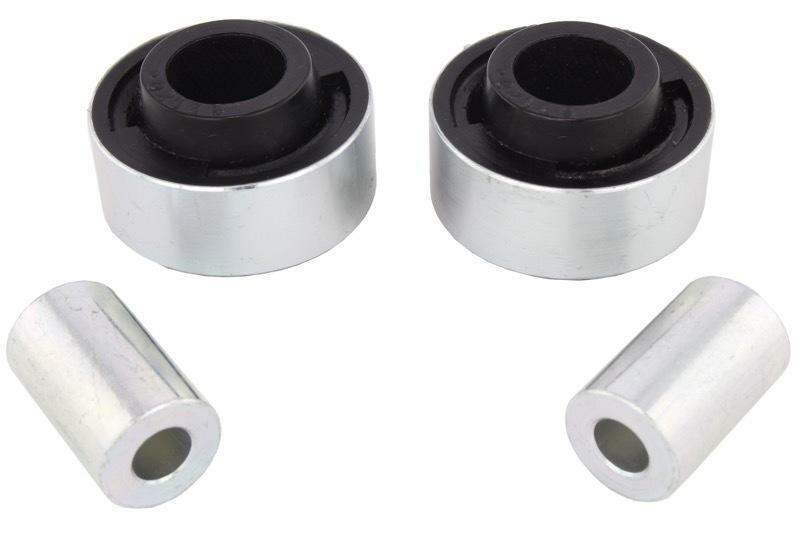

This Whiteline Front Control Arm Lower Inner Rear Bushing (Standard Repl.) fits the 2006 Volkswagen Beetle TDI (A4). Application note: Standard Replacement. Placement: front. The kit contains 2 shell bushings and 2 tubes. Order it as part number W53188.
A fresh control arm bushing is one of the more cost-effective ways to bring a tired suspension back. It swaps the worn factory part for one that holds the arm steady again while keeping the ride close to stock.
Installation is rated difficult, with about 2.5 hours of work listed. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Heavy Duty Blade Adjustable 24mm Rear Sway Bar, and Heavy Duty 22mm Front Sway Bar for the Beetle.
Features
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Finish: A powder coated finish resists corrosion and wear.
- Material: Polyurethane construction.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
| Part Number | W53188 |
| Part Name | Control Arm Bushing |
| Vehicle | 2006 Volkswagen Beetle TDI |
| Chassis Code | A4 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 59.8 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
