Product Details

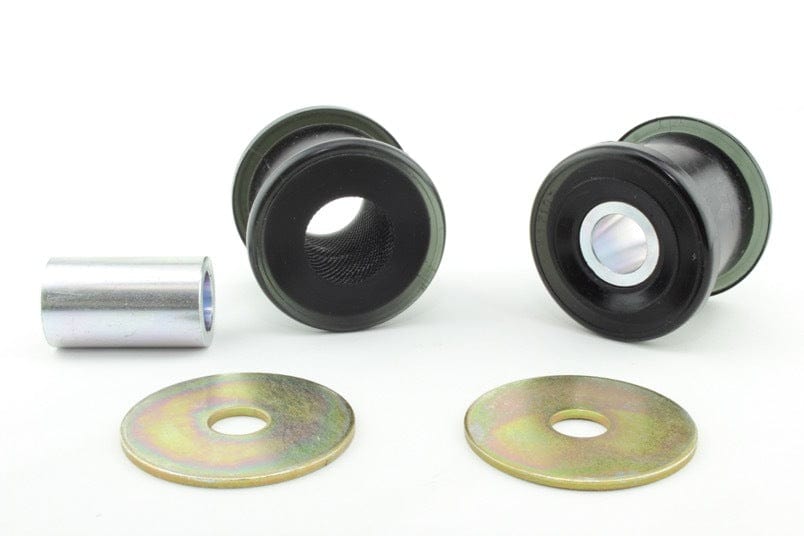

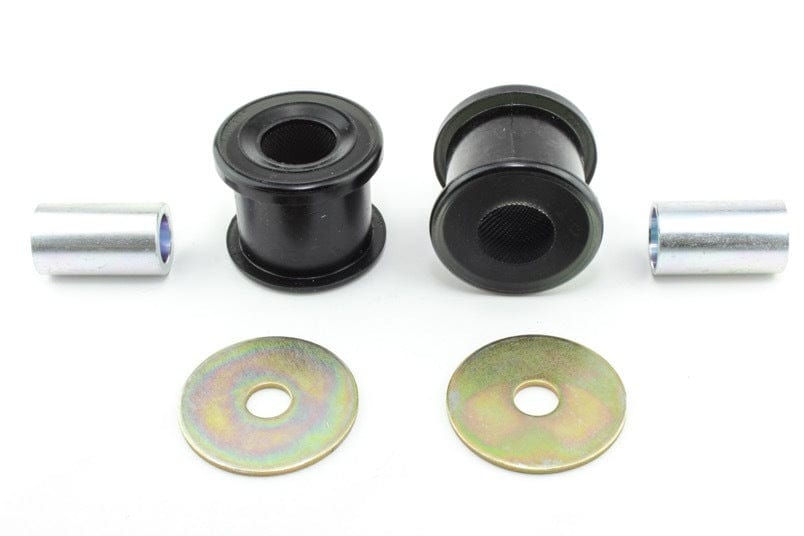

This Whiteline Front Control Arm Lower Inner Rear Bushing (Standard Repl.) fits the 2004 Subaru Legacy L 35th Anniversary (BL/BP). Order it as part number W51710. Whiteline's note for this fit: Standard Replacement. It goes on the front of the vehicle. In the box: 4 bushings, 2 tubes, and 2 washers.
A fresh control arm bushing is one of the more cost-effective ways to bring a tired suspension back. It swaps the worn factory part for one that holds the arm steady again while keeping the ride close to stock.
Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. To go with it on the Legacy, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.
Features
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Install guide: An install guide comes in the box.
- Corrosion protection: Plated finish keeps rust off the hardware.
- Easy to fit: Made with the installer in mind, so it goes in without special equipment.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
Specifications
| Part Number | W51710 |
| Part Name | Control Arm Bushing |
| Vehicle | 2004 Subaru Legacy L 35th Anniversary |
| Chassis Code | BL/BP |
| Bushing 1 Inner Diameter | 20.4 mm |
| Bushing 1 Length | 50.6 mm |
| Bushing 1 Outer Diameter | 56 mm |
| Bushing 2 Inner Diameter | 20.4 mm |
| Bushing 2 Length | 50.6 mm |
| Bushing 2 Outer Diameter | 56 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 4 |
| Color | Black |
| Durometer | 72 |
| Grade Type | Regular |
| Grease Fitting Included | No |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 4 Bushings, 2 Tubes, 2 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Mounting Type | Press In |
| Outside Diameter | 56 mm |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
