Product Details

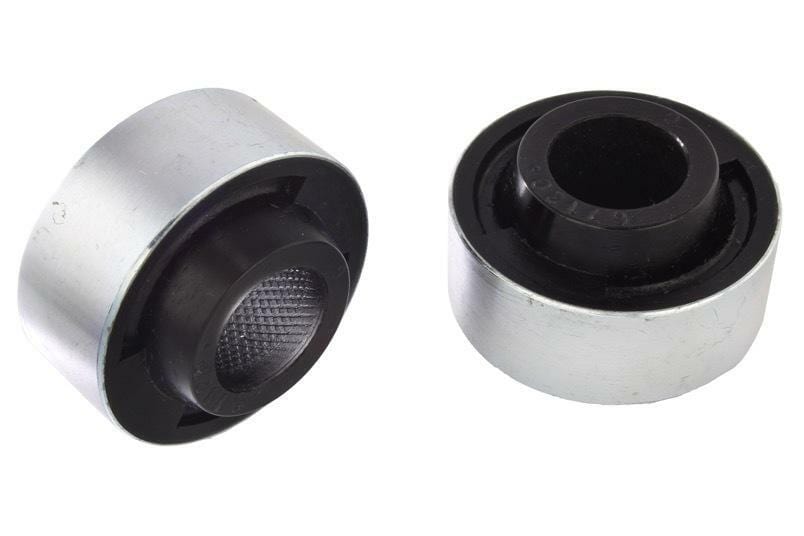

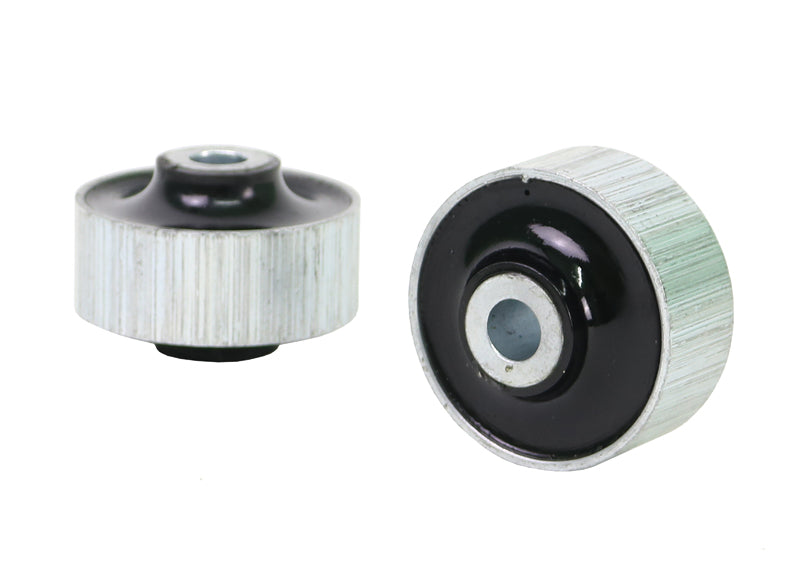

This Whiteline Front Control Arm Lower Inner Rear Bushing (Standard Repl.) fits the 2001-2002 Volkswagen Beetle Sport (A4). Application note: Standard Replacement. It goes on the front of the vehicle. Included: 2 shell bushings and 2 tubes. Whiteline part number: W53188.
Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.
Expect a difficult job of about 2.5 hours. An alignment is required after installation. Other Whiteline parts we list for the Beetle: Heavy Duty Blade Adjustable 24mm Rear Sway Bar, Heavy Duty 22mm Front Sway Bar, and 22mm Front Sway Bar Bushing Kit.
Features
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Material: Polyurethane construction.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Bonded design: A bonded design adds strength for high load applications.
- Finish: Powder coating covers the metal for protection against chips and rust.
Specifications
| Part Number | W53188 |
| Part Name | Control Arm Bushing |
| Vehicle | 2001-2002 Volkswagen Beetle Sport |
| Chassis Code | A4 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 59.8 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
