Product Details

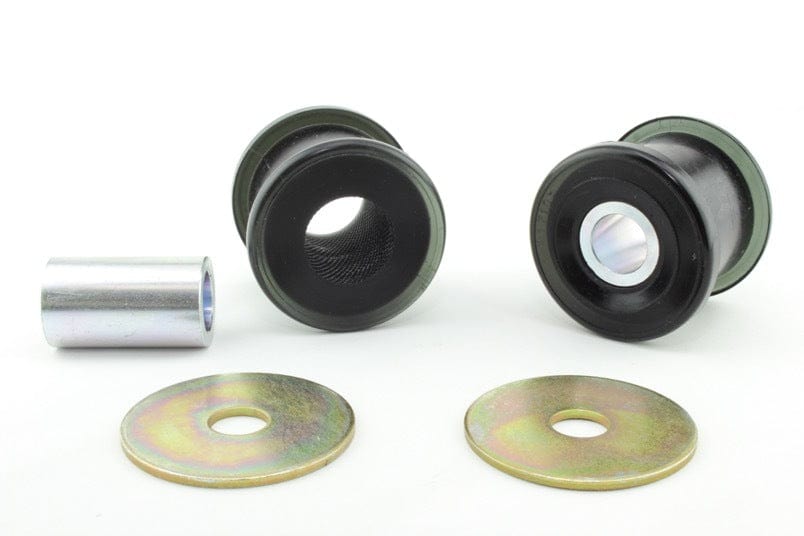

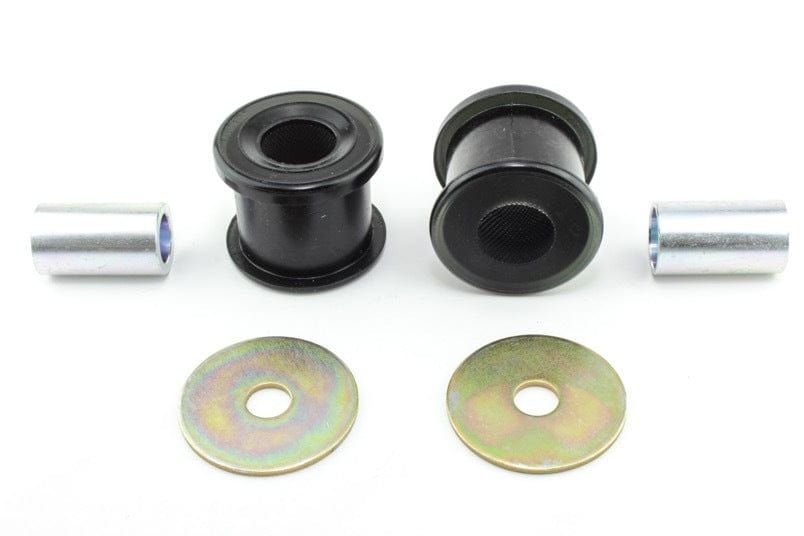

This Whiteline Front Control Arm Lower Inner Rear Bushing (Standard Repl.) fits the 1998-2002 Subaru Forester Base, L, S (SF/SG). Whiteline part number: W51710. Position: front. In the box: 4 bushings, 2 tubes, and 2 washers. Application note: Standard Replacement. Chassis code: SF/SG.
A fresh control arm bushing is one of the more cost-effective ways to bring a tired suspension back. It swaps the worn factory part for one that holds the arm steady again while keeping the ride close to stock.
Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Forester: 14mm Adjustable Front Camber Bolts, Adjustable Sway Bar Vehicle Link Kit, and Front and Rear Sway Bar Kit.
Features
- Easy to fit: Installation does not call for special skills or tools.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Install guide: Whiteline packs an install guide with it.
Specifications
| Part Number | W51710 |
| Part Name | Control Arm Bushing |
| Vehicle | 1998-2002 Subaru Forester Base, L, S |
| Chassis Code | SF/SG |
| Bushing 1 Inner Diameter | 20.4 mm |
| Bushing 1 Length | 50.6 mm |
| Bushing 1 Outer Diameter | 56 mm |
| Bushing 2 Inner Diameter | 20.4 mm |
| Bushing 2 Length | 50.6 mm |
| Bushing 2 Outer Diameter | 56 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 4 |
| Color | Black |
| Durometer | 72 |
| Grade Type | Regular |
| Grease Fitting Included | No |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 4 Bushings, 2 Tubes, 2 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Mounting Type | Press In |
| Outside Diameter | 56 mm |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
