Product Details

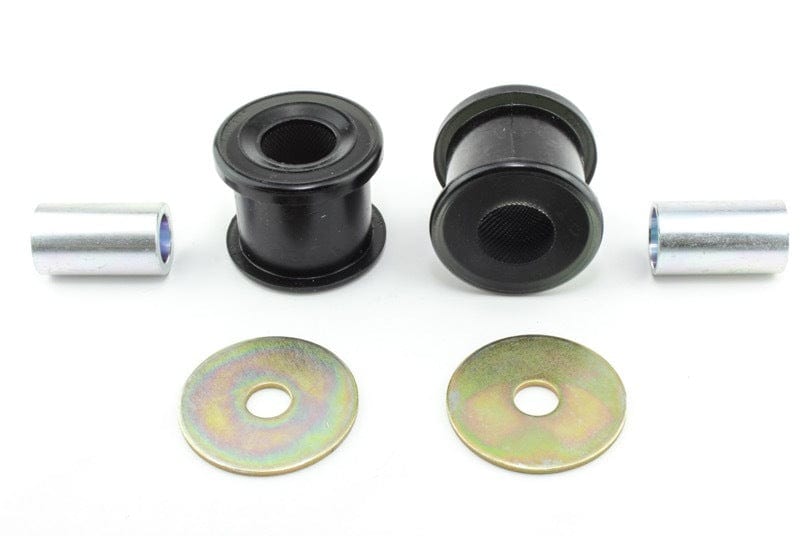

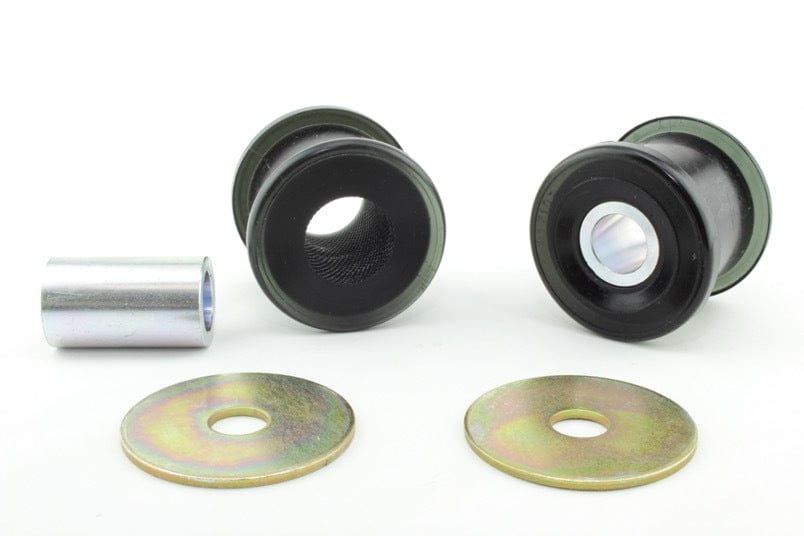

This Whiteline Front Control Arm Lower Inner Rear Bushing (Standard Repl.) fits the 1995-2004 Subaru Impreza WRX Outback (GC/GF/GD/GG). Whiteline part number: W51710. In the box: 4 bushings, 2 tubes, and 2 washers. Position: front. Whiteline's note for this fit: Standard Replacement.
Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.
Expect a difficult job of about 2.5 hours. An alignment is required after installation. We also list 14mm Adjustable Front Camber Bolts, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing for the Impreza WRX Outback.
Features
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Corrosion protection: Plated finish keeps rust off the hardware.
- Install guide: Instructions for fitting are packed in the box.
- Easy to fit: Designed so the install needs no specialized skills or tools.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
Specifications
| Part Number | W51710 |
| Part Name | Control Arm Bushing |
| Vehicle | 1995-2004 Subaru Impreza WRX Outback |
| Drivetrain | AWD |
| Chassis Code | GC/GF/GD/GG |
| Bushing 1 Inner Diameter | 20.4 mm |
| Bushing 1 Length | 50.6 mm |
| Bushing 1 Outer Diameter | 56 mm |
| Bushing 2 Inner Diameter | 20.4 mm |
| Bushing 2 Length | 50.6 mm |
| Bushing 2 Outer Diameter | 56 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 4 |
| Color | Black |
| Durometer | 72 |
| Grade Type | Regular |
| Grease Fitting Included | No |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 4 Bushings, 2 Tubes, 2 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Mounting Type | Press In |
| Outside Diameter | 56 mm |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
