Product Details

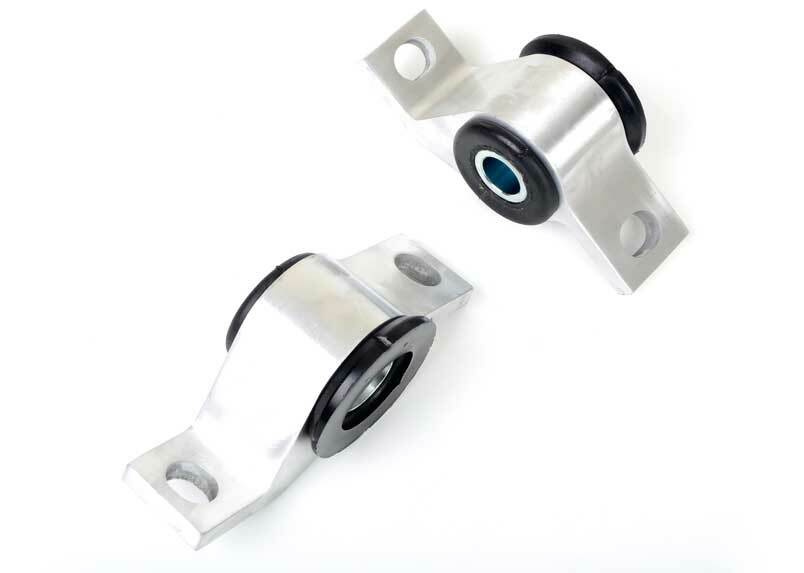

This Whiteline Front Control Arm Lower Inner Rear Bushing MOTORSPORT fits the 2002-2005 Subaru Impreza WRX RS (GD/GG). Application note: Adds 0.5 degrees Caster & Anti-Lift motorsport black option uses 95D. This part is for the front of the vehicle. Chassis code: GD/GG. You receive 2 housings, 12 spacers, 4 bolts, and 6 washers. Order it as part number KCA359M.

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Expect a difficult job of about 2.5 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Impreza WRX RS: Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Strut Tower Brace Quick Release Kit.

Features

  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Hardware: Supplied with mounting hardware.
  • Material: Polyurethane construction.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Install guide: Whiteline packs an install guide with it.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
Specifications
Part Number KCA359M
Part Name Control Arm Bushing
Vehicle 2002-2005 Subaru Impreza WRX RS
Drivetrain AWD
Chassis Code GD/GG
Bushing 1 Inner Diameter 20 mm
Bushing 1 Length 52.5 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 20 mm
Bushing 2 Length 52.5 mm
Bushing 2 Outer Diameter 39.5 mm
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5

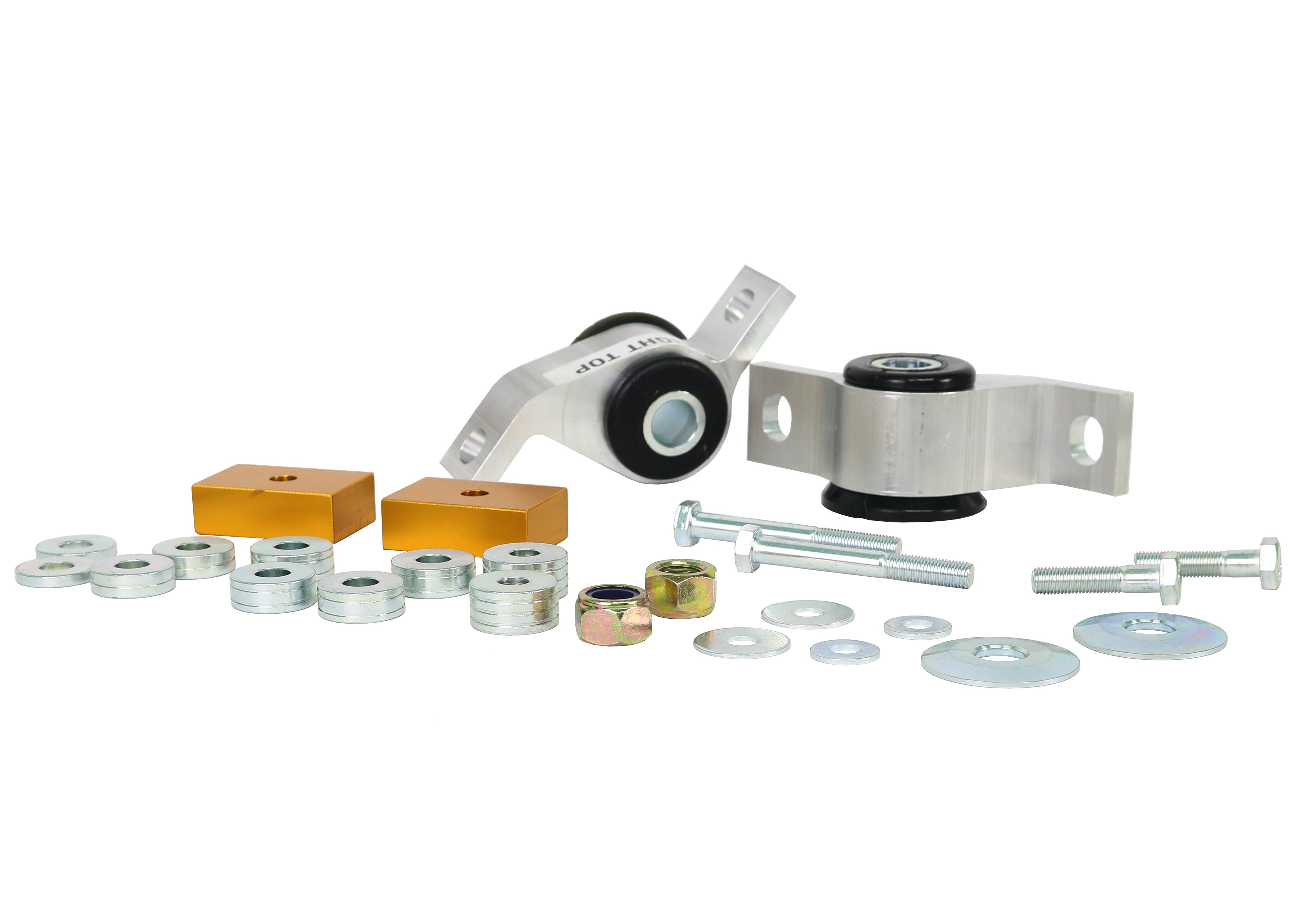

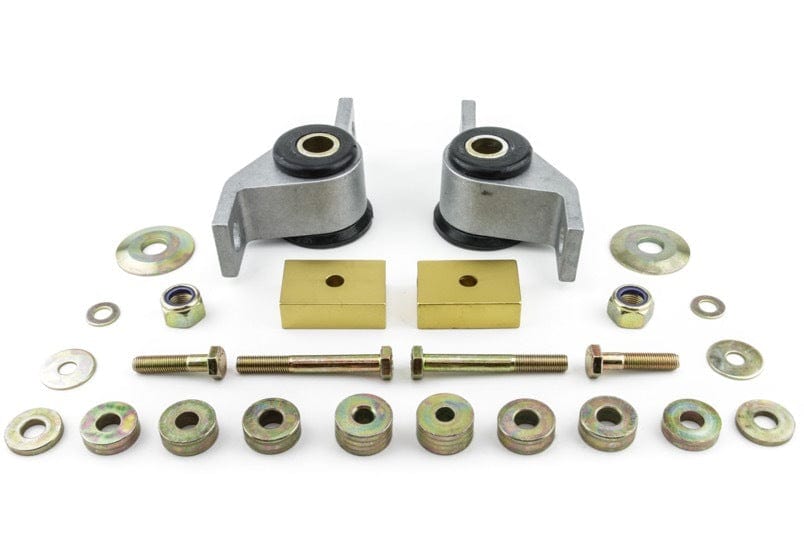

Kit Contents 2 Housings, 12 Spacers, 4 Bolts, 6 Washers
Material Polyurethane
Mounting Hardware Included Yes
Outside Diameter 39.5 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5 Degrees Caster & Anti-Lift MOTORSPORT BLACK option uses 95D

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002SubaruWRXAWDAdds 0.5 Degrees Caster & Anti-Lift MOTORSPORT BLACK option uses 95D
2003SubaruWRXAWDAdds 0.5 Degrees Caster & Anti-Lift MOTORSPORT BLACK option uses 95D
2004SubaruWRXAWDAdds 0.5 Degrees Caster & Anti-Lift MOTORSPORT BLACK option uses 95D
2005SubaruWRXAWDAdds 0.5 Degrees Caster & Anti-Lift MOTORSPORT BLACK option uses 95D
