Product Details

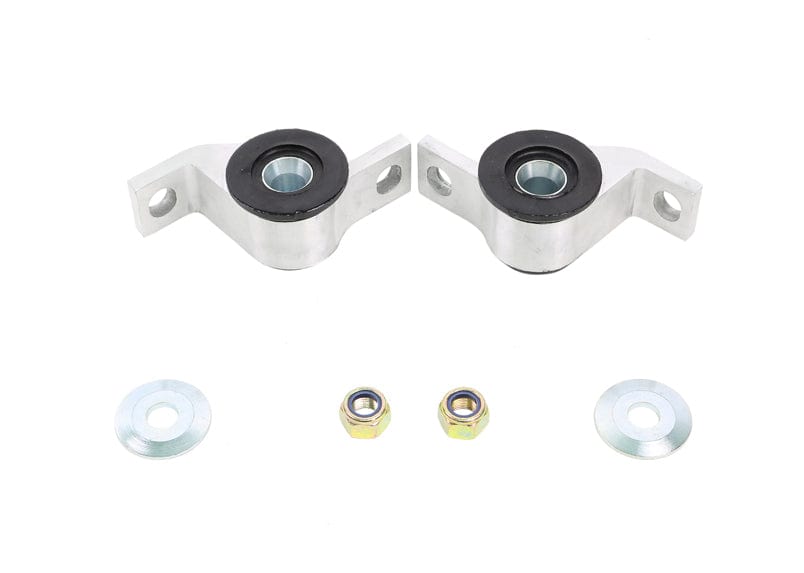

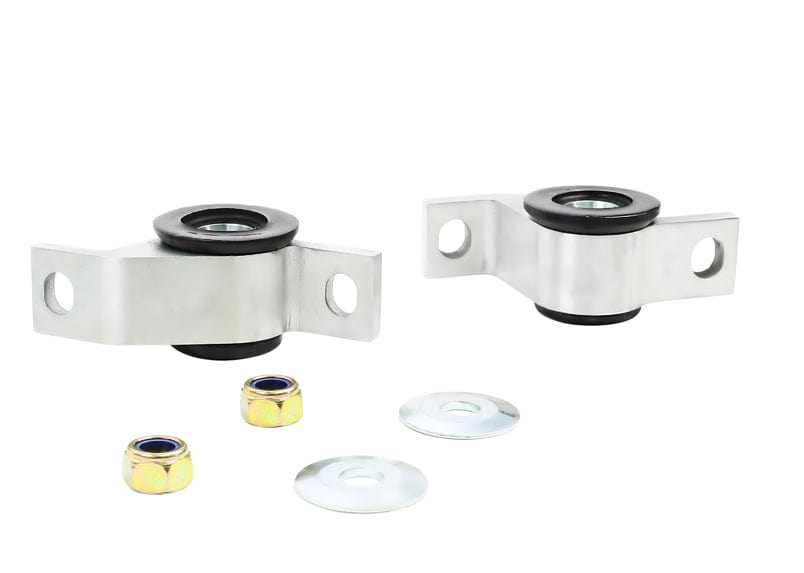

This Whiteline Front Control Arm Lower Inner Rear Bushing MOTORSPORT fits the 1993-1995 Subaru Impreza WRX (GC/GF). Chassis code: GC/GF. Position: front. The part number is KCA319M. You receive 2 housings, 2 washers, and 2 nuts. Application note: Adds +0.5 degrees Caster + Anti-Lift motorsport black option uses 95D.

Caster is the forward or backward lean of the steering axis, and more positive caster generally helps stability and steering return. This control arm bushing is made to add positive caster and alter anti-dive geometry, using a bushing swap rather than a major rebuild.

Whiteline rates the install as difficult and lists about 2 hours. Get the car aligned once it is back on the ground. To go with it on the Impreza WRX, see 14mm Adjustable Front Camber Bolts, Front Strut Tower Brace Quick Release Kit, and Front Gearbox Mount Bushing.

Features

  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Install guide: Whiteline packs an install guide with it.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Finish: The metal parts are powder coated for durability.
Specifications
Part Number KCA319M
Part Name Control Arm Bushing
Vehicle 1993-1995 Subaru Impreza WRX
Drivetrain AWD
Chassis Code GC/GF
Bushing 1 Inner Diameter 20 mm
Bushing 1 Length 52.5 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 20 mm
Bushing 2 Length 52.5 mm
Bushing 2 Outer Diameter 39.5 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Housings, 2 Washers, 2 Nuts
Mounting Hardware Included No
Outside Diameter 39.5 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1993SubaruWRXAWDAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
1994SubaruWRXAWDAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
1995SubaruWRXAWDAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
