Product Details

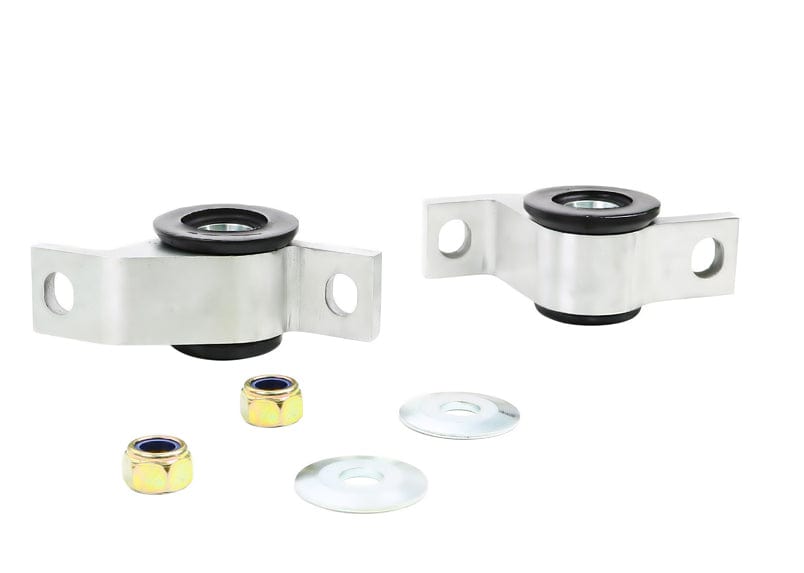

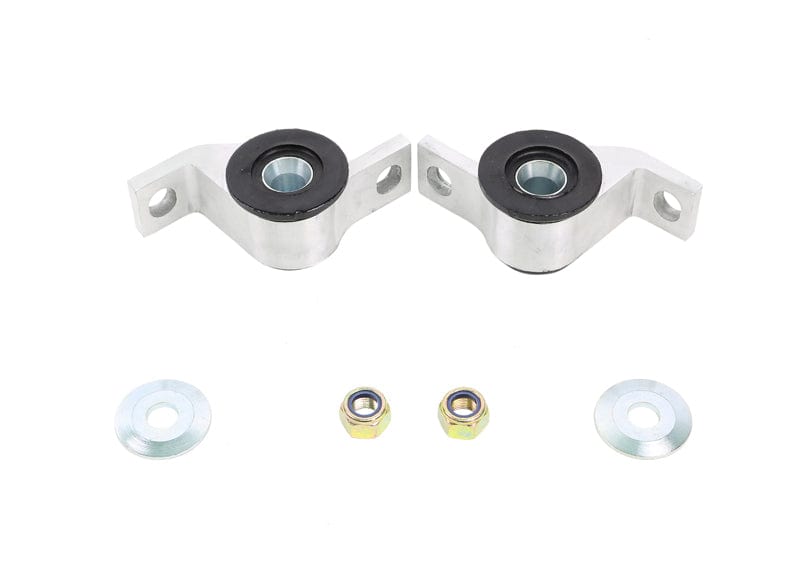

This Whiteline Front Control Arm Lower Inner Rear Bushing MOTORSPORT fits the 1993-1994 Subaru Impreza WRX LS (GC/GF). Order it as part number KCA319M. This part is for the front of the vehicle. Application note: Adds +0.5 degrees Caster + Anti-Lift motorsport black option uses 95D. In the box: 2 housings, 2 washers, and 2 nuts.

A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.

Whiteline rates the install as difficult and lists about 2 hours. Plan on a wheel alignment afterward. To go with it on the Impreza WRX LS, see Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Install guide: Written install instructions are included with the part.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Finish: The metal parts are powder coated for durability.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number KCA319M
Part Name Control Arm Bushing
Vehicle 1993-1994 Subaru Impreza WRX LS
Drivetrain AWD
Chassis Code GC/GF
Bushing 1 Inner Diameter 20 mm
Bushing 1 Length 52.5 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 20 mm
Bushing 2 Length 52.5 mm
Bushing 2 Outer Diameter 39.5 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Housings, 2 Washers, 2 Nuts
Mounting Hardware Included No
Outside Diameter 39.5 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1993SubaruWRXAWDAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
1994SubaruWRXAWDAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
