Product Details

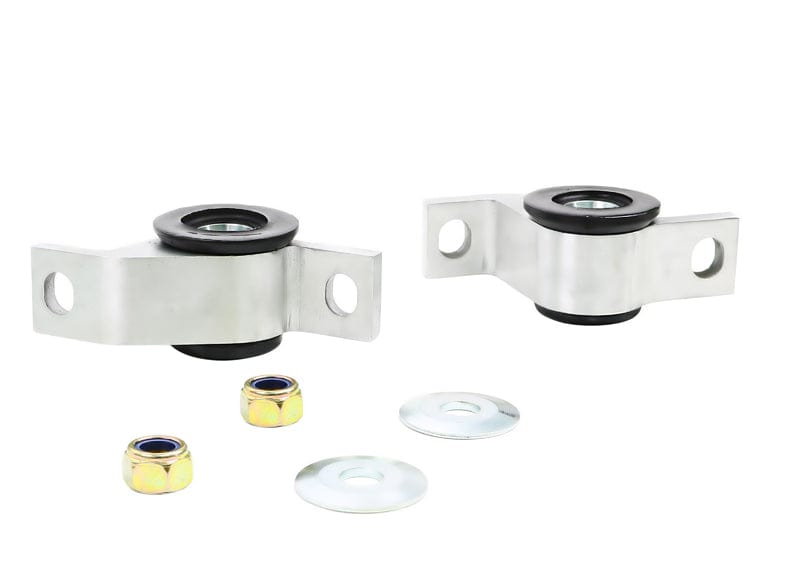

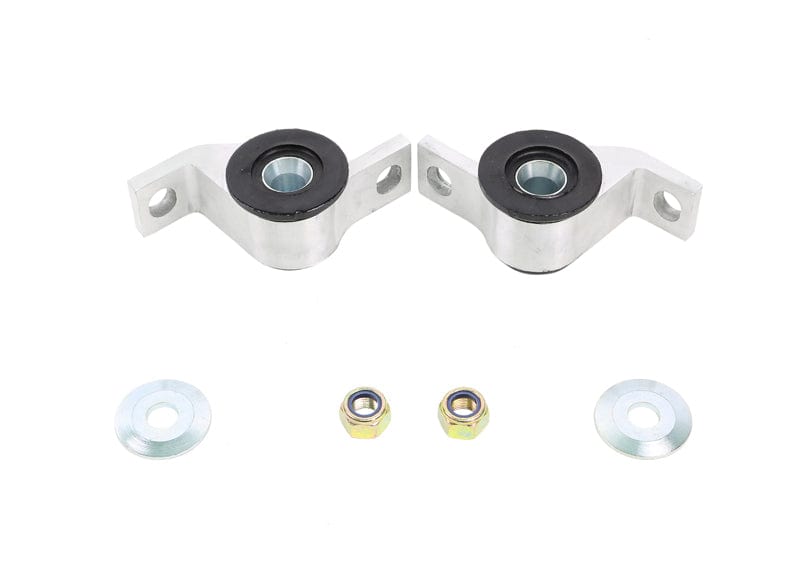

This Whiteline Front Control Arm Lower Inner Rear Bushing MOTORSPORT fits the 1990-2004 Subaru Legacy L (BC/BF/BD/BG/BE/BH/BL/BP). Order it as part number KCA319M. Application note: Adds +0.5 degrees Caster + Anti-Lift motorsport black option uses 95D. Included: 2 housings, 2 washers, and 2 nuts. This part is for the front of the vehicle.

A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.

Expect a difficult job of about 2 hours. Get the car aligned once it is back on the ground. To go with it on the Legacy, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Install guide: Written install instructions are included with the part.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
Specifications
Part Number KCA319M
Part Name Control Arm Bushing
Vehicle 1990-2004 Subaru Legacy L
Chassis Code BC/BF/BD/BG/BE/BH/BL/BP
Bushing 1 Inner Diameter 20 mm
Bushing 1 Length 52.5 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 20 mm
Bushing 2 Length 52.5 mm
Bushing 2 Outer Diameter 39.5 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Housings, 2 Washers, 2 Nuts
Mounting Hardware Included No
Outside Diameter 39.5 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
1990SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
1991SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
1992SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
1993SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
1994SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
1995SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
1996SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
1997SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
1998SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
1999SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
2000SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
2001SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
2002SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
2003SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
2004SubaruLegacyAdds +0.5 Degrees Caster + Anti-Lift MOTORSPORT BLACK option uses 95D;
