Product Details

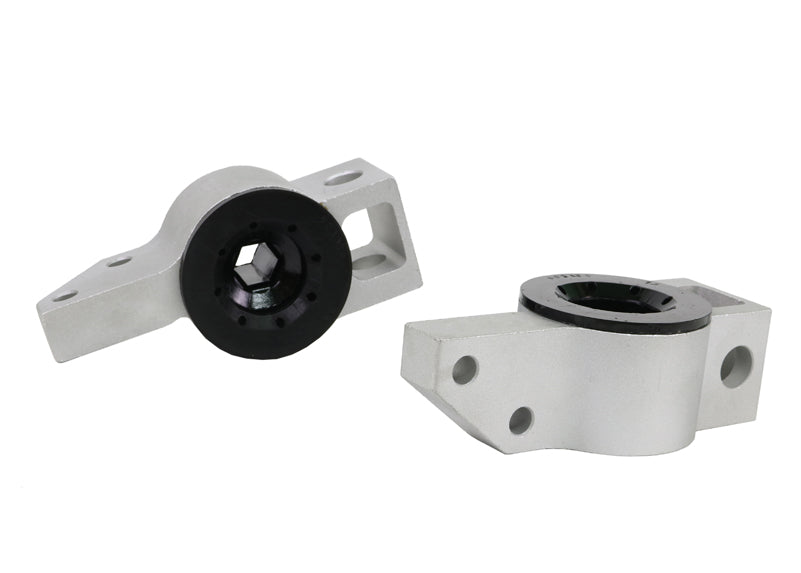

This Whiteline Front Control Arm Lower Inner Rear Bushing (Incl. New Housing) fits the 2008-2012 Audi S3. Application note: Standard Replacement: includes new housing. It is listed for the 8P chassis. This part is for the front of the vehicle. Order it as part number W53514. You receive 2 housings.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as easy and lists about 2 hours. An alignment is required after installation. To go with it on the Audi S3, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.
Features
- Install guide: Step-by-step installation instructions come with it.
- Material: Made from polyurethane.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
| Part Number | W53514 |
| Part Name | Control Arm Bushing |
| Vehicle | 2008-2012 Audi S3 |
| Drivetrain | AWD |
| Chassis Code | 8P |
| Bushing 1 Inner Diameter | 18.8 mm |
| Bushing 1 Length | 39.5 mm |
| Bushing 1 Outer Diameter | 29 mm |
| Bushing 2 Inner Diameter | 29 mm |
| Bushing 2 Length | 55 mm |
| Bushing 2 Outer Diameter | 65.7 mm |
| Bushing Quantity | 2 |
| Grade Type | Regular |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 2 |
| Kit Contents | 2 Housings |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 29 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement - includes new housing |
Fitment for S3 control arm bushings
Fits the 2008-2012 Audi S3. Each model year is listed below.
