Product Details

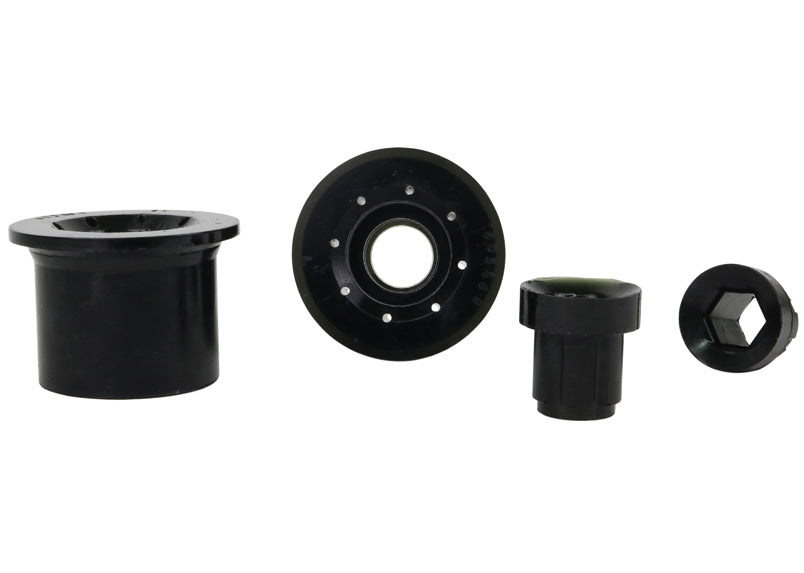

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2009-2015 Audi TTS Quattro. Placement: front. You receive 2 bushings. Trim named on the listing: Quattro. Application note: Standard Replacement. Part number W53196.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated difficult, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Audi TTS, see Adjustable Rear Sway Bar Link, Front Steering Rack And Pinion Mount Bushing, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar.
Features
- Install guide: Instructions for fitting are packed in the box.
- Material: Built from polyurethane.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
| Part Number | W53196 |
| Part Name | Control Arm Bushing |
| Vehicle | 2009-2015 Audi TTS Quattro |
| Chassis Code | 8J |
| Bushing 1 Inner Diameter | 38.5 mm |
| Bushing 1 Outer Diameter | 62.2 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
Fitment for TTS control arm bushings
Fits the 2009-2015 Audi TTS Quattro. Each model year is listed below.
