Product Details

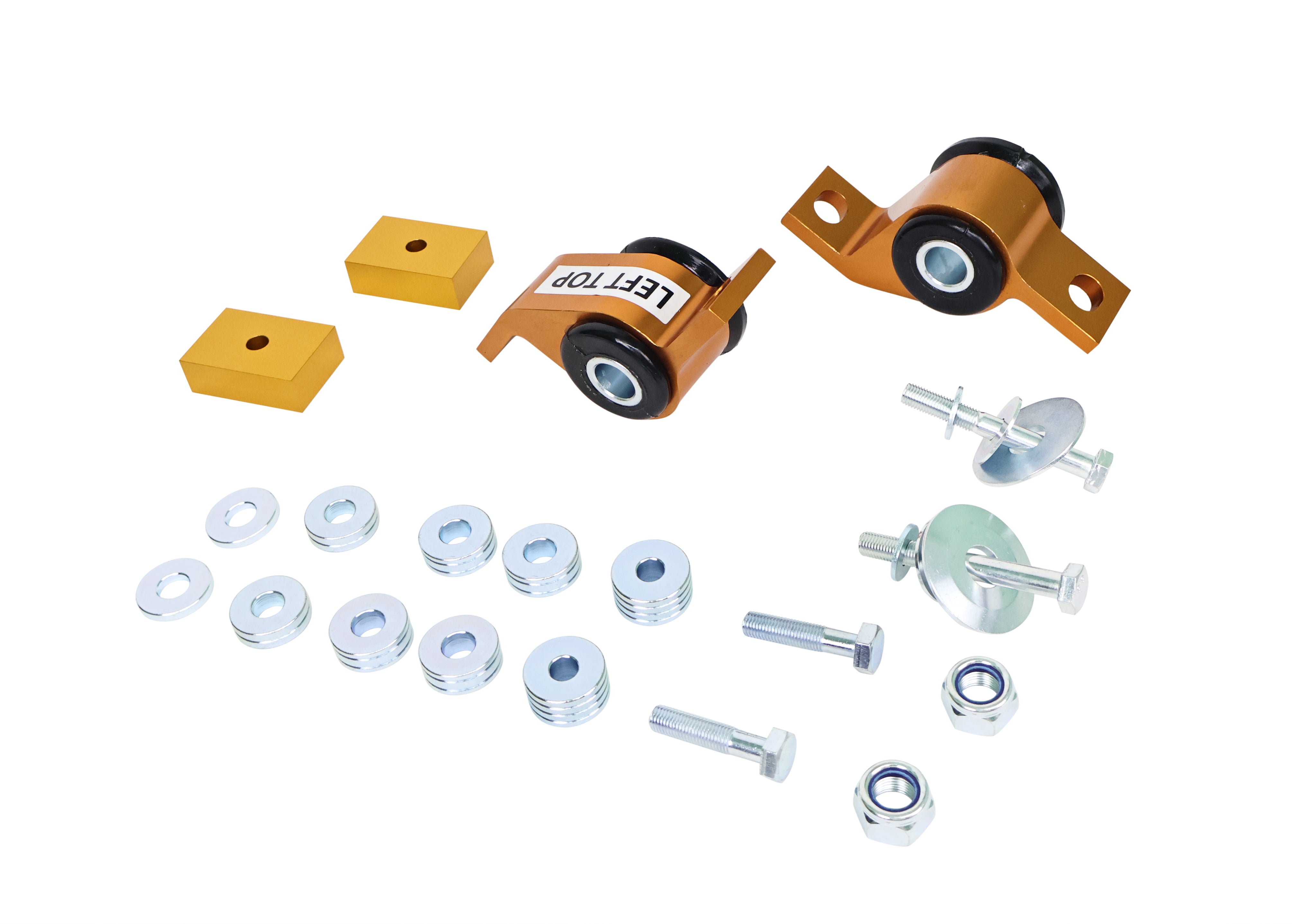

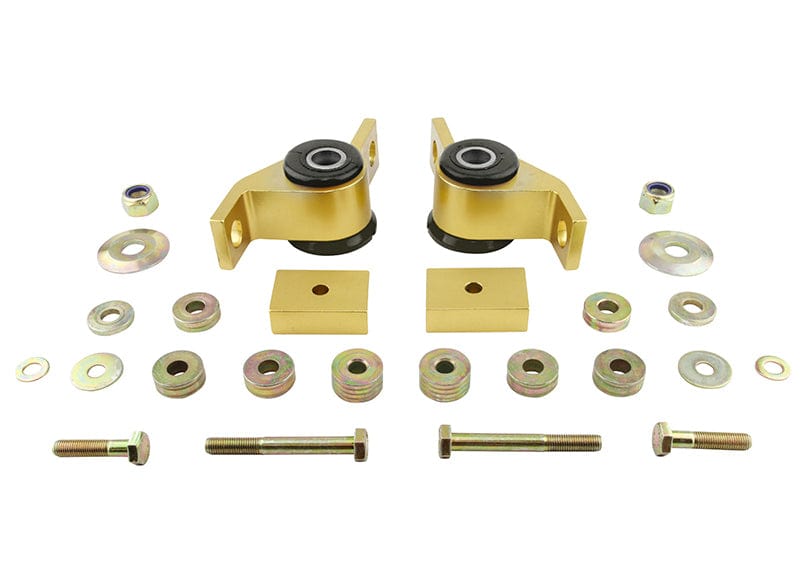

This Whiteline Front Control Arm Lower Inner Rear Bushing Comfort fits the 2005-2006 Saab 9-2X Aero (GD/GG). This part is for the front of the vehicle. Whiteline part number: KCA362. Application note: Adds 0.5 Caster & Anti Lift Comfort Option Uses 75 Duro Bushing. Included: 2 housings, 12 spacers, 4 bolts, and 6 washers.
This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.
Whiteline rates the install as difficult and lists about 2.5 hours. An alignment is required after installation. To go with it on the 9-2X, see Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Strut Tower Brace Quick Release Kit.
Features
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Material: Made from polyurethane.
- Hardware: Also in the box: mounting hardware.
- Install guide: An install guide comes in the box.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Finish: Powder coating covers the metal for protection against chips and rust.
Specifications
| Part Number | KCA362 |
| Part Name | Control Arm Bushing |
| Vehicle | 2005-2006 Saab 9-2X Aero |
| Chassis Code | GD/GG |
| Bushing 1 Inner Diameter | 20 mm |
| Bushing 1 Length | 52.5 mm |
| Bushing 1 Outer Diameter | 39.5 mm |
| Bushing 2 Inner Diameter | 20 mm |
| Bushing 2 Length | 52.5 mm |
| Bushing 2 Outer Diameter | 39.5 mm |
| Bushing Quantity | 2 |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Housings, 12 Spacers, 4 Bolts, 6 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Outside Diameter | 39.5 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5 Caster & Anti Lift Comfort Option Uses 75 Duro Bushing |
