Product Details

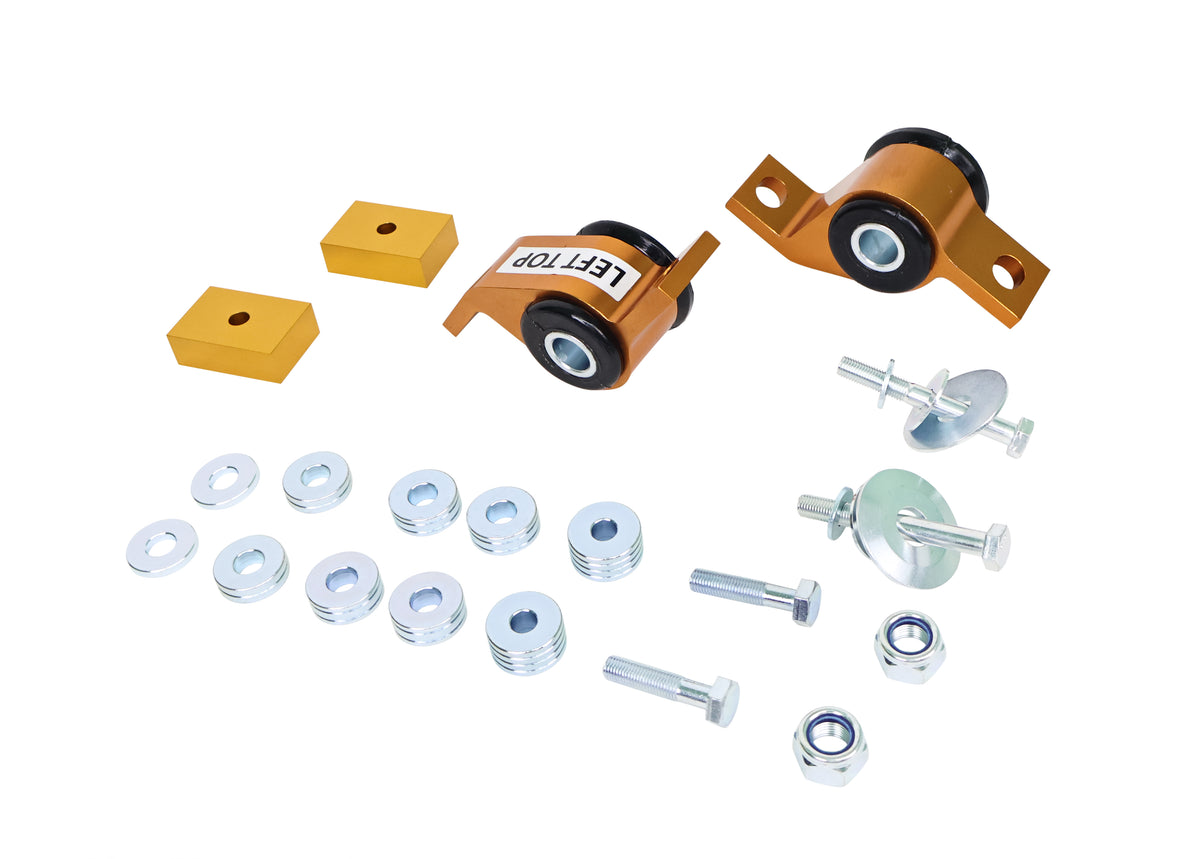

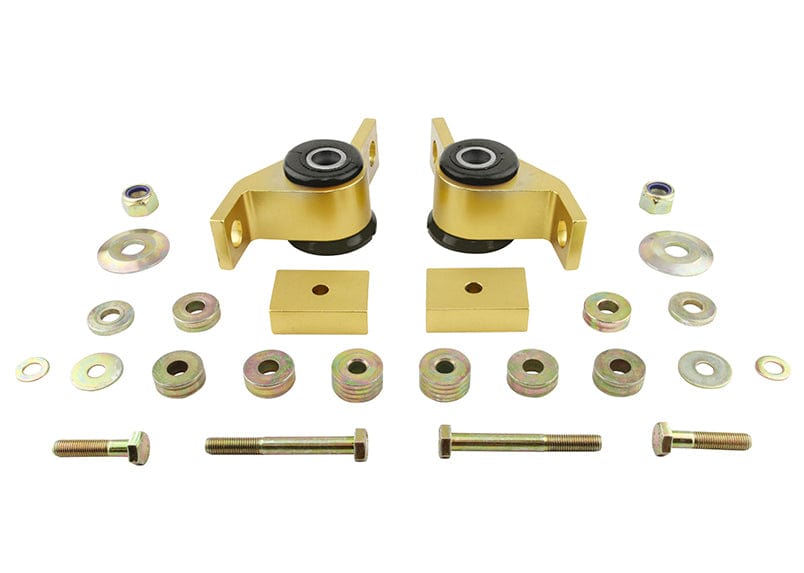

This Whiteline Front Control Arm Lower Inner Rear Bushing Comfort fits the 2002-2007 Subaru Impreza WRX (GD/GG). Whiteline's note for this fit: Adds 0.5 Caster & Anti Lift Comfort Option Uses 75 Duro Bushing. Whiteline part number: KCA362. This part is for the front of the vehicle. Included: 2 housings, 12 spacers, 4 bolts, and 6 washers.
A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.
Installation is rated difficult, with about 2.5 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Impreza WRX: 14mm Adjustable Front Camber Bolts, Front Strut Tower Brace Quick Release Kit, and Rear Trailing Arm Lower Front Bushing.
Features
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Material: Polyurethane construction.
- Hardware: Also in the box: mounting hardware.
- Install guide: An install guide comes in the box.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
Specifications
| Part Number | KCA362 |
| Part Name | Control Arm Bushing |
| Vehicle | 2002-2007 Subaru Impreza WRX |
| Drivetrain | AWD |
| Chassis Code | GD/GG |
| Bushing 1 Inner Diameter | 20 mm |
| Bushing 1 Length | 52.5 mm |
| Bushing 1 Outer Diameter | 39.5 mm |
| Bushing 2 Inner Diameter | 20 mm |
| Bushing 2 Length | 52.5 mm |
| Bushing 2 Outer Diameter | 39.5 mm |
| Bushing Quantity | 2 |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Housings, 12 Spacers, 4 Bolts, 6 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Outside Diameter | 39.5 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5 Caster & Anti Lift Comfort Option Uses 75 Duro Bushing |
