Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) for 2005-2010 Volkswagen Passat (B6) KCA316
Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) for the Volkswagen Passat

Whiteline

|

SKU: KCA316

Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) for 2005-2010 Volkswagen Passat (B6)

$220.39

MSRP $244.88 You save $24.49

Ask a question
In stock, ready to ship

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

All Whiteline products, except those listed below, are covered by a lifetime warranty against manufacturing defects in material and workmanship, valid for the original vehicle the product was installed on.

Whiteline Ball Joints, Tie Rod Ends, Bearings, Links and Springs are covered for 3 years or 60,000 km (36,000 miles), whichever comes first.

Exclusions
The warranty does not cover:

  • Incorrect installation or misuse.
  • Modification or alteration of parts.
  • Damage due to competition, motorsport, or off-road use.
  • Wear and tear from normal use.
  • Accidental or collision damage.

More Information

Product Details

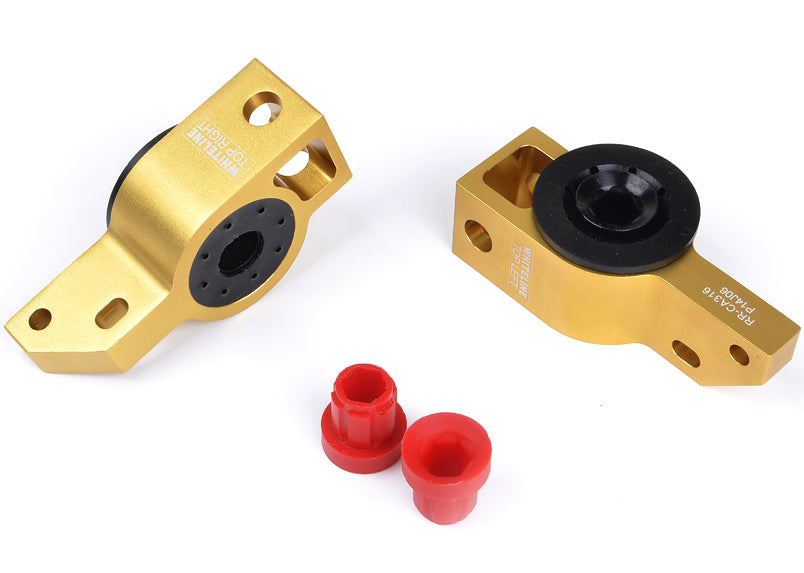

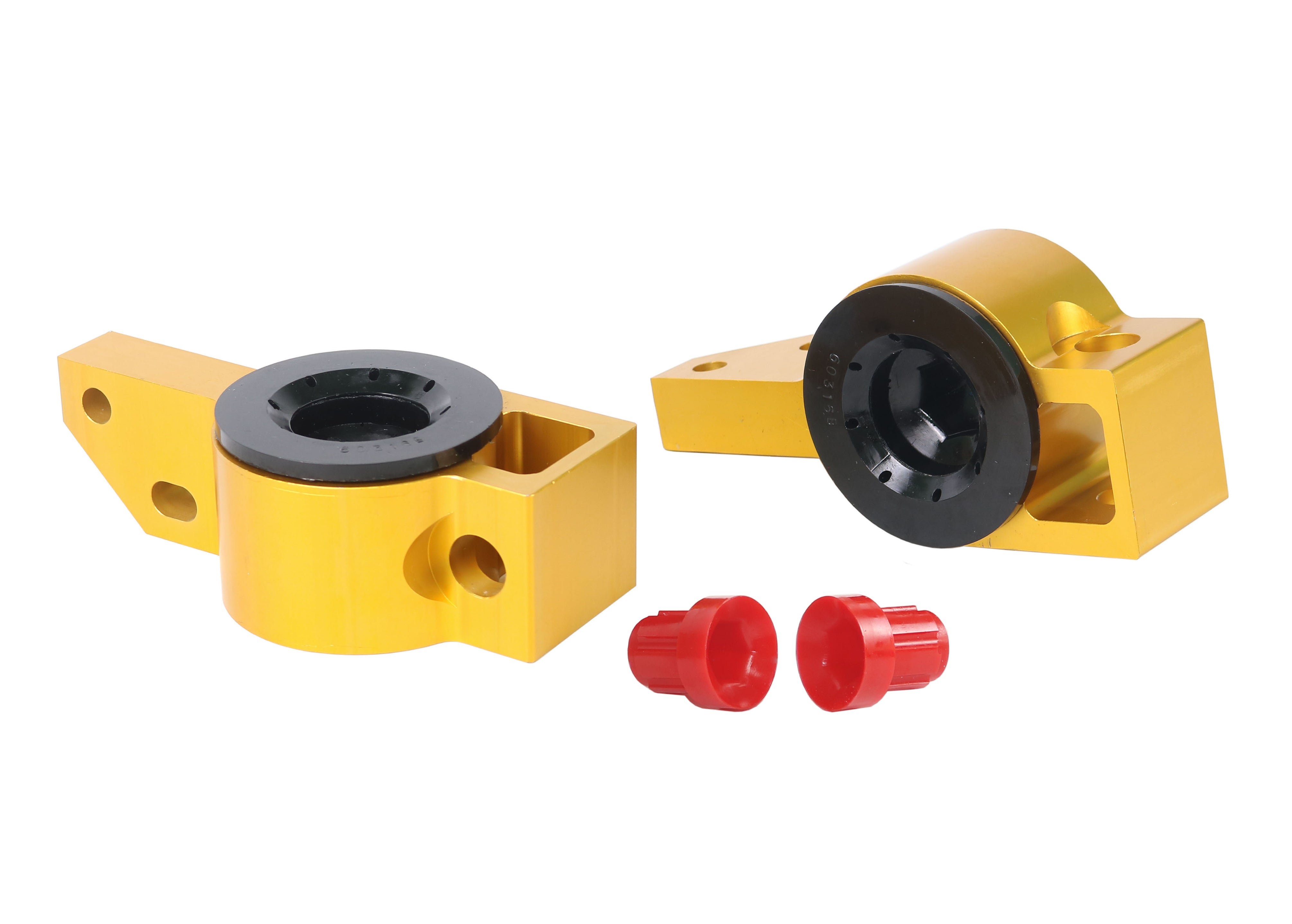

This Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) fits the 2005-2010 Volkswagen Passat. Whiteline part number: KCA316. Application note: Adds +0.5 degrees Caster + Anti-Lift. You receive 2 housings. Position: front.

A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.

Installation is rated difficult, with about 2 hours of work listed. Plan on a wheel alignment afterward. To go with it on the Passat, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Caster: Caster is optimized for stable steering and good contact through roll.
  • Install guide: Whiteline packs an install guide with it.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
Part Number KCA316
Part Name Control Arm Bushing
Vehicle 2005-2010 Volkswagen Passat
Chassis Code B6
Drivetrain AWD/FWD
Bushing 1 Inner Diameter 18.8 mm
Bushing 1 Length 39.5 mm
Bushing 1 Outer Diameter 29 mm
Bushing 2 Inner Diameter 29 mm
Bushing 2 Length 55 mm
Bushing 2 Outer Diameter 65.7 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Color Gold
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Housings
Material 6061-T6 Billet Aluminum
Mounting Hardware Included No
Outside Diameter 29 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degree Caster + Anti-Lift
Fitment for Passat control arm bushings

Fits the 2005-2010 Volkswagen Passat. Each model year is listed below.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005VolkswagenPassatAWDAdds +0.5 Degree Caster + Anti-Lift
2005VolkswagenPassatFWDAdds +0.5 Degree Caster + Anti-Lift
2006VolkswagenPassatAWDAdds +0.5 Degree Caster + Anti-Lift
2006VolkswagenPassatFWDAdds +0.5 Degree Caster + Anti-Lift
2007VolkswagenPassatAWDAdds +0.5 Degree Caster + Anti-Lift
2007VolkswagenPassatFWDAdds +0.5 Degree Caster + Anti-Lift
2008VolkswagenPassatAWDAdds +0.5 Degree Caster + Anti-Lift
2008VolkswagenPassatFWDAdds +0.5 Degree Caster + Anti-Lift
2009VolkswagenPassatAWDAdds +0.5 Degree Caster + Anti-Lift
2009VolkswagenPassatFWDAdds +0.5 Degree Caster + Anti-Lift
2010VolkswagenPassatAWDAdds +0.5 Degree Caster + Anti-Lift
2010VolkswagenPassatFWDAdds +0.5 Degree Caster + Anti-Lift
