Product Details

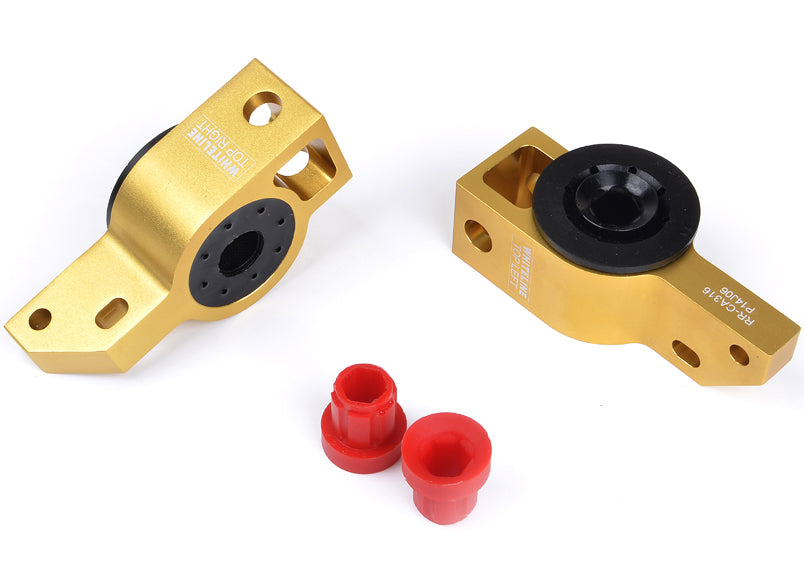

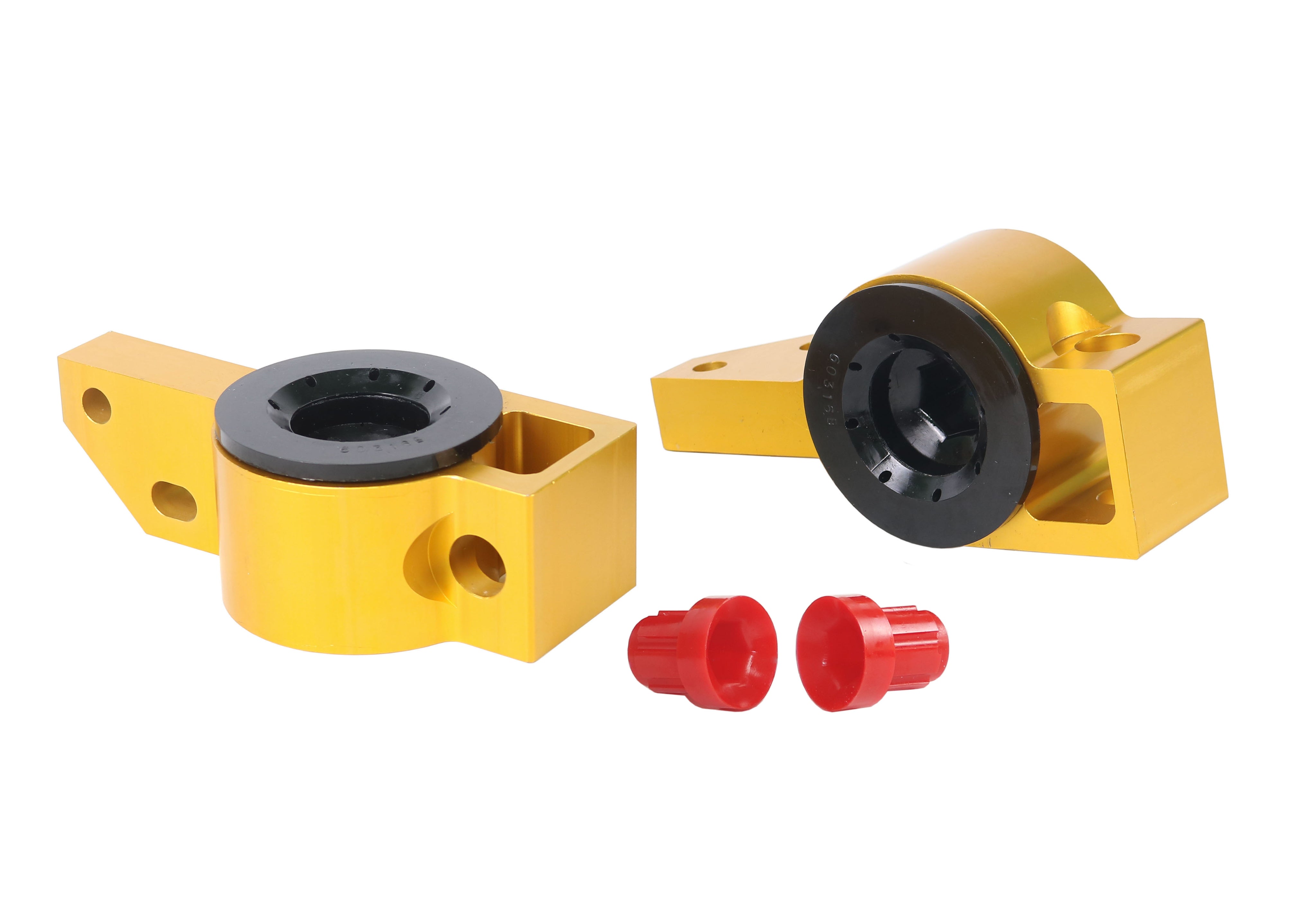

This Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) fits the 2004-2013 Audi A3 Quattro. Position: front. You receive 2 housings. Whiteline's note for this fit: Adds +0.5 degrees Caster + Anti-Lift. Whiteline part number: KCA316. The listing names the Quattro trim. The chassis code on the listing is 8P.
This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.
Expect a difficult job of about 2 hours. Plan on a wheel alignment afterward. Working on the same car? We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit for the Audi A3.
Features
- Install guide: An install guide comes in the box.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Bump steer: Designed to reduce unwanted bump steer and improve steering behavior.
- Bushing material: Polyurethane bushings flex far less than rubber ones.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Caster: Optimizes caster for better contact during roll and more stable steering.
Specifications
| Part Number | KCA316 |
| Part Name | Control Arm Bushing |
| Vehicle | 2004-2013 Audi A3 Quattro |
| Chassis Code | 8P |
| Bushing 1 Inner Diameter | 18.8 mm |
| Bushing 1 Length | 39.5 mm |
| Bushing 1 Outer Diameter | 29 mm |
| Bushing 2 Inner Diameter | 29 mm |
| Bushing 2 Length | 55 mm |
| Bushing 2 Outer Diameter | 65.7 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 2 |
| Color | Gold |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2 |
| Kit Contents | 2 Housings |
| Material | 6061-T6 Billet Aluminum |
| Mounting Hardware Included | No |
| Outside Diameter | 29 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds +0.5 Degree Caster + Anti-Lift |
