Product Details

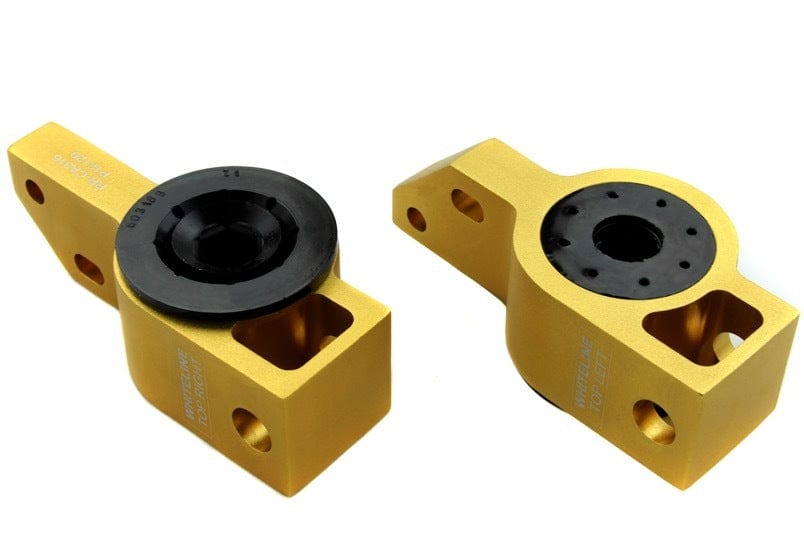

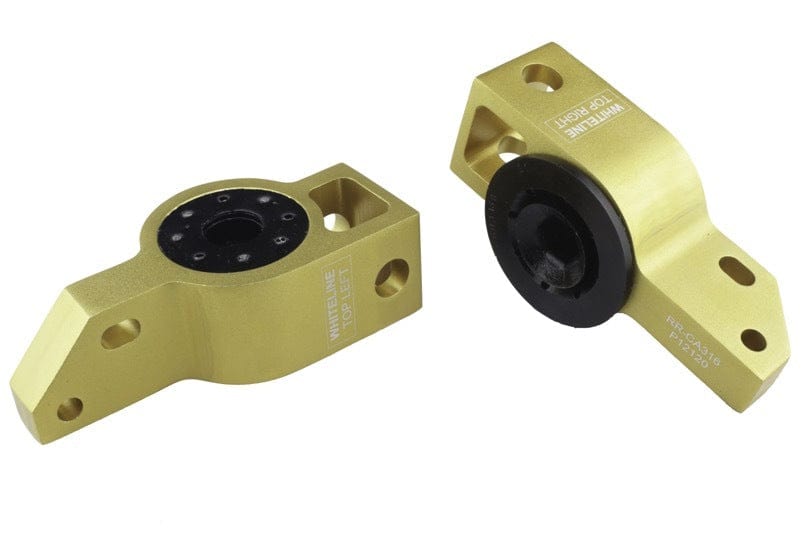

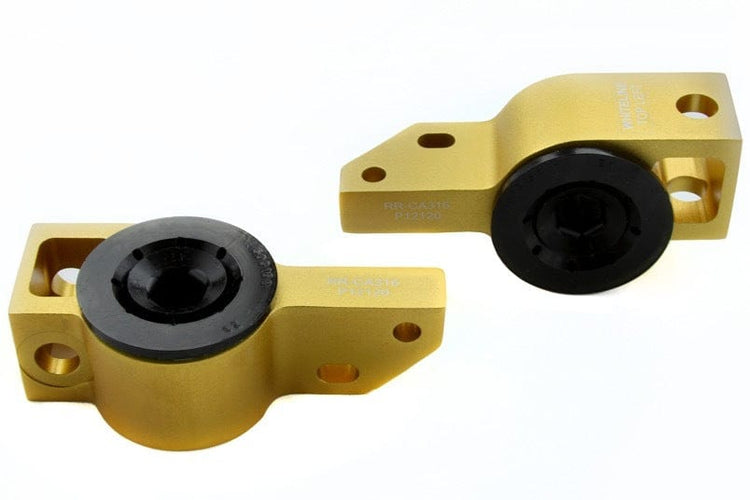

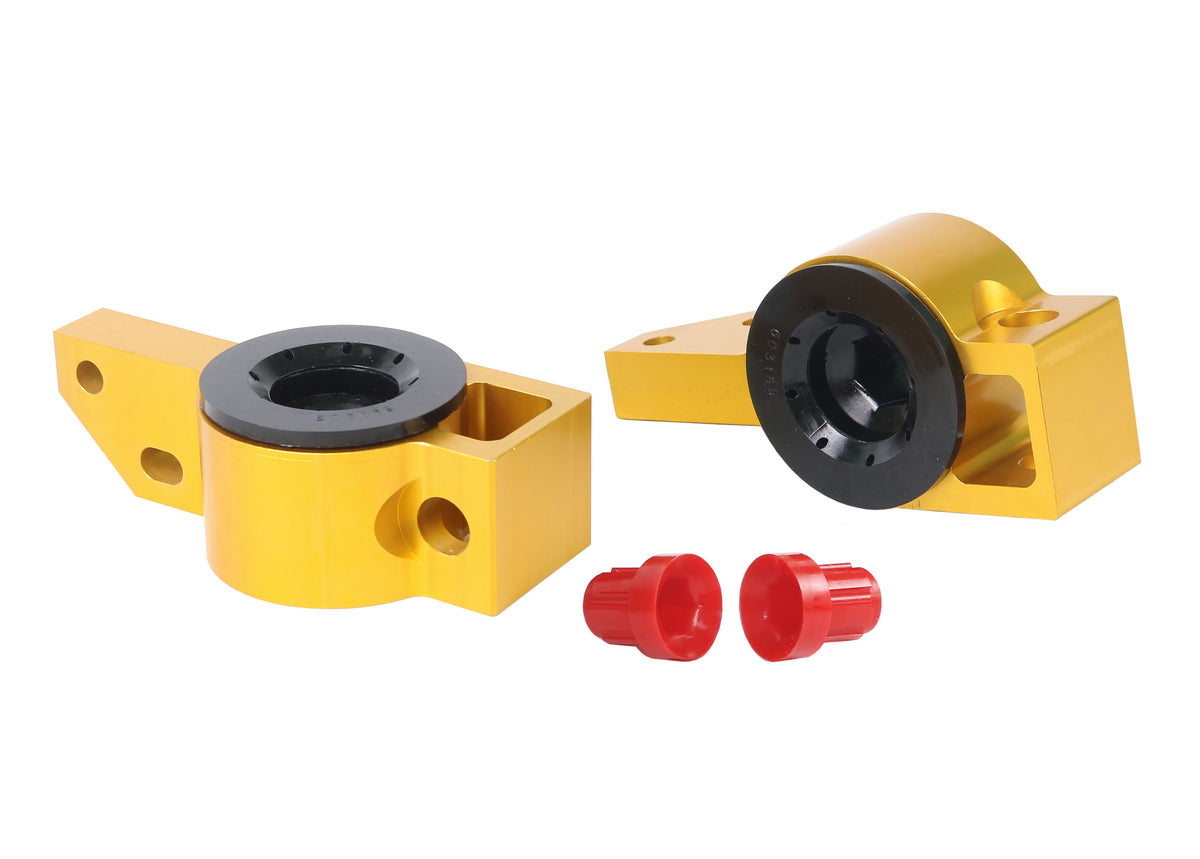

This Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) fits the 2010 Volkswagen Tiguan Wolfsburg Edition (5N). Included: 2 housings. It goes on the front of the vehicle. The part number is KCA316. Application note: Adds +0.5 degrees Caster + Anti-Lift.

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Expect a difficult job of about 2 hours. Plan on a wheel alignment afterward. To go with it on the Tiguan, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Install guide: Whiteline packs an install guide with it.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Caster: Adds caster for steadier steering and better tire contact in roll.
  • Bump steer: Designed to reduce unwanted bump steer and improve steering behavior.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
Part Number KCA316
Part Name Control Arm Bushing
Vehicle 2010 Volkswagen Tiguan Wolfsburg Edition
Chassis Code 5N
Bushing 1 Inner Diameter 18.8 mm
Bushing 1 Length 39.5 mm
Bushing 1 Outer Diameter 29 mm
Bushing 2 Inner Diameter 29 mm
Bushing 2 Length 55 mm
Bushing 2 Outer Diameter 65.7 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Color Gold
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Housings
Material 6061-T6 Billet Aluminum
Mounting Hardware Included No
Outside Diameter 29 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degree Caster + Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010VolkswagenTiguanFWDAdds +0.5 Degree Caster + Anti-Lift
