Product Details

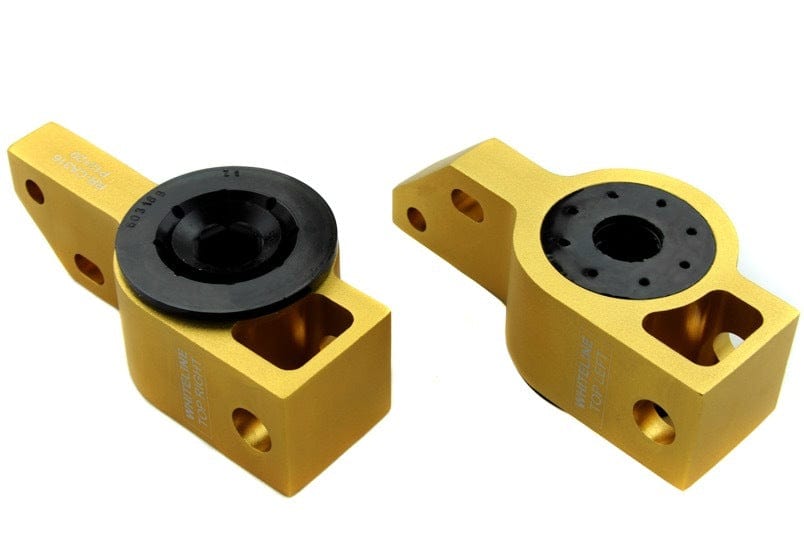

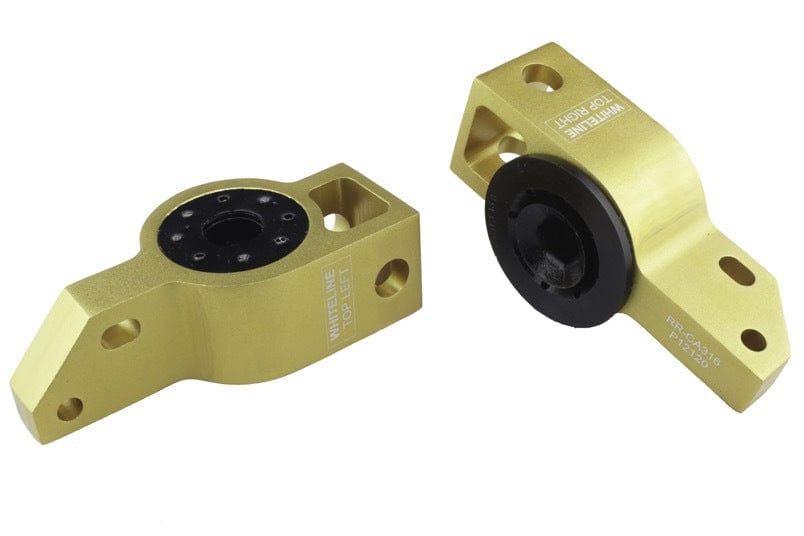

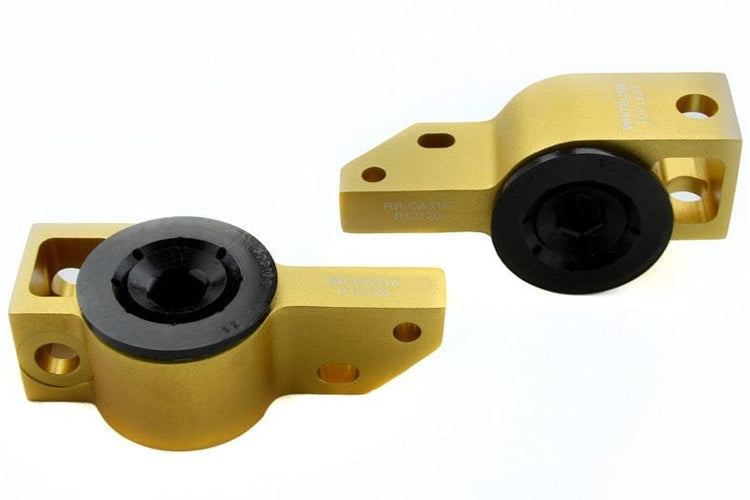

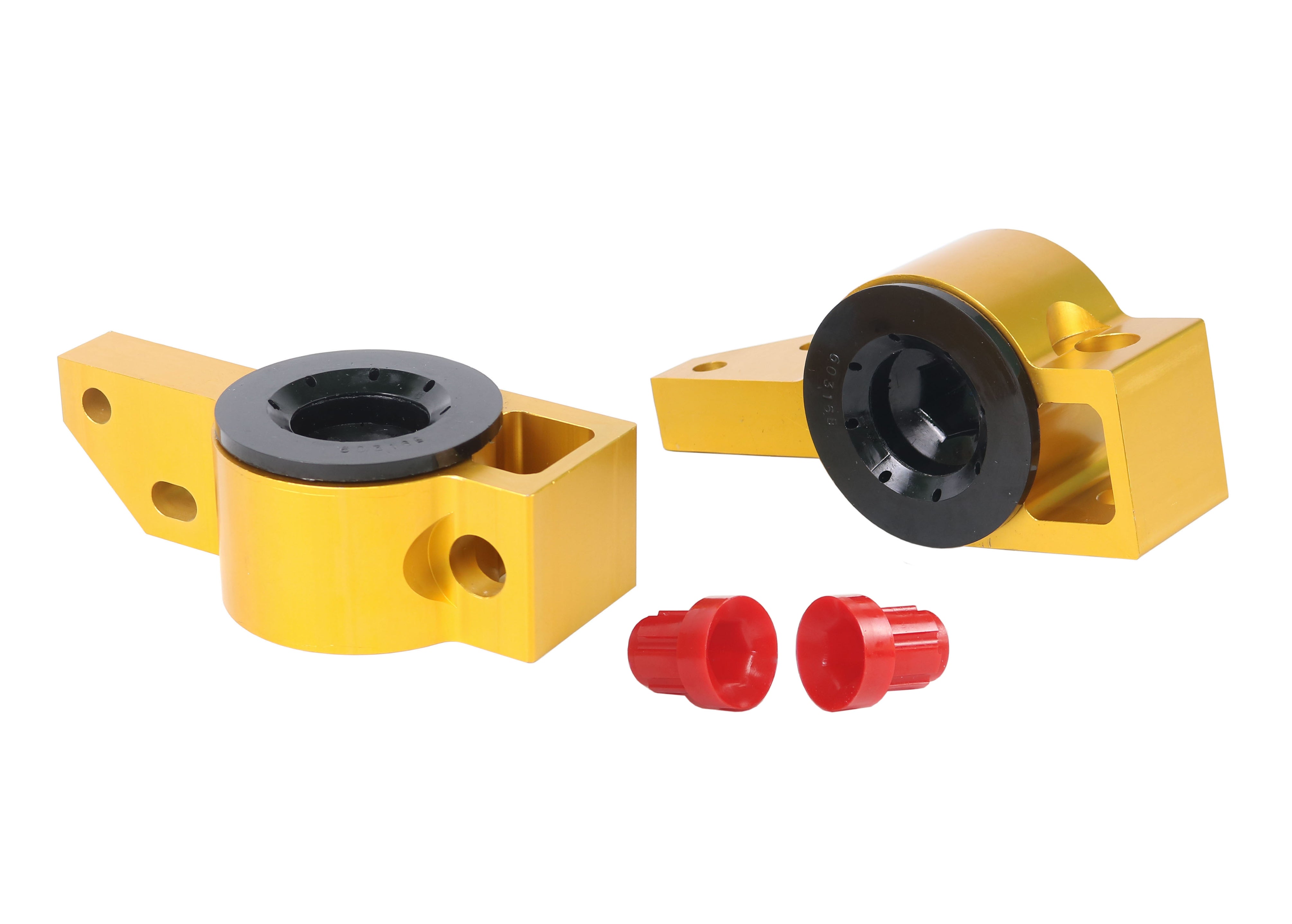

This Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) fits the 2008 Volkswagen Golf/GTI R32 (1K). Whiteline's note for this fit: Adds +0.5 degrees Caster + Anti-Lift. Included: 2 housings. It goes on the front of the vehicle. Part number KCA316.

A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.

Expect a difficult job of about 2 hours. An alignment is required after installation. Other Whiteline parts we list for the Golf/GTI R32: Adjustable Front Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Bump steer: Designed to reduce unwanted bump steer and improve steering behavior.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Caster: Caster is optimized for stable steering and good contact through roll.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Install guide: Whiteline packs an install guide with it.
Specifications
Part Number KCA316
Part Name Control Arm Bushing
Vehicle 2008 Volkswagen Golf/GTI R32
Chassis Code 1K
Bushing 1 Inner Diameter 18.8 mm
Bushing 1 Length 39.5 mm
Bushing 1 Outer Diameter 29 mm
Bushing 2 Inner Diameter 29 mm
Bushing 2 Length 55 mm
Bushing 2 Outer Diameter 65.7 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Color Gold
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Housings
Material 6061-T6 Billet Aluminum
Mounting Hardware Included No
Outside Diameter 29 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degree Caster + Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenGolfFWDAdds +0.5 Degree Caster + Anti-Lift
2008VolkswagenGTIFWDAdds +0.5 Degree Caster + Anti-Lift
2008VolkswagenR32FWDAdds +0.5 Degree Caster + Anti-Lift
