Product Details

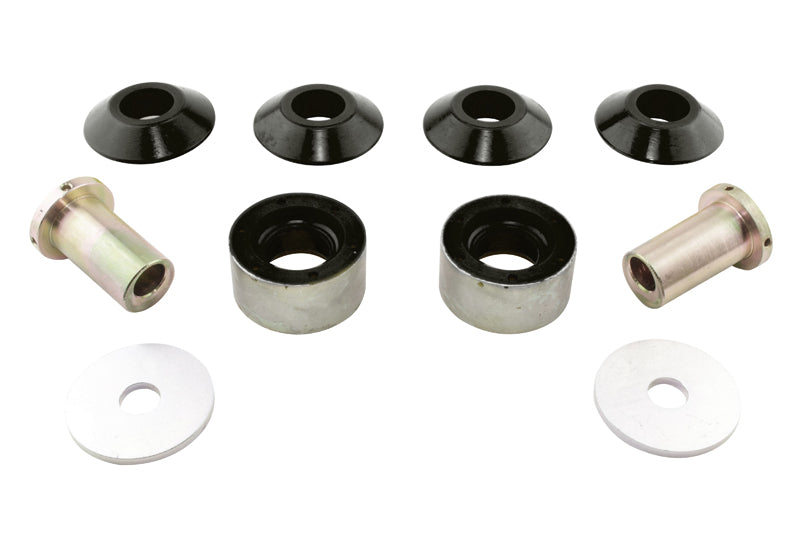

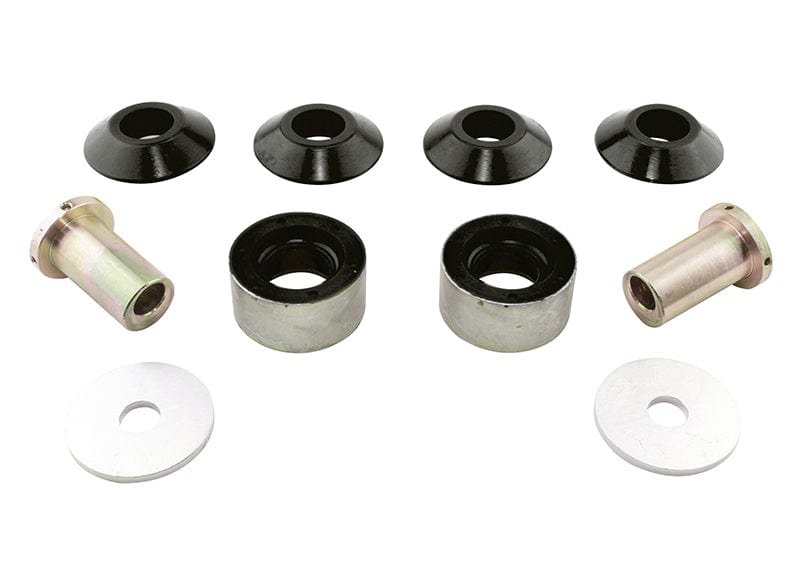

This Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) fits the 2006 Subaru Outback R VDC Limited (BP/BR). Chassis code: BP/BR. Position: front. In the box: 2 shell bushings, 4 bushings, 2 tubes, and 2 washers. Whiteline part number: KCA334. Application note: Adds +0.5 degrees Caster + Anti-Lift.

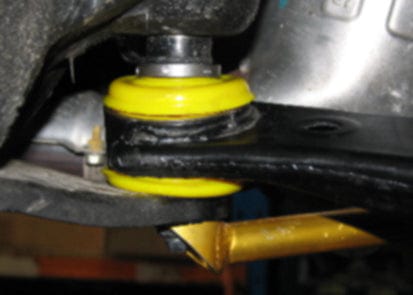

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Whiteline rates the install as difficult and lists about 3 hours. Get the car aligned once it is back on the ground. To go with it on the Outback, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Install guide: Written install instructions are included with the part.
  • Bonded design: A bonded design adds strength for high load applications.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Caster: Adds caster to improve turn-in and directional stability.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
Part Number KCA334
Part Name Control Arm Bushing
Vehicle 2006 Subaru Outback R VDC Limited
Chassis Code BP/BR
Bushing 1 Inner Diameter 17.2 mm
Bushing 1 Outer Diameter 60 mm
Bushing Quantity 2 Shell Bushings, 4 Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 4 Bushings, 2 Tubes, 2 Washers
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degrees Caster + Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006SubaruOutbackAWDAdds +0.5 Degrees Caster + Anti-Lift
