Product Details

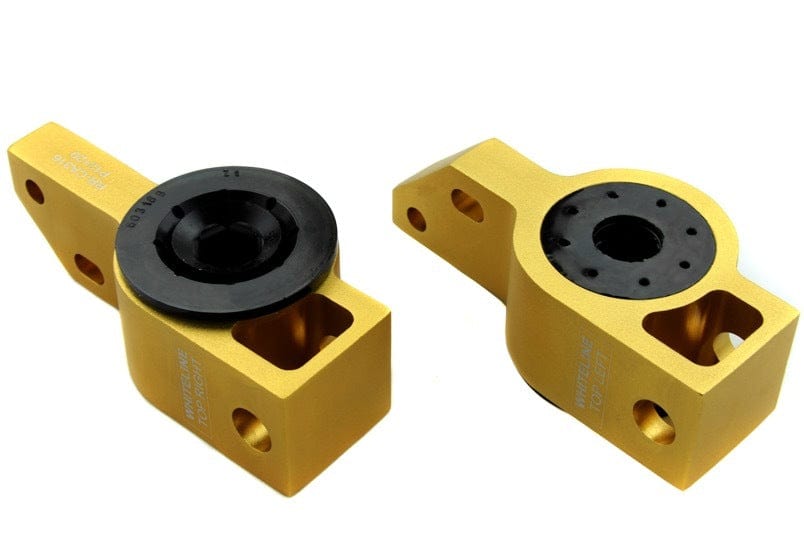

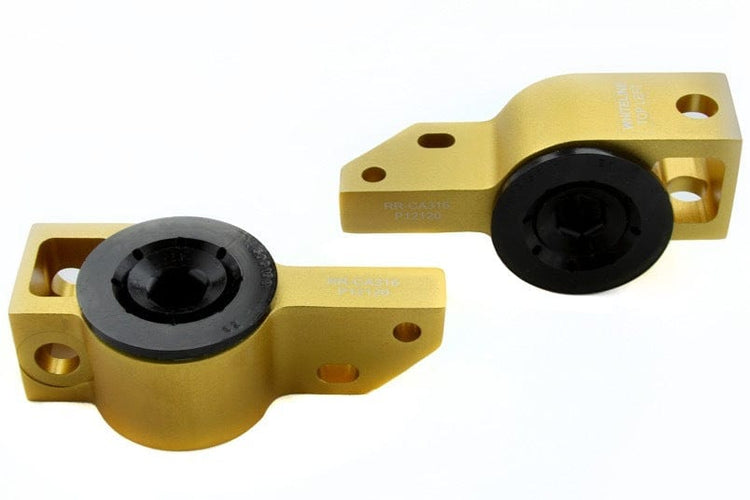

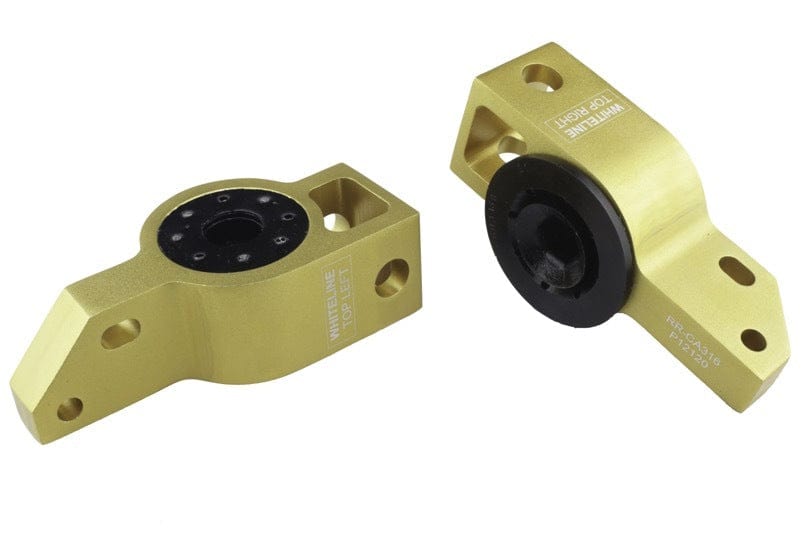

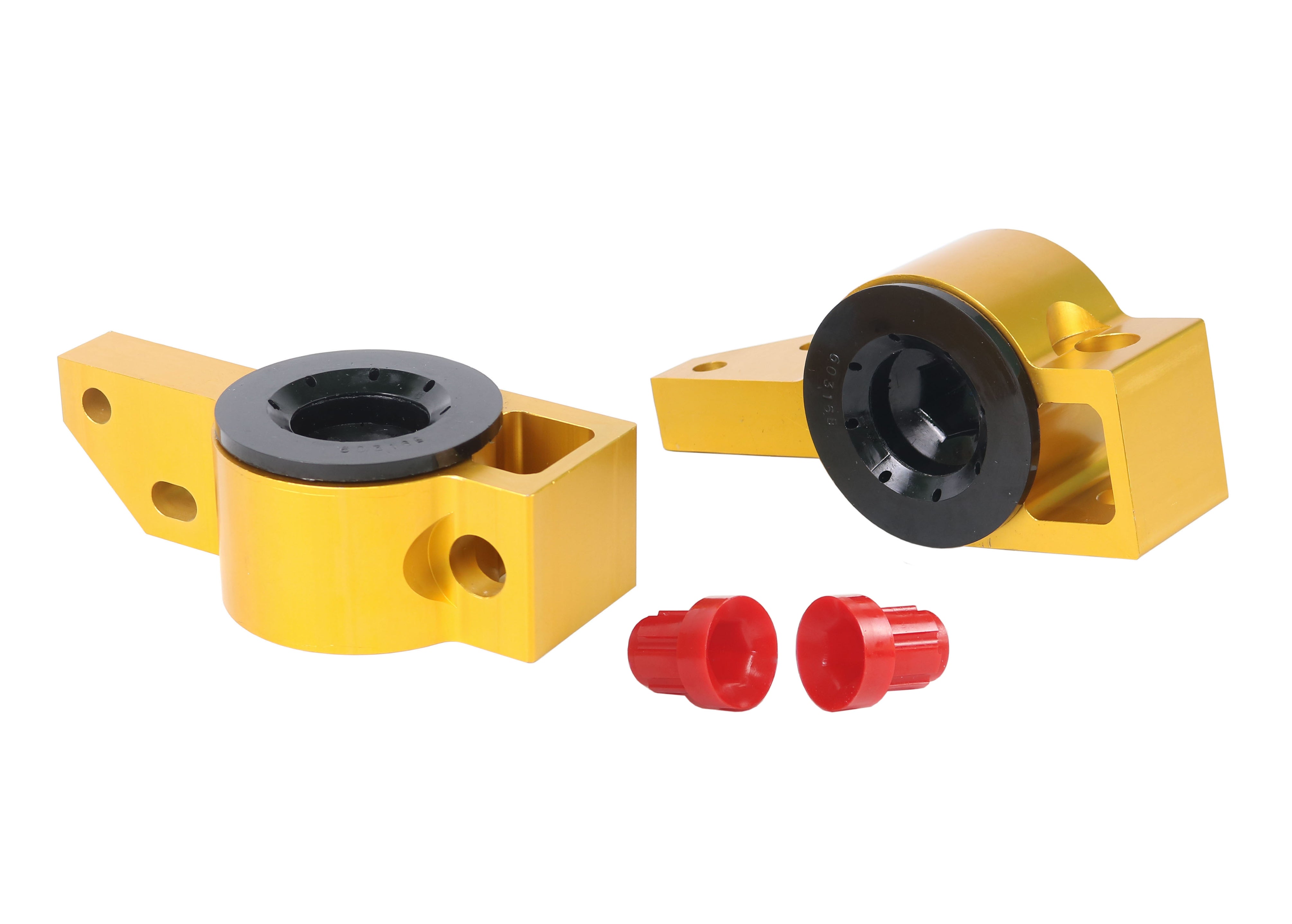

This Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) fits the 2006-2007 Volkswagen Rabbit 2.5 (1K). Whiteline part number: KCA316. Whiteline's note for this fit: Adds +0.5 degrees Caster + Anti-Lift. Placement: front. Included: 2 housings.

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Whiteline rates the install as difficult and lists about 2 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Rabbit: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Caster: Optimizes caster for better contact during roll and more stable steering.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Bump steer: Helps cut bump steer for steadier steering over bumps.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
Part Number KCA316
Part Name Control Arm Bushing
Vehicle 2006-2007 Volkswagen Rabbit 2.5
Chassis Code 1K
Bushing 1 Inner Diameter 18.8 mm
Bushing 1 Length 39.5 mm
Bushing 1 Outer Diameter 29 mm
Bushing 2 Inner Diameter 29 mm
Bushing 2 Length 55 mm
Bushing 2 Outer Diameter 65.7 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Color Gold
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Housings
Material 6061-T6 Billet Aluminum
Mounting Hardware Included No
Outside Diameter 29 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degree Caster + Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006VolkswagenRabbitFWDAdds +0.5 Degree Caster + Anti-Lift
2007VolkswagenRabbitFWDAdds +0.5 Degree Caster + Anti-Lift
