Product Details

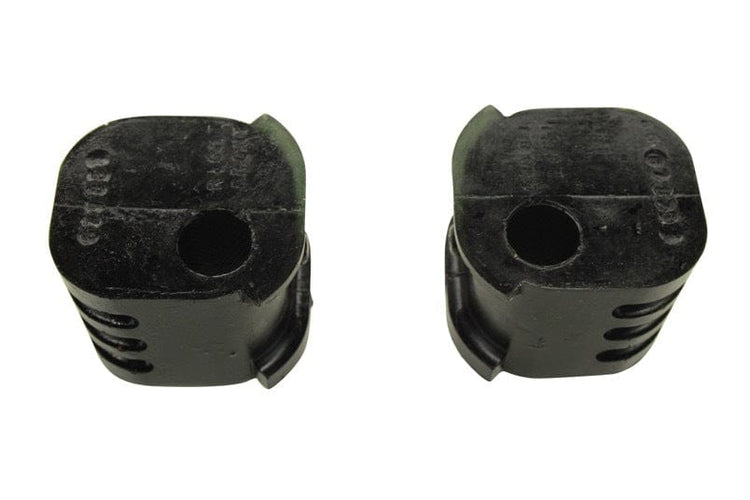

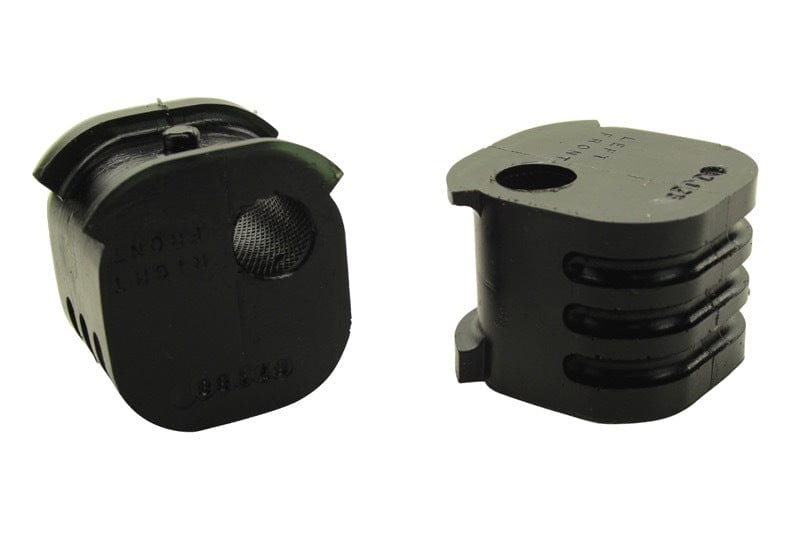

This Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift) fits the 1997-2002 Mitsubishi Mirage DE (CJ/CK). Included: 2 bushings. It goes on the front of the vehicle. Whiteline's note for this fit: Adds +0.5 degrees Caster + Anti-Lift. Part number KCA317X.

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Installation is rated difficult, with about 2.5 hours of work listed. Get the car aligned once it is back on the ground. We also list Front Sway Bar Washer Kit, Front Strut Tower Brace Quick Release Kit, and Front Sway Bar Link Bushing (28.5mm OD) for the Mirage.

Features

  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Install guide: Instructions for fitting are packed in the box.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Anodized alloy: The alloy carries an anodized finish for durability.
Specifications
Part Number KCA317X
Part Name Control Arm Bushing
Vehicle 1997-2002 Mitsubishi Mirage DE
Chassis Code CJ/CK
Bushing 1 Inner Diameter 20.6 mm
Bushing 1 Outer Diameter 64 mm
Bushing 2 Outer Diameter 62 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2 Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 2 Bushings
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degree Caster + Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1997MitsubishiMirageFWDAdds +0.5 Degree Caster + Anti-Lift
1998MitsubishiMirageFWDAdds +0.5 Degree Caster + Anti-Lift
1999MitsubishiMirageFWDAdds +0.5 Degree Caster + Anti-Lift
2000MitsubishiMirageFWDAdds +0.5 Degree Caster + Anti-Lift
2001MitsubishiMirageFWDAdds +0.5 Degree Caster + Anti-Lift
2002MitsubishiMirageFWDAdds +0.5 Degree Caster + Anti-Lift
