Product Details

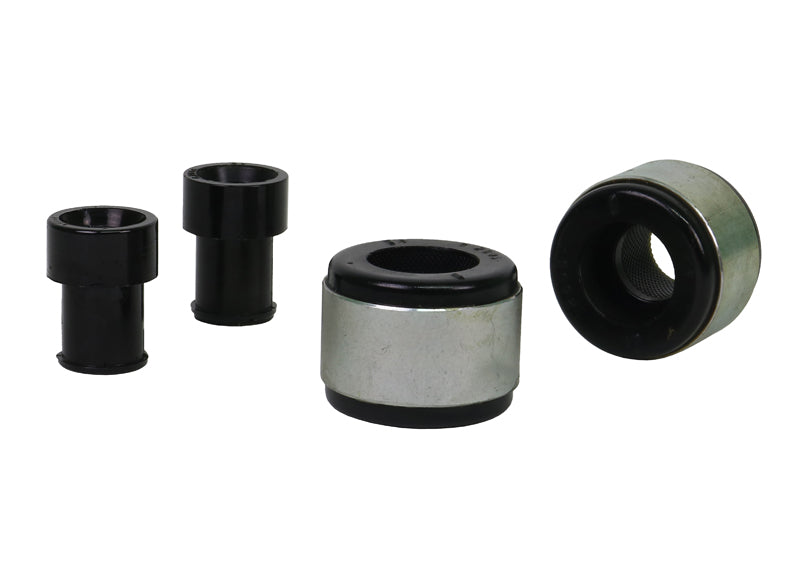

This Whiteline Front Control Arm Lower Inner Rear Bushing (66.3mm OD) fits the 2001-2006 BMW 330i 3 Series. You receive 2 shell bushings and 2 bushings. It goes on the front of the vehicle. Application note: Standard Replacement. Whiteline part number: W52605. Chassis code: E46.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 2.5 hours of work listed. Plan on a wheel alignment afterward. To go with it on the 330i 3 Series, see Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front Strut Tower Brace Quick Release Kit.
Features
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Bonded design: A bonded design adds strength for high load applications.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Install guide: Whiteline packs an install guide with it.
- Material: Polyurethane construction.
Specifications
| Part Number | W52605 |
| Part Name | Control Arm Bushing |
| Vehicle | 2001-2006 BMW 330i 3 Series |
| Chassis Code | E46 |
| Bushing 1 Inner Diameter | 37.4 mm |
| Bushing 1 Outer Diameter | 66.3 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Shell Bushings, 2 Bushings |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | 66.3mm OD - Standard Replacement |
