Product Details

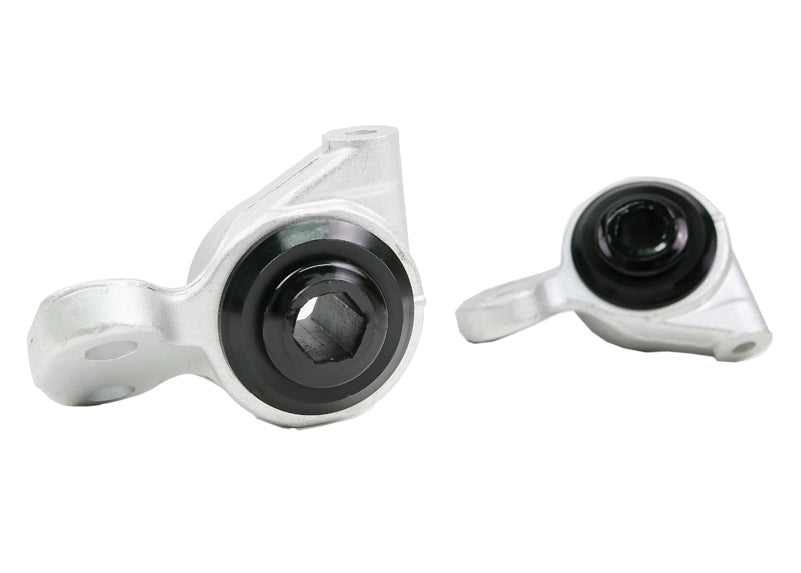

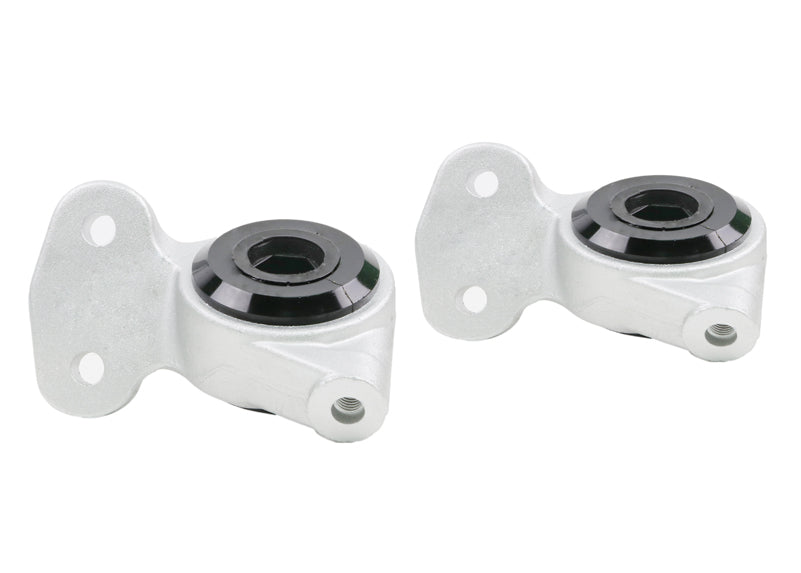

This Whiteline Front Control Arm Lower Inner Rear Bushing (60.3mm OD Incl. Housing) fits the 2001-2006 BMW 330xi 3 Series. It goes on the front of the vehicle. Order it as part number W53518. Application note: Includes new housing. In the box: 2 housings.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 2.5 hours of work listed. Plan on a wheel alignment afterward. To go with it on the 330xi 3 Series, see Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front Strut Tower Brace Quick Release Kit.
Features
- Material: The part is made of polyurethane.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
| Part Number | W53518 |
| Part Name | Control Arm Bushing |
| Vehicle | 2001-2006 BMW 330xi 3 Series |
| Chassis Code | E46 |
| Drivetrain | AWD |
| Bushing 1 Inner Diameter | 32 mm |
| Bushing 1 Length | 48 mm |
| Bushing 1 Outer Diameter | 60.3 mm |
| Bushing 2 Inner Diameter | 32 mm |
| Bushing 2 Length | 48 mm |
| Bushing 2 Outer Diameter | 60.3 mm |
| Bushing Quantity | 2 |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Housings |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 60.3 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | 60.3mm-Standard Replacement - includes new housing |
Fitment for 330xi control arm bushings
Fits the 2001-2006 BMW 330xi 3 Series. Each model year is listed below.
