Product Details

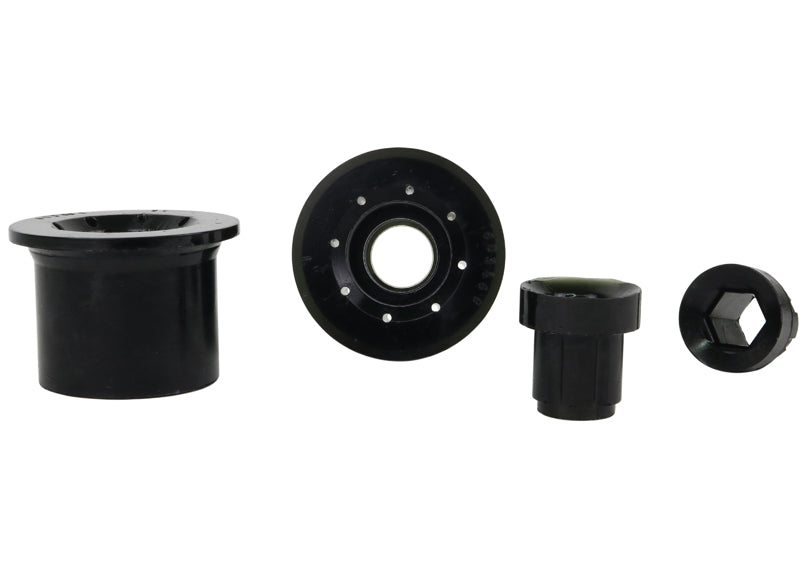

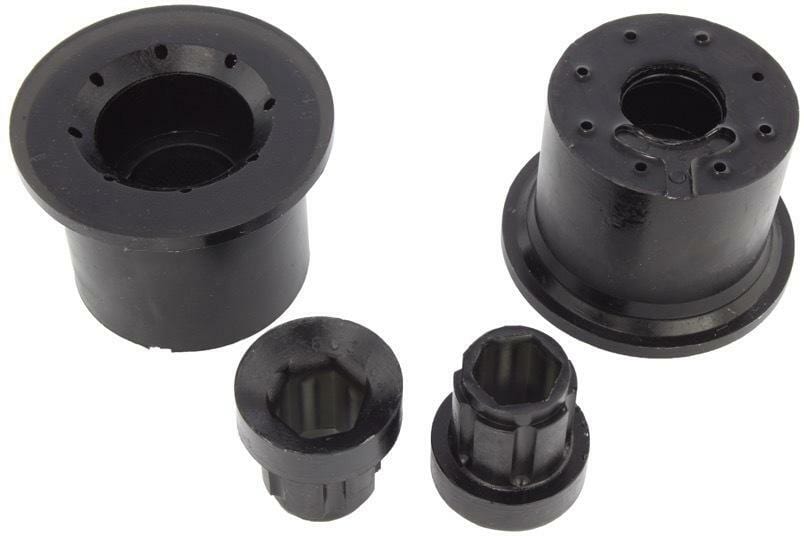

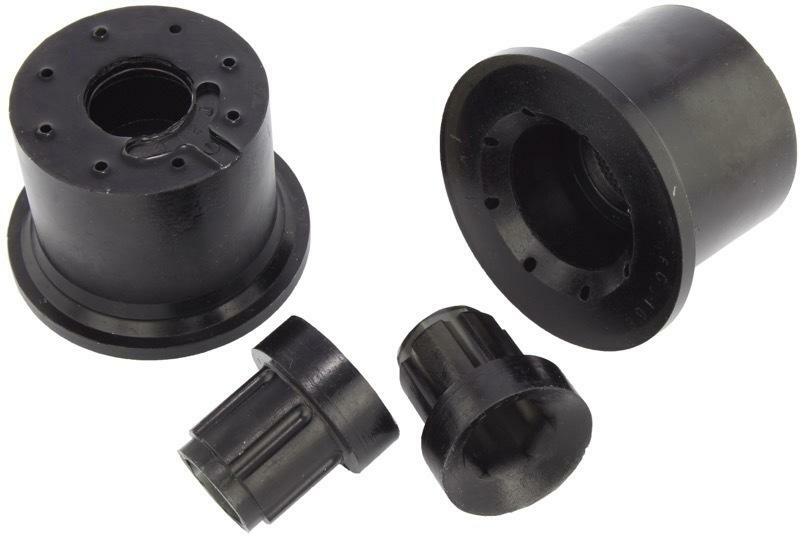

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2015 Volkswagen Eos Final Edition (1F). Whiteline's note for this fit: Standard Replacement. In the box: 2 bushings. This part is for the front of the vehicle. Order it as part number W53196. Chassis code: 1F.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a difficult job of about 3 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Volkswagen Eos: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Material: The part is made of polyurethane.
  • Install guide: Whiteline packs an install guide with it.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
Part Number W53196
Part Name Control Arm Bushing
Vehicle 2015 Volkswagen Eos Final Edition
Chassis Code 1F
Bushing 1 Inner Diameter 38.5 mm
Bushing 1 Outer Diameter 62.2 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 2 Bushings
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015VolkswagenEosFWDStandard Replacement
