Product Details

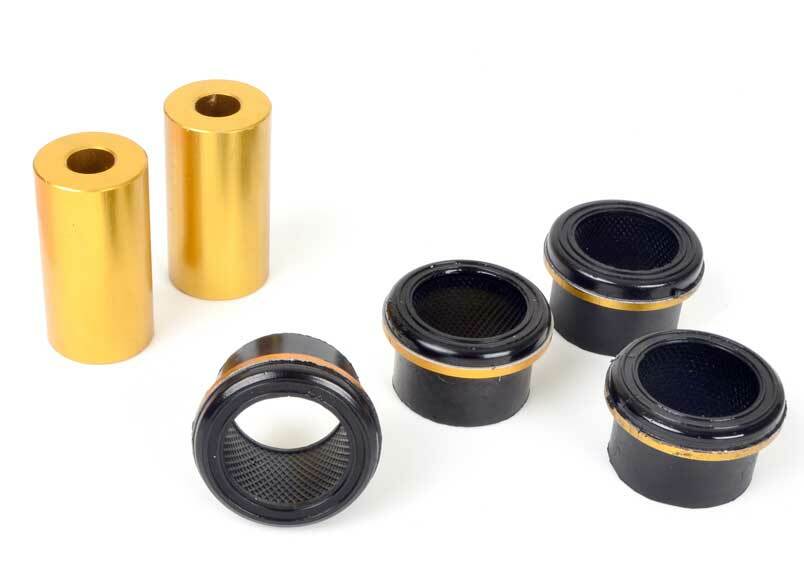

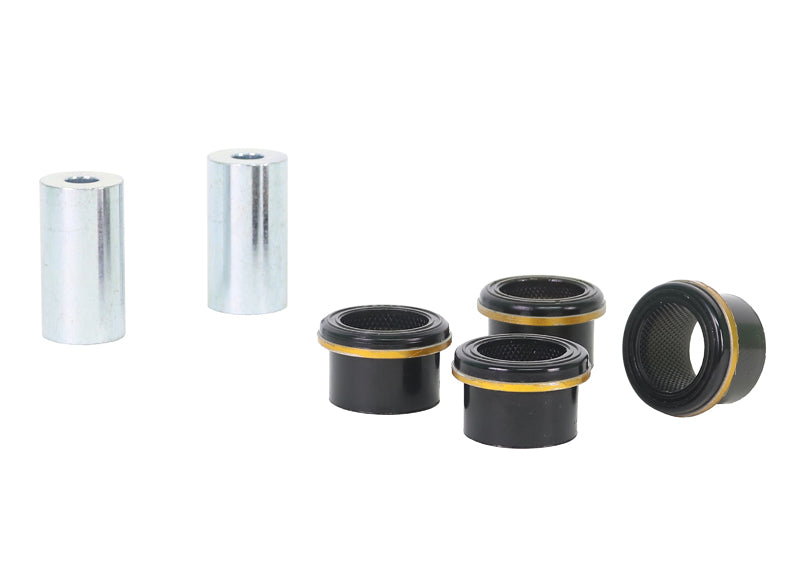

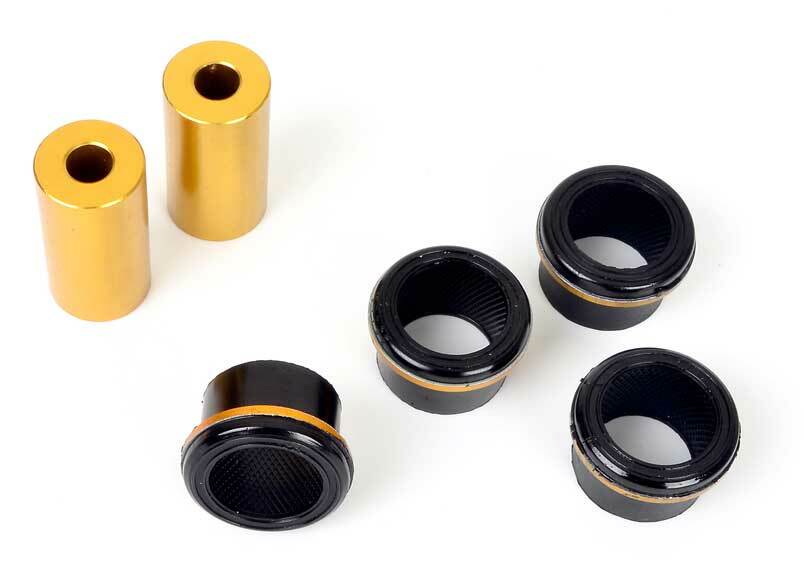

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2015 Subaru BRZ Series.Blue (ZC6). Whiteline part number: W0509. Whiteline's note for this fit: Recommended for motorsport use only. It goes on the front of the vehicle. In the box: 4 bushings and 2 tubes.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 2.5 hours of work listed. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Subaru BRZ: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Finish: A powder coated finish resists corrosion and wear.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Material: Built from polyurethane.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
Specifications
Part Number W0509
Part Name Control Arm Bushing
Vehicle 2015 Subaru BRZ Series.Blue
Chassis Code ZC6
Bushing 1 Inner Diameter 12.5 mm
Bushing 1 Outer Diameter 37.3 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Recommended for MOTORSPORT use only

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015SubaruBRZRWDRecommended for MOTORSPORT use only
